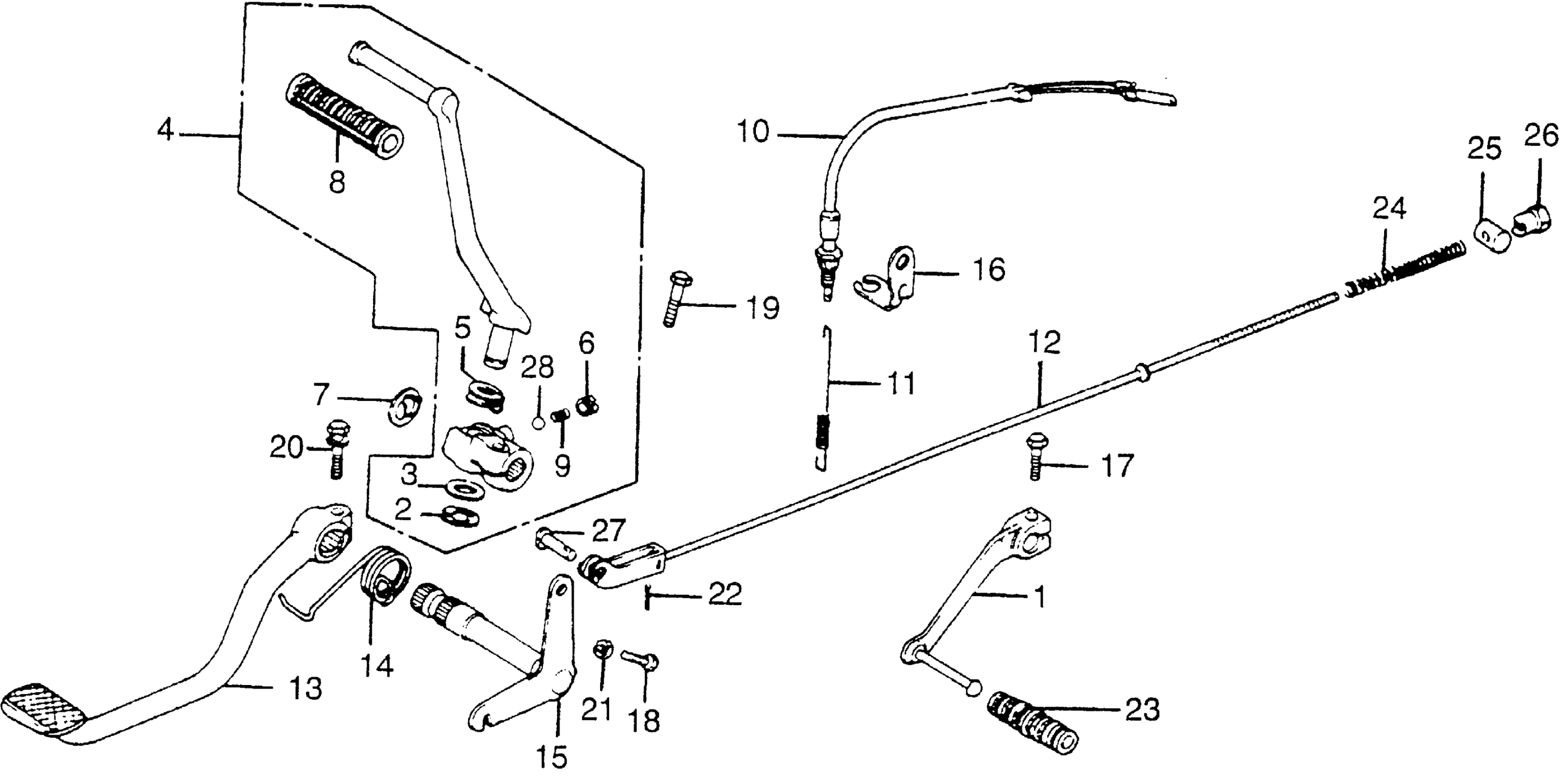

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 KICK ARM + PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-323-010

Unavailable

2

CLIP, KICK STARTER ARM

28293-333-000

$2.67

3

WASHER, KICK STARTER ARM (NOT AVAILABLE)

28294-333-000

Unavailable

4

ARM, KICK STARTER

28300-404-670

Unavailable

5

SPRING, KICK STARTER ARM

28302-310-300

Unavailable

6

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

7

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

8

RUBBER, KICK STARTER

28311-329-000

$5.54

9

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

10

SWITCH ASSY., RR. STOP This part replaces 35350-086-721.

35350-GB2-505

Unavailable

11

SPRING, STOP SWITCH

35357-011-000

$2.46

12

ROD, RR. BRAKE (NOT AVAILABLE)

43451-323-020

Unavailable

13

PEDAL, BRAKE (NOT AVAILABLE)

46500-404-670

Unavailable

14

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-404-670

Unavailable

15

SHAFT, RR. BRAKE PIVOT

46515-404-670

Unavailable

16

BRACKET, STOP SWITCH (NOT AVAILABLE)

50157-390-000

Unavailable

17

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

17

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

18

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$1.49

18

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

19

BOLT, HEX. (8X32) This part replaces 93200-08032-0A.

93201-08032-0A

Unavailable

19

BOLT, HEX. (8X32)

93201-08032-0A

Unavailable

20

BOLT-WASHER (8X28) (NOT AVAILABLE)

93482-08028-00

Unavailable

21

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

21

NUT, HEX. (6MM)

94002-06000-0S

$1.49

22

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

22

PIN, COTTER (1.6X25)

94201-16250

$1.49

23

RUBBER, SHIFT PEDAL

95011-40000

$1.49

24

SPRING A, BRAKE ROD

95014-73100

$1.49

25

JOINT, BRAKE ARM

95015-32001

$1.49

26

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

27

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

28

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
