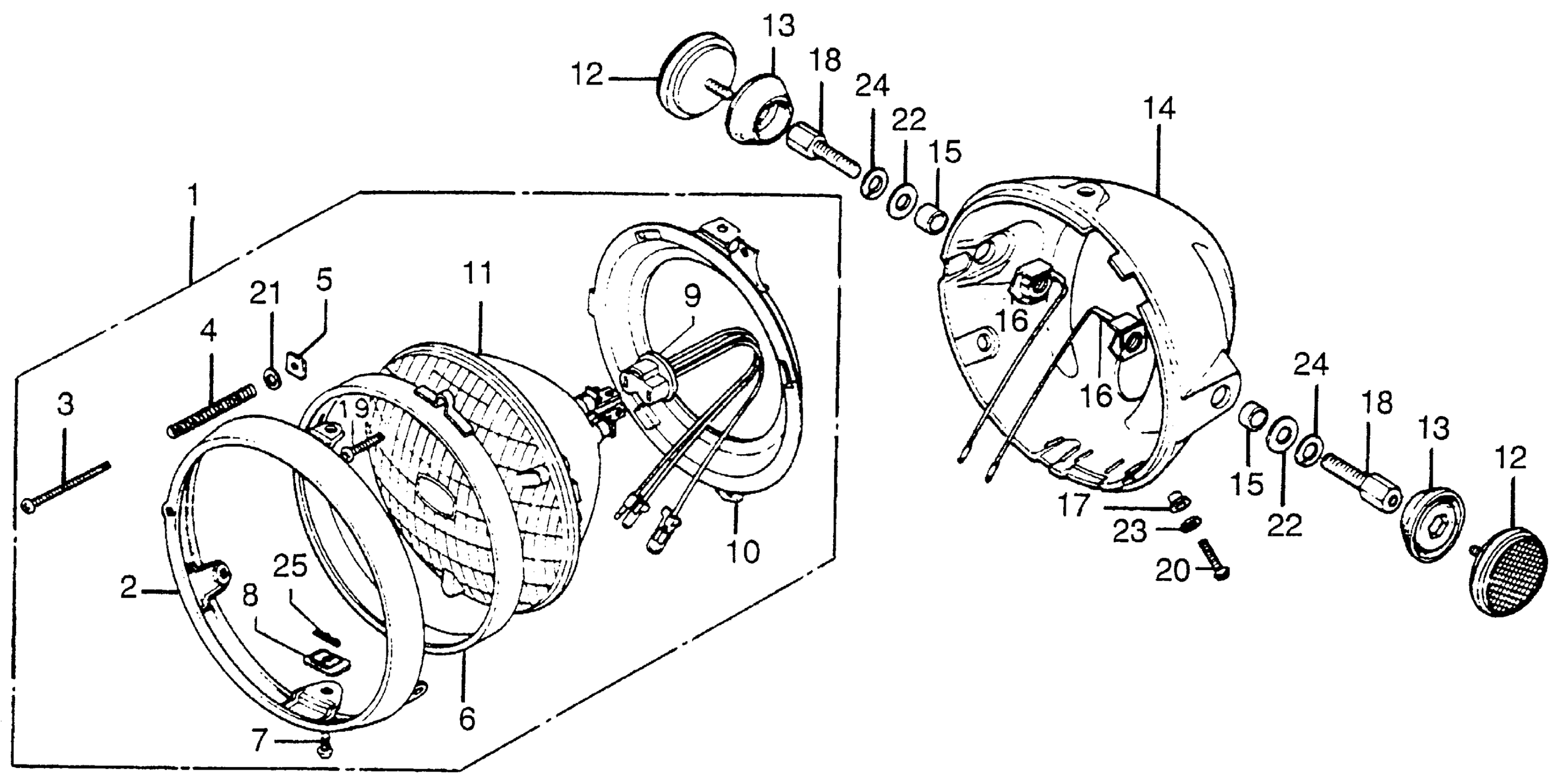

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-405-671

Unavailable

2

RIM, HEADLIGHT

33101-405-671

$71.39

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

RING, RETAINING

33121-405-671

Unavailable

7

SCREW, PAN (5X8)

93500-05008-0H

$1.49

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

SOCKET, HEADLIGHT (NOT AVAILABLE) This part replaces 33130-300-671.

33130-300-003

Unavailable

10

RING, SETTING (NOT AVAILABLE)

33153-375-671

Unavailable

11

SET UNIT,HEAD LIG This part replaces 33321-341-701.

33120-431-505

Unavailable

11

SET UNIT,HEAD LIG This part replaces 33321-371-672.

33120-431-505

Unavailable

12

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

13

BASE, FR. REFLECTOR

33743-375-000

Unavailable

14

CASE, HEADLIGHT *NH1* (BLACK)

61301-300-020B

Unavailable

15

COLLAR, HEADLIGHT CASE

61302-300-000

Unavailable

16

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

17

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

18

BOLT, HEADLIGHT STAY (NOT AVAILABLE)

90120-377-000

Unavailable

19

SCREW, PAN (3X8)

93500-03008-0A

$1.49

19

SCREW, PAN (3X8) This part replaces 93500-03008-1A.

93500-03008-0A

$1.49

20

SCREW, PAN (5X16)

93500-05016-0B

$1.49

21

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

22

WASHER, PLAIN (10MM)

94101-10000

$1.49

23

WASHER, SPRING (5MM)

94111-05000

$1.49

24

WASHER, SPRING (8MM)

94111-10000

$1.49
