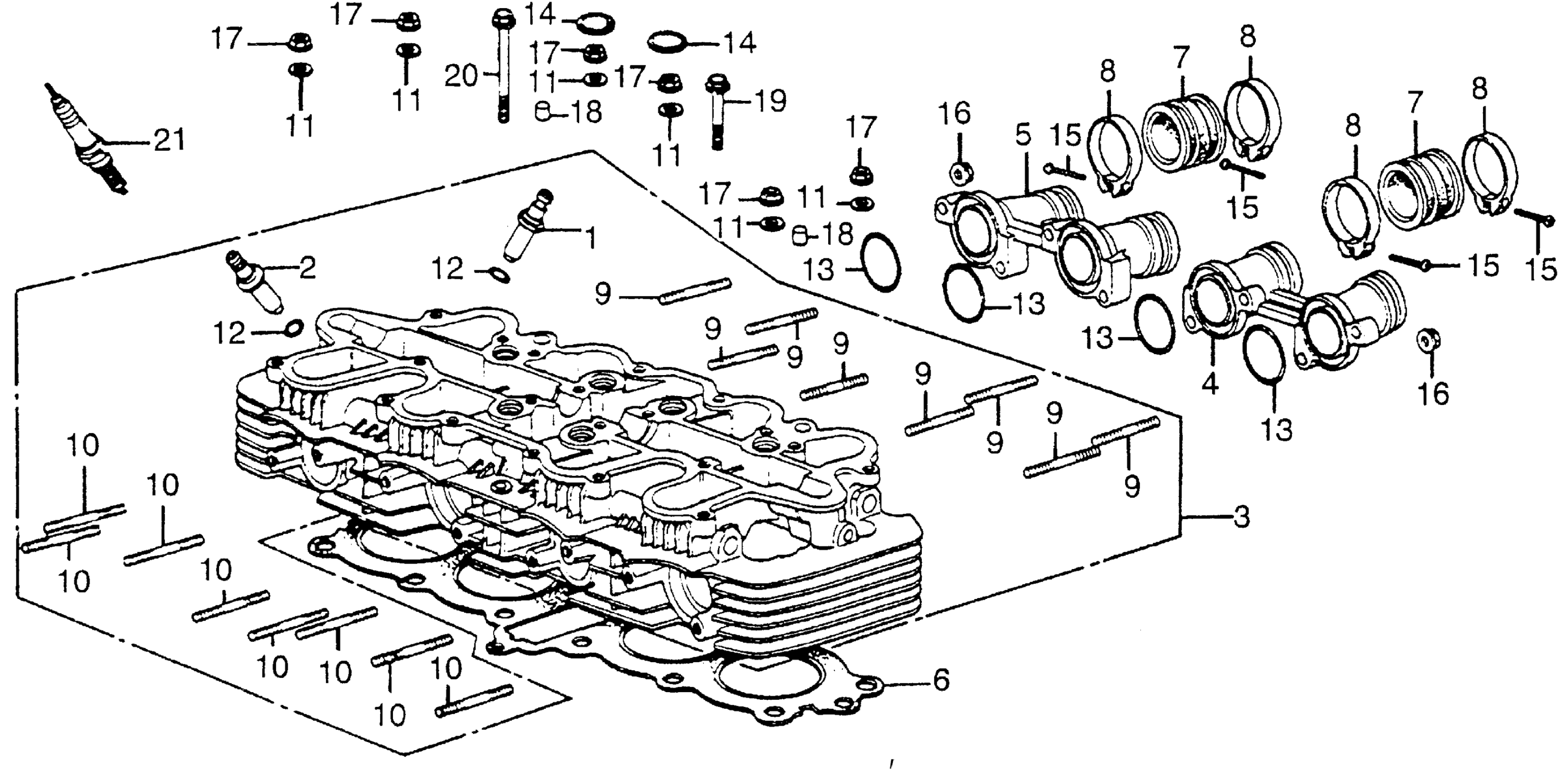

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-323-300.

12023-465-405

$17.36

1

GUIDE, VALVE

12023-465-405

$17.36

2

GUIDE, EX. VALVE This part replaces 12023-323-300.

12023-324-405

Unavailable

2

GUIDE, EX. VALVE

12023-324-405

Unavailable

3

CYLINDER HEAD

12200-374-000

Unavailable

4

MANIFOLD A, IN. (NOT AVAILABLE)

12241-404-000

Unavailable

5

MANIFOLD B, IN. (NOT AVAILABLE)

12242-404-000

$51.82

6

GASKET, CYLINDER HEAD This part replaces 12251-374-005.

12251-374-306

Unavailable

6

GASKET, CYLINDER HEAD

12251-374-306

Unavailable

7

INSULATOR, CARBURETOR

16211-404-000

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-230-000.

95018-46250

$7.30

9

BOLT, STUD (6X32) (NOT AVAILABLE)

90043-323-300

Unavailable

10

BOLT, STUD (6X40)

90044-323-300

$2.98

11

WASHER, THRUST (14MM)

90485-035-000

$2.72

12

O-RING (10X1.6)

91301-200-000

$2.87

13

O-RING (30.8MM)

91302-001-020

$3.46

14

RUBBER, SEALING

91318-300-013

$4.63

15

SCREW, PAN (5X20)

93500-05020-0A

$0.82

16

NUT, FLANGE (6MM)

94050-06000

$0.60

17

NUT, FLANGE (8MM)

94050-08000

$0.87

18

PIN B, DOWEL (10X16)

94302-10160

$1.63

19

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.88

19

BOLT, FLANGE (6X32)

95701-06032-00

$1.88

20

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.40

20

BOLT, FLANGE (6X65)

95701-06065-00

$1.40

21

SPARK PLUG (D7EA) (NGK)

98069-57717

$2.19

21

SPARK PLUG (X22ES-U) (DENSO)

98069-57727

Unavailable
