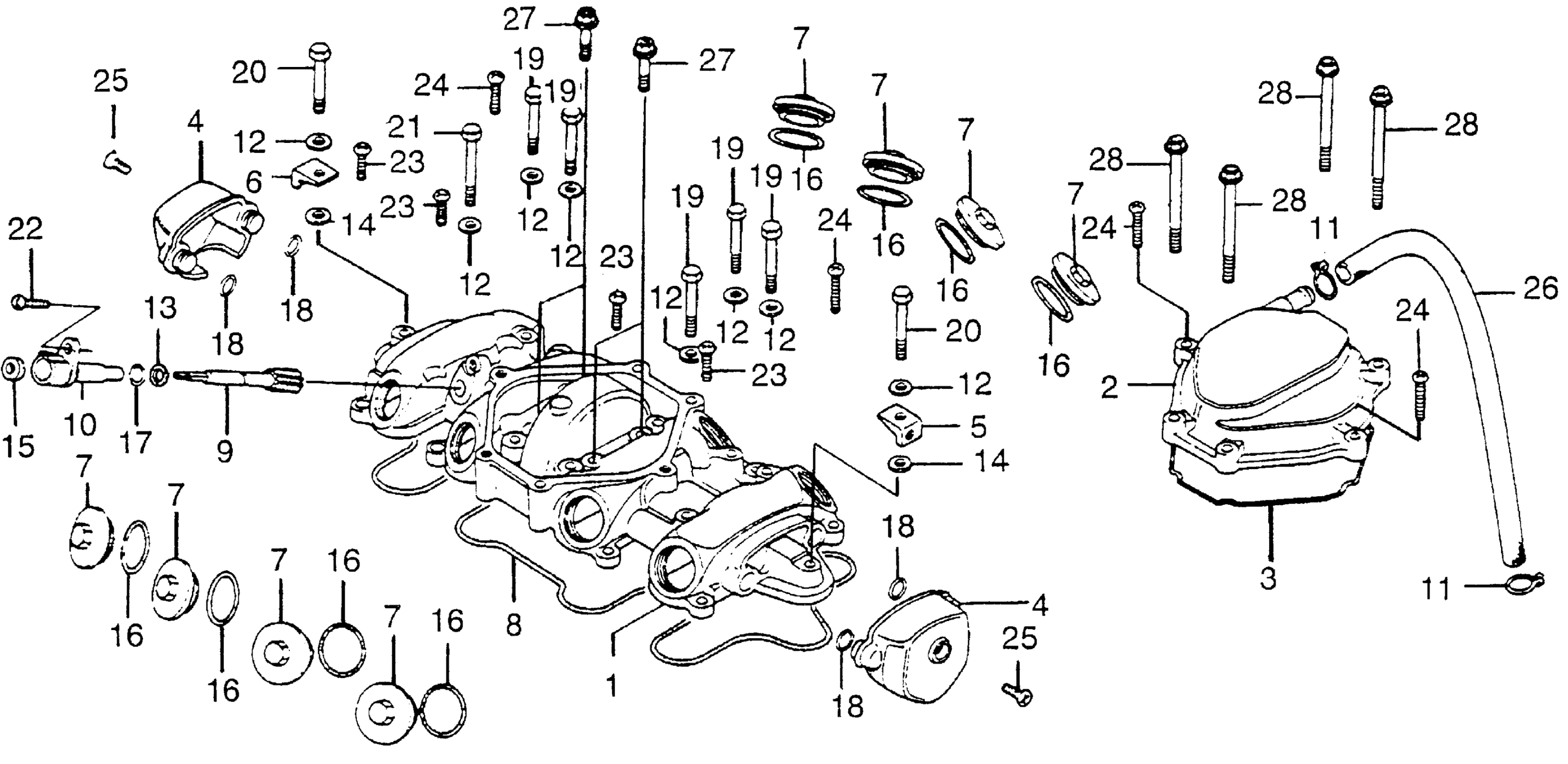

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12310-323-010

Unavailable

2

COVER, BREATHER (NOT AVAILABLE)

12320-374-000

Unavailable

3

GASKET, BREATHER COVER

12329-323-000

Unavailable

4

COVER, CYLINDER HEAD SIDE (NOT AVAILABLE)

12330-323-000

Unavailable

5

PLATE A, CYLINDER HEAD SIDE COVER SETTING (NOT AVAILABLE)

12335-323-000

Unavailable

6

PLATE B, CYLINDER HEAD SIDE COVER SETTING (NOT AVAILABLE)

12336-323-000

Unavailable

7

CAP, VALVE ADJ.

12361-300-000

Unavailable

8

GASKET, CYLINDER HEAD COVER

12391-323-000

Unavailable

9

GEAR, TACHOMETER (NOT AVAILABLE)

12431-323-000

Unavailable

10

CAP, TACHOMETER

12451-323-000

Unavailable

11

CLIP, BREATHER TUBE

15772-551-000

$2.05

11

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

12

WASHER, THRUST (11MM)

90425-300-000

$2.66

13

WASHER, THRUST (7MM)

90451-292-000

Unavailable

14

WASHER, THRUST (6.5MM) (NOT AVAILABLE)

90485-001-000

Unavailable

15

OIL SEAL (4.8X14.5X4) This part replaces 91211-286-003.

91256-096-651

$4.85

15

OIL SEAL (4.8X14.5X4)

91256-096-651

$4.85

16

O-RING (30.8MM)

91302-001-020

$3.75

17

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

17

O-RING (11X2.5)

91310-426-000

$5.19

17

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

18

O-RING (6X3)

91319-323-000

$2.84

19

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

19

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

19

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

20

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

20

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

20

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

21

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

21

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

21

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

21

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

21

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

22

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

22

SCREW, PAN (6X16)

93500-06016-0A

$1.49

23

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

23

SCREW, PAN (6X20)

93500-06020-0A

$1.49

24

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

25

SCREW, OVAL (6X10)

93700-06010-0B

$1.49

25

SCREW, OVAL (6X10) This part replaces 93700-06010-02.

93700-06010-0B

$1.49

26

BULK HOSE, VACUUM (12X1000) (12X420)

95005-12001-20M

$34.11

27

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

27

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

28

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

28

BOLT, FLANGE (6X65)

95701-06065-00

$1.51
