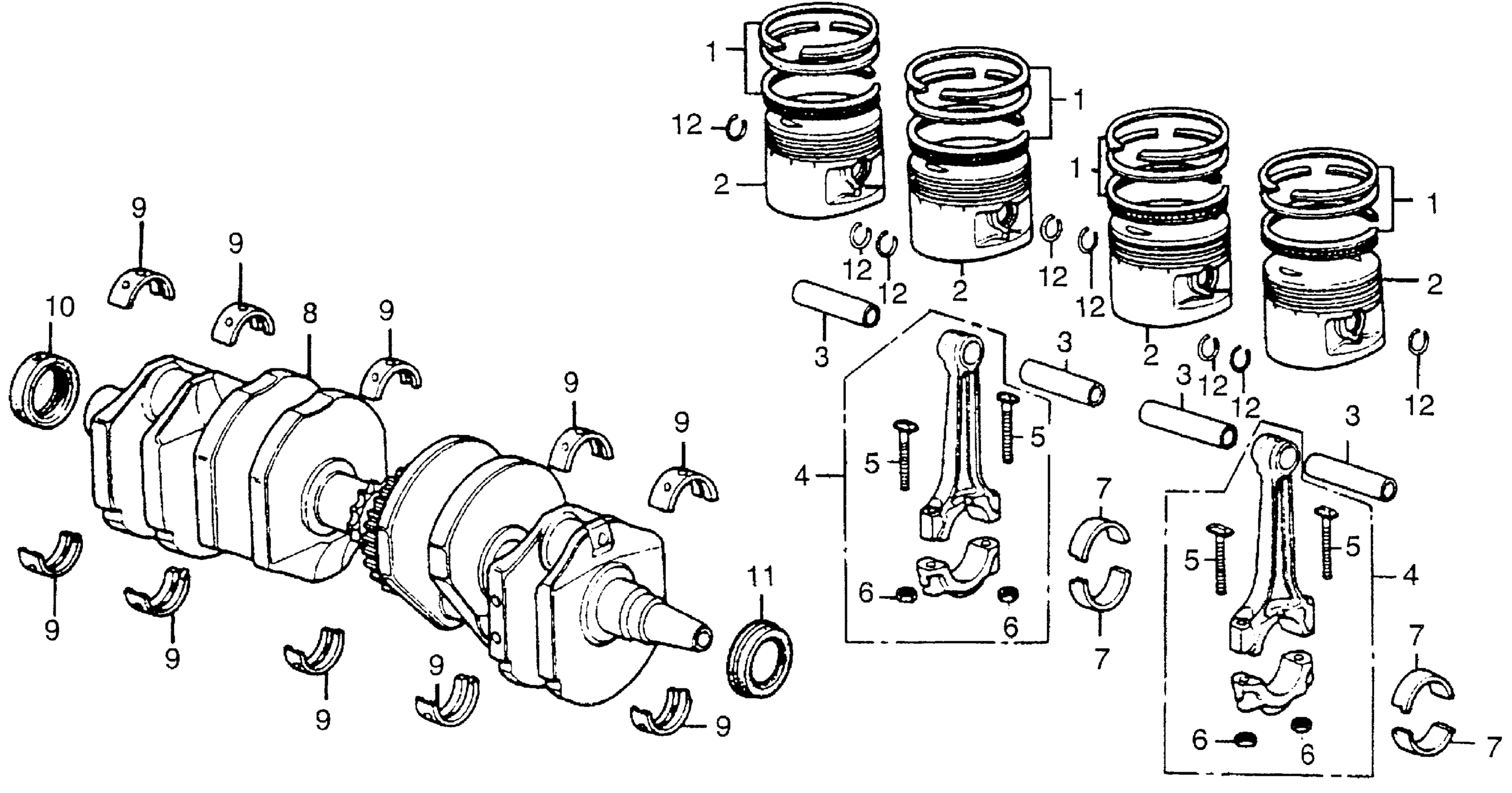

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (RIKEN)

13011-374-000

Unavailable

1

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-374-004.

13011-374-000

Unavailable

1

RING SET, PISTON (OS 0.25) | (Optional).

13021-374-000

Unavailable

1

RING SET, PISTON (OS 0.50) | (Optional).

13031-374-000

Unavailable

1

RING SET, PISTON (0.75) (NOT AVAILABLE) | (Optional).

13041-374-000

Unavailable

1

RING SET, PISTON (1.00) | (Optional).

13051-374-000

Unavailable

2

PISTON (STD)

13101-374-000

Unavailable

2

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-374-000

Unavailable

2

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-374-000

Unavailable

2

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-374-000

Unavailable

2

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-374-000

Unavailable

3

PIN, PISTON

13111-286-000

$26.03

3

PIN, PISTON

13111-440-000

$24.55

4

ROD D, CONNECTING (NOT AVAILABLE) This part replaces 13203-323-000.

13204-323-000

Unavailable

4

ROD D, CONNECTING (NOT AVAILABLE)

13204-323-000

Unavailable

4

ROD E, CONNECTING

13205-323-000

Unavailable

4

ROD F, CONNECTING (NOT AVAILABLE)

13206-323-000

Unavailable

4

ROD F, CONNECTING (NOT AVAILABLE) This part replaces 13207-323-000.

13206-323-000

Unavailable

5

BOLT, CONNECTING ROD | Use from Engine SN 2105219

13213-KV0-000

$5.90

5

BOLT, CONNECTING ROD (TOKAI) | Use up to Engine SN 2105218

13213-333-003

Unavailable

5

BOLT, CONNECTING ROD | Use from Engine SN 2105219 This part replaces 13213-410-003.

13213-KV0-000

$5.90

6

NUT, CONNECTING ROD (NOT AVAILABLE)

13214-300-000

Unavailable

7

BEARING A, CONNECTING ROD (BLACK) This part replaces 13215-323-003.

13215-426-003

Unavailable

7

BEARING A, CONNECTING ROD (BLACK)

13215-426-003

Unavailable

7

BEARING B, CONNECTING ROD (BROWN) This part replaces 13216-323-003.

13216-426-003

Unavailable

7

BEARING B, CONNECTING ROD (BROWN)

13216-426-003

Unavailable

7

BEARING C, CONNECTING ROD (GREEN) This part replaces 13217-323-003.

13217-426-003

Unavailable

7

BEARING D, CONNECTING ROD (YELLOW) This part replaces 13218-323-003.

13218-426-003

Unavailable

8

CRANKSHAFT (NOT AVAILABLE)

13300-323-000

Unavailable

9

BEARING A, CRANKSHAFT (NOT AVAILABLE)

13315-323-000

Unavailable

9

BEARING B, CRANKSHAFT

13316-323-000

Unavailable

9

BEARING C, CRANKSHAFT

13317-323-000

Unavailable

9

BEARING D, CRANKSHAFT (NOT AVAILABLE)

13318-323-000

Unavailable

10

OIL SEAL (30X42X8)

91201-300-003

$12.99

11

OIL SEAL (30X45X8)

91201-323-005

$14.97

12

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
