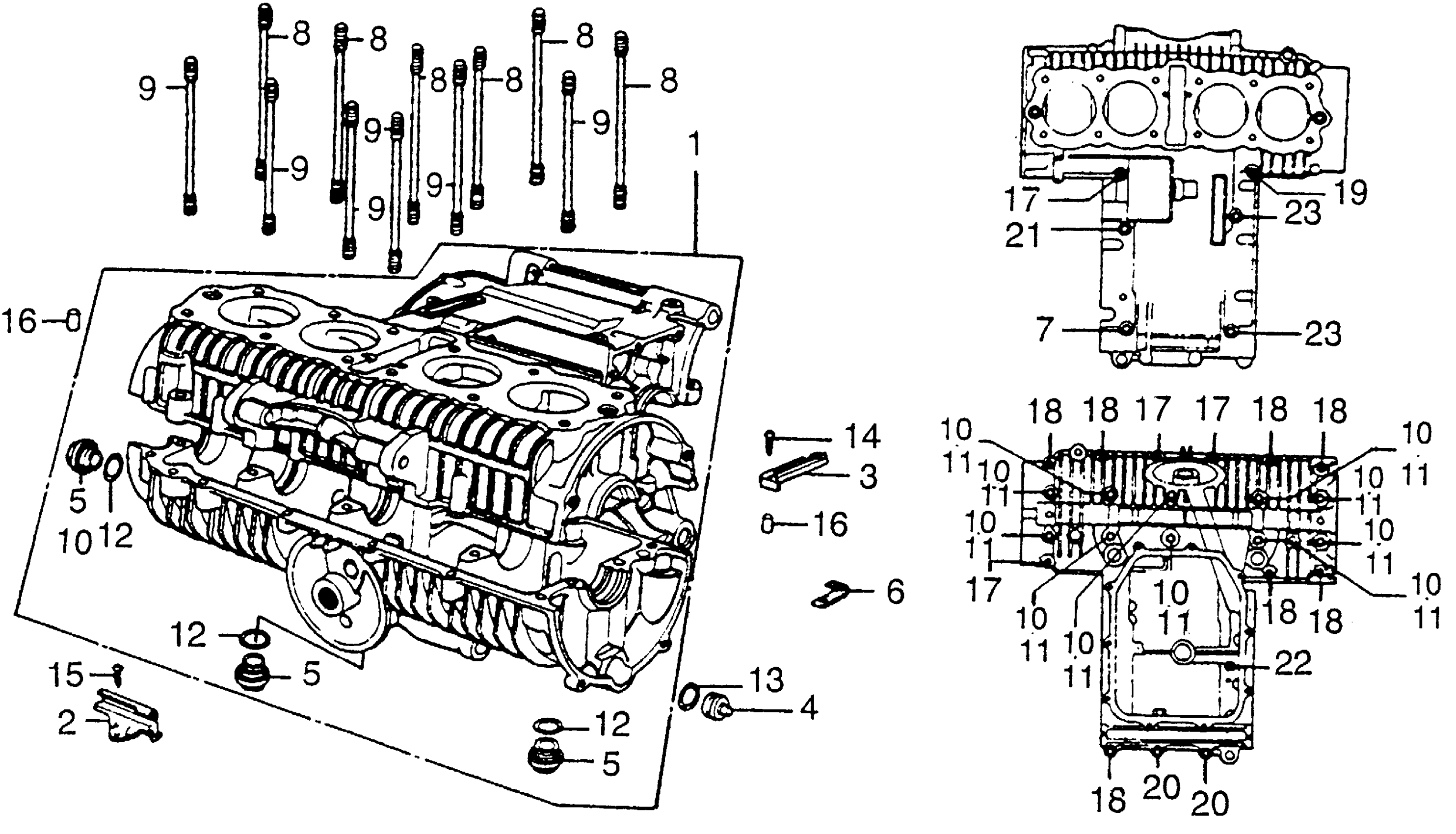

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 CRANKCASE Diagram

CRANKCASE SET

11000-374-000

Unavailable

GUIDE A, OIL (NOT AVAILABLE)

11202-323-000

Unavailable

GUIDE B, OIL (NOT AVAILABLE)

11203-323-010

Unavailable

PLUG, OIL PASSAGE (NOT AVAILABLE)

11207-323-000

Unavailable

CAP B, OIL PASSAGE (NOT AVAILABLE)

15332-300-000

Unavailable

CLAMP, CABLE

32111-323-000

$3.98

BOLT, FLANGE (8X145) (NOT AVAILABLE)

90011-323-000

Unavailable

BOLT A, CYLINDER STUD

90033-323-000

Unavailable

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90034-323-000

Unavailable

BOLT, HEX. (8X100) (NOT AVAILABLE)

90084-323-000

Unavailable

WASHER, THRUST (14MM)

90485-035-000

$2.92

O-RING (19.4X2.8) This part replaces 91315-044-000.

94608-40000

$1.49

O-RING (19.4X2.8)

94608-40000

$1.49

O-RING (13X2.5)

91319-300-000

$5.07

SCREW, TAPPING (5X16)

93901-25310

$1.49

SCREW, TAPPING (6X12)

93901-26110

$1.49

PIN B, DOWEL (10X16)

94302-10160

$1.69

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (6X100) This part replaces 95700-06100-00.

95701-06100-00

$2.79

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

BOLT, FLANGE (6X105) This part replaces 95700-06105-00.

95701-06105-00

$3.09

BOLT, FLANGE (6X105)

95701-06105-00

$3.09

BOLT, FLANGE (8X100) This part replaces 95700-08100-00.

95701-08100-00

$2.15

BOLT, FLANGE (8X100)

95701-08100-00

$2.15
