- CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082
CARBURETOR 78

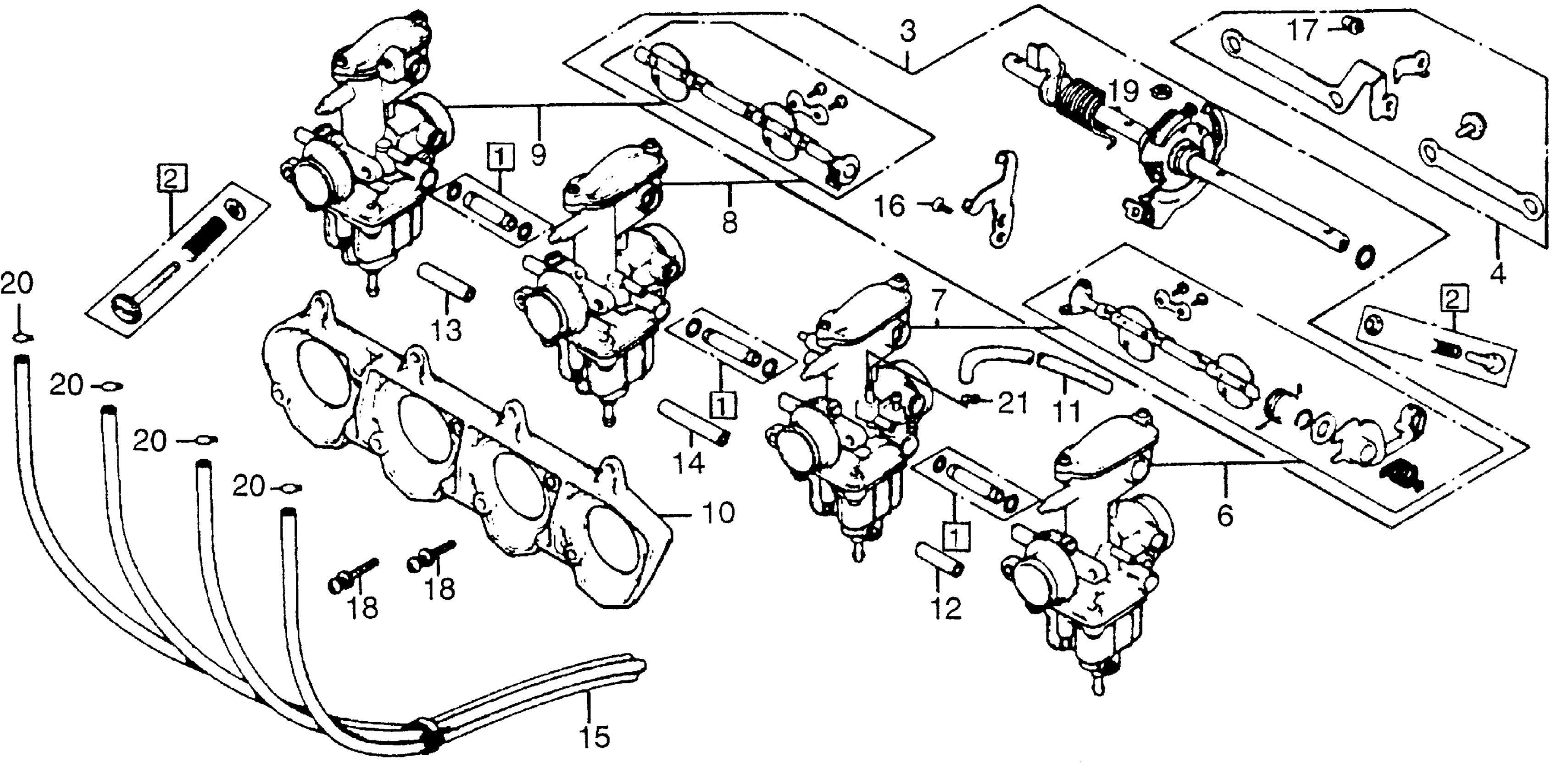

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 CARBURETOR 78 Diagram
#
Description
Price
1
JOINT SET, FUEL (NOT AVAILABLE)
16026-393-004
Unavailable
2
SCREW SET B (NOT AVAILABLE)
16028-393-014
Unavailable
3
LINK SET, THROTTLE
16032-404-425
Unavailable
4
PLATE SET, RR. STAY (NOT AVAILABLE)
16035-404-014
Unavailable
6
CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use from Engine SN PD46A C This part replaces 16101-404-325.
16101-404-355
Unavailable
6
CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use from Engine SN PD46A D
16101-404-355
Unavailable
7
CARBURETOR ASSY. 2 (NOT AVAILABLE) | Use from Engine SN PD46A C This part replaces 16102-404-325.
16102-404-355
Unavailable
7
CARBURETOR ASSY. 2 (NOT AVAILABLE) | Use from Engine SN PD46A D
16102-404-355
Unavailable
8
CARBURETOR ASSY. 3 (NOT AVAILABLE) | Use from Engine SN PD46A C This part replaces 16103-404-325.
16103-404-355
Unavailable
8
CARBURETOR ASSY. 3 (NOT AVAILABLE) | Use from Engine SN PD46A D
16103-404-355
Unavailable
9
CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use from Engine SN PD46A C This part replaces 16104-404-325.
16104-404-355
Unavailable
9
CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use from Engine SN PD46A D
16104-404-355
Unavailable
10
PLATE, STAY
16119-393-004
Unavailable
11
TUBE, AIR VENT (4.5X6X350) (NOT AVAILABLE)
16143-404-600
Unavailable
13
TUBE, AIR VENT JOINT (4.5X6X34) (NOT AVAILABLE)
16198-393-600
Unavailable
14
PIPE, RUBBER (NOT AVAILABLE)
16199-393-600
Unavailable
15
TUBE ASSY., OVERFLOW (NOT AVAILABLE)
16290-323-010
Unavailable
18
SCREW-WASHER (6X20)
93892-06020-08
Unavailable
