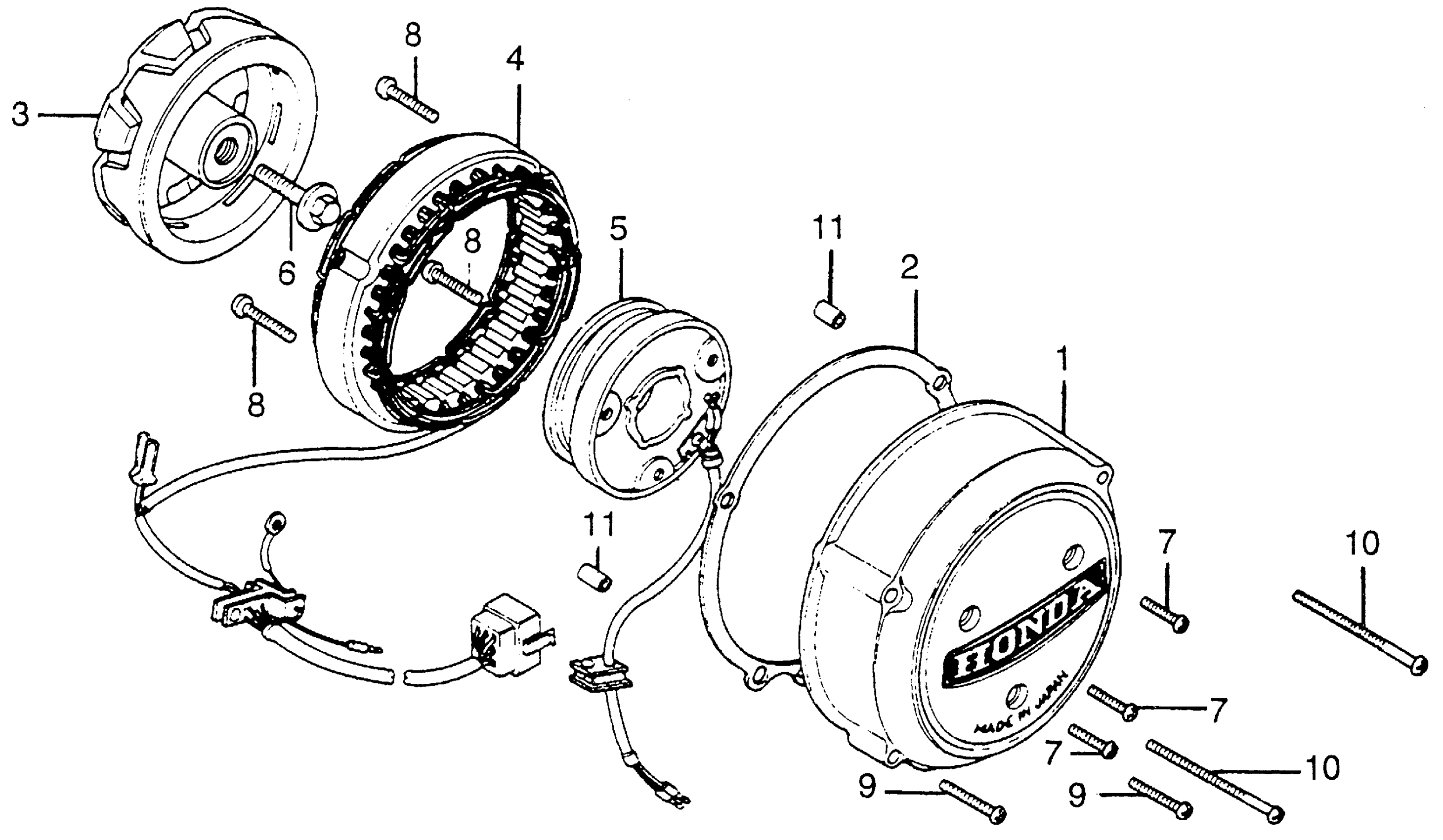

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 ALTERNATOR Diagram

COVER, ALTERNATOR (NOT AVAILABLE)

11631-404-000

Unavailable

GASKET, ALTERNATOR COVER (AS) This part replaces 11691-323-000.

11691-323-306

Unavailable

GASKET, ALTERNATOR COVER (AS)

11691-323-306

Unavailable

ROTOR (HITACHI) This part replaces 31101-323-005.

31101-404-831

Unavailable

ROTOR (HITACHI)

31101-404-831

Unavailable

STATOR (HITACHI) (NOT AVAILABLE)

31102-323-025

Unavailable

COIL, FIELD (NOT AVAILABLE)

31103-390-005

Unavailable

BOLT, UBS (10X32) This part replaces 90014-333-000.

90014-333-003

Unavailable

BOLT, UBS (10X32)

90014-333-003

Unavailable

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

SCREW, PAN (6X20)

93500-06020-0A

$1.49

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

SCREW, PAN (6X28)

93500-06028-0A

$1.49

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

SCREW, PAN (6X32)

93500-06032-0A

$1.49

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

SCREW, PAN (6X65)

93500-06065-0A

$1.53

PIN A, DOWEL (8X14)

94301-08140

$2.25
