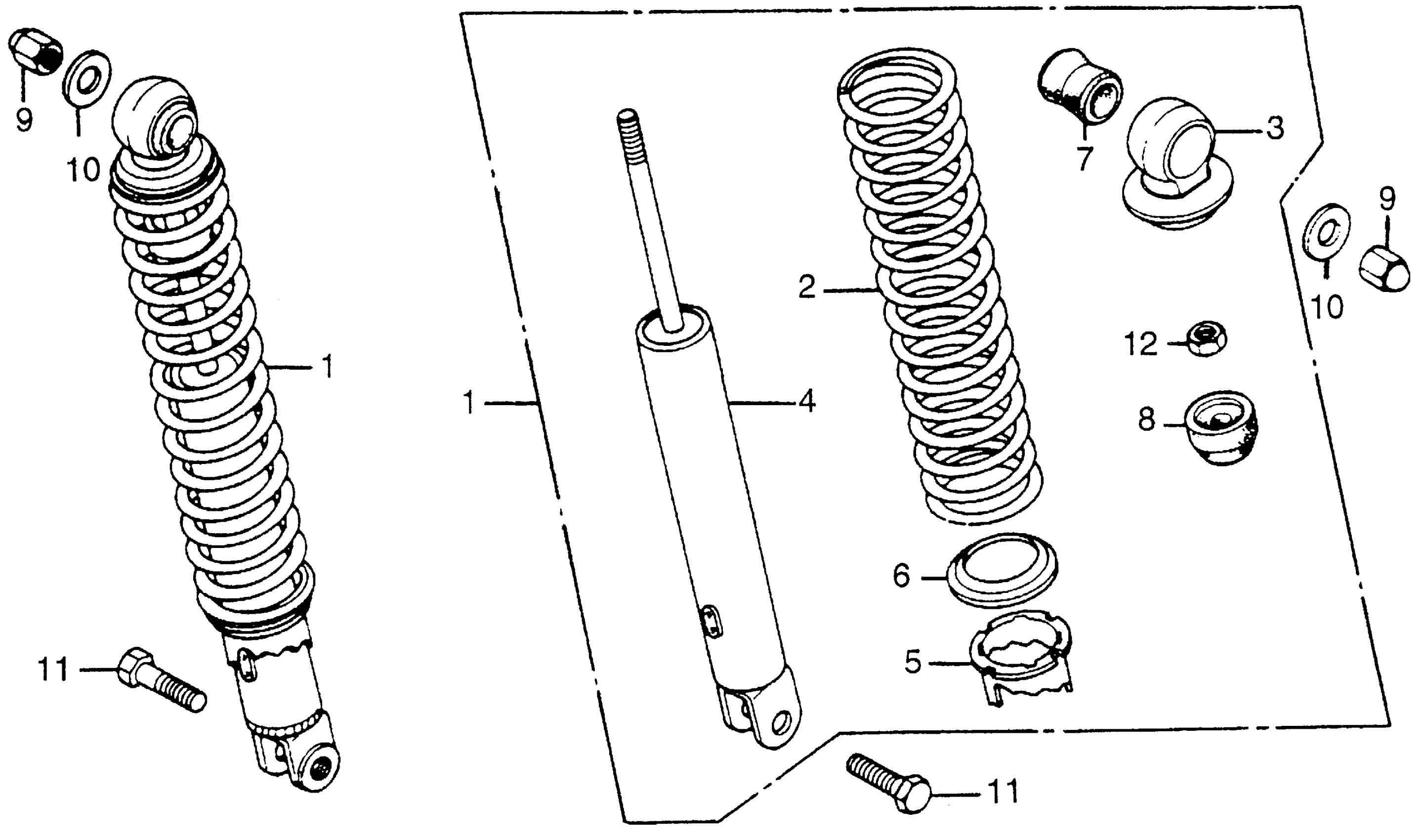

Honda CB550KA (77) 550 FOUR K, JPN, VIN# CB550K-2000007 TO CB550K-2015308 REAR SHOCK ABSORBER (2) Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) | Use from Frame SN 2020498

52400-404-013

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) | Use from Frame SN 2020498

52401-323-000

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE) | Use from Frame SN 2020498

52403-404-013

Unavailable

4

DAMPER, RR. (NOT AVAILABLE) | Use from Frame SN 2020498

52410-404-003

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE) | Use from Frame SN 2020498

52422-404-003

$18.64

6

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE) | Use from Frame SN 2020498

52458-329-000

Unavailable

7

RUBBER, JOINT | Use from Frame SN 2020498

52484-292-000

$5.87

8

RUBBER, STOPPER | Use from Frame SN 2020498

52517-404-003

$5.70

9

NUT, FLANGE (10MM) | Use from Frame SN 2020498

90309-315-000

$5.35

10

WASHER (10.3MM) | Use from Frame SN 2020498

90521-292-000

$3.42

11

BOLT, HEX. (10X32) | Use from Frame SN 2020498 This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

11

BOLT, HEX. (10X32) | Use from Frame SN 2020498 This part replaces 93100-10032-0A.

93101-10032-0A

Unavailable

12

NUT, HEX. (10MM) | Use from Frame SN 2020498

94002-10000-0S

$4.06
