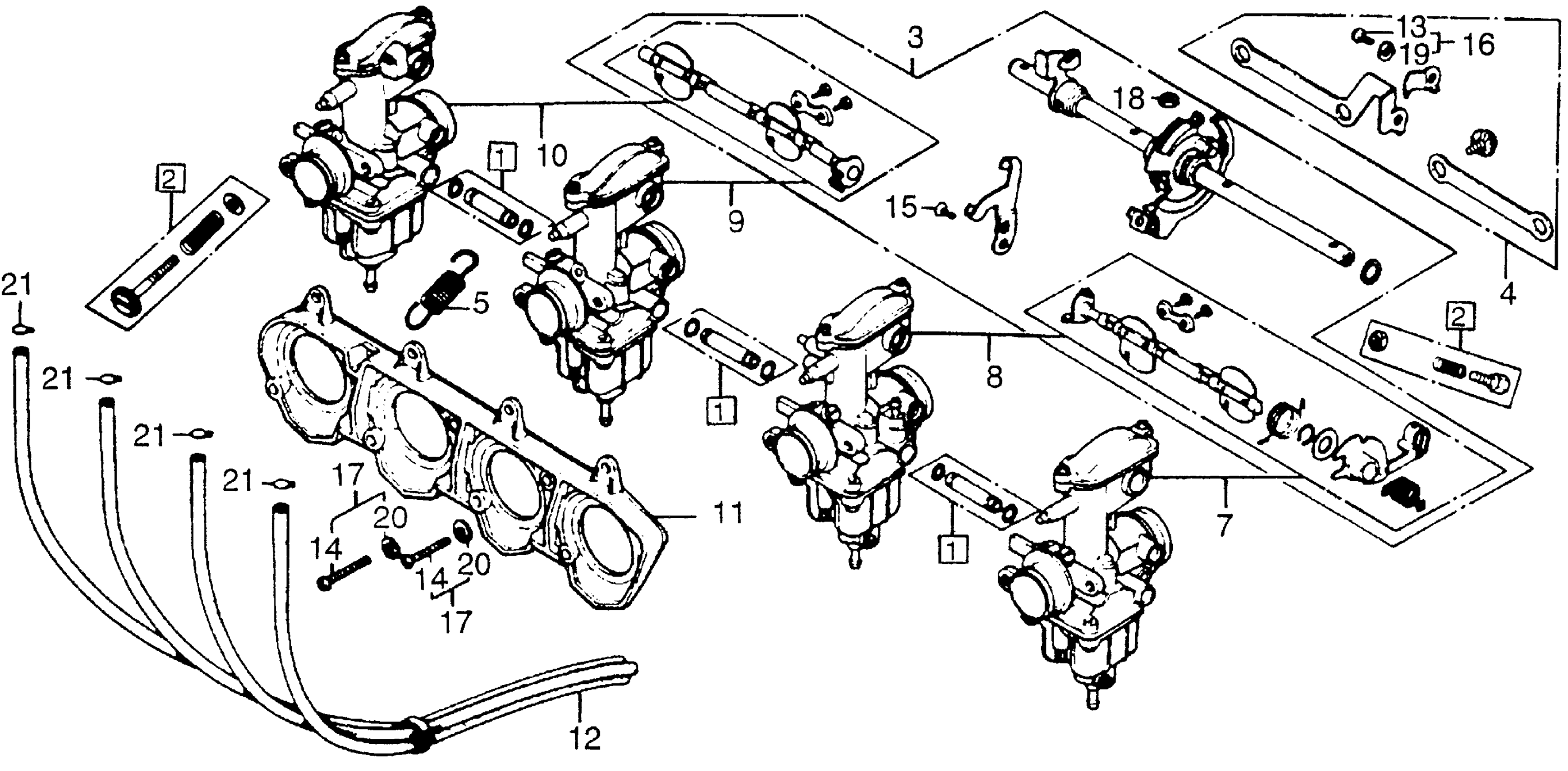

Honda CB550KA (77) 550 FOUR K, JPN, VIN# CB550K-2000007 TO CB550K-2015308 CARBURETOR 77 Diagram

#

Description
Price

1

JOINT SET, FUEL (NOT AVAILABLE)

16026-393-004

Unavailable

2

SCREW SET B (NOT AVAILABLE) | Use up to Engine SN PD46A A

16028-393-004

Unavailable

2

SCREW SET B (NOT AVAILABLE) | Use from Engine SN PD46A B

16028-393-014

Unavailable

3

LINK SET, THROTTLE | Use up to Engine SN PD46A A

16032-404-305

Unavailable

3

LINK SET, THROTTLE | Use from Engine SN PD46A B to PD46A B

16032-404-315

Unavailable

3

LINK SET, THROTTLE | Use from Engine SN PD46A C

16032-404-415

Unavailable

4

PLATE SET, RR. STAY | Use up to Engine SN PD46A A

16035-404-004

Unavailable

4

PLATE SET, RR. STAY (NOT AVAILABLE) | Use from Engine SN PD46A B

16035-404-014

Unavailable

5

SPRING SET, THROTTLE RETURN

16036-393-004

Unavailable

7

CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use up to Engine SN PD46A A

16101-404-305

Unavailable

7

CARBURETOR ASSY. 1 | Use from Engine SN PD46A B to PD46A B

16101-404-315

Unavailable

7

CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use from Engine SN PD46A C to PD46A C This part replaces 16101-404-325.

16101-404-355

Unavailable

7

CARBURETOR ASSY. 1 (NOT AVAILABLE) | Use from Engine SN PD46A C to PD46A C

16101-404-355

Unavailable

8

CARBURETOR ASSY. 2 | Use up to Engine SN PD46A A

16102-404-305

Unavailable

8

CARBURETOR ASSY. 2 | Use from Engine SN PD46A B to PD46A B

16102-404-315

Unavailable

8

CARBURETOR ASSY. 2 (NOT AVAILABLE) | Use from Engine SN PD46A C to PD46A C This part replaces 16102-404-325.

16102-404-355

Unavailable

8

CARBURETOR ASSY. 2 (NOT AVAILABLE) | Use from Engine SN PD46A C to PD46A C

16102-404-355

Unavailable

9

CARBURETOR ASSY. 3 | Use up to Engine SN PD46A A

16103-404-305

Unavailable

9

CARBURETOR ASSY. 3 | Use from Engine SN PD46A B to PD46A B

16103-404-315

Unavailable

9

CARBURETOR ASSY. 3 (NOT AVAILABLE) | Use from Engine SN PD46A C to PD46A C This part replaces 16103-404-325.

16103-404-355

Unavailable

9

CARBURETOR ASSY. 3 (NOT AVAILABLE) | Use from Engine SN PD46A C to PD46A C

16103-404-355

Unavailable

10

CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use up to Engine SN PD46A A

16104-404-305

Unavailable

10

CARBURETOR ASSY. 4 | Use from Engine SN PD46A B to PD46A B

16104-404-315

Unavailable

10

CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use from Engine SN PD46A C to PD46A C This part replaces 16104-404-325.

16104-404-355

Unavailable

10

CARBURETOR ASSY. 4 (NOT AVAILABLE) | Use from Engine SN PD46A C to PD46A C

16104-404-355

Unavailable

11

PLATE, STAY

16119-393-004

Unavailable

12

TUBE ASSY., OVERFLOW (NOT AVAILABLE)

16290-323-010

Unavailable

13

SCREW, PAN (4X10) | Use up to Engine SN PD46A B

93500-04010-0H

$1.49

14

SCREW, PAN (6X20) | Use up to Engine SN PD46A B

93500-06020-0H

$1.49

14

SCREW, PAN (6X20) | Use up to Engine SN PD46A B This part replaces 93500-06020-08.

93500-06020-0H

$1.49

15

SCREW, FLAT (5X10)

93600-05010-0H

$1.49

16

SCREW-WASHER (4X10) | Use from Engine SN PD46A C

93892-04010-08

$1.49

17

SCREW-WASHER (6X20) | Use from Engine SN PD46A C

93892-06020-08

Unavailable

18

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

18

NUT, HEX. (6MM)

94001-06080-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

19

WASHER, SPRING (4MM) | Use up to Engine SN PD46A B

94111-04800

$1.49

20

WASHER, SPRING (6MM) | Use up to Engine SN PD46A B

94111-06800

$1.49

21

CLIP, TUBE (B7)

95002-02070

$1.80
