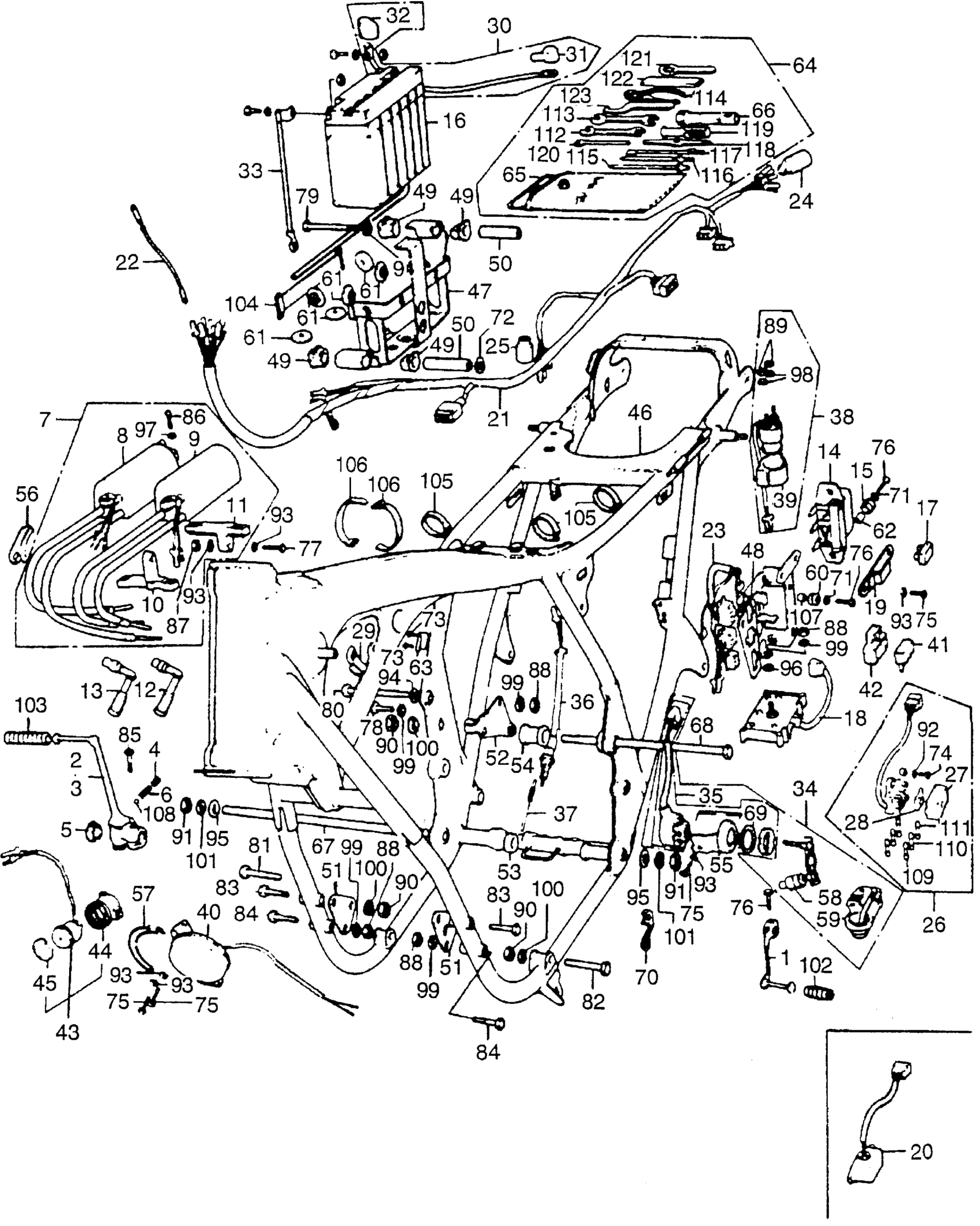

Honda CB550KA (76) 550 FOUR, JPN, VIN# CB550K-1230001 FRAME + WIRE HARNESS Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-323-010

Unavailable

ARM, KICK STARTER This part replaces 28300-374-000.

28300-404-670

Unavailable

ARM, KICK STARTER

28300-404-670

Unavailable

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-323-023.

30500-404-000

Unavailable

COIL, R. IGNITION (NOT AVAILABLE)

30501-323-003

Unavailable

COIL, L. IGNITION (NOT AVAILABLE)

30502-323-003

Unavailable

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

BRACKET B, IGNITION COIL (NOT AVAILABLE)

30512-323-000

Unavailable

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

CAP ASSY. This part replaces 30700-300-010.

30700-GAR-003

$19.81

CAP ASSY. This part replaces 30700-405-153.

30700-GAR-003

$19.81

CAP ASSY. This part replaces 30700-405-163.

30700-GAR-003

$19.81

CAP ASSY., NOISE SUPPRESSOR | Use up to Frame SN 1241400 This part replaces 30701-323-013.

30700-MC8-000

Unavailable

CAP ASSY., NOISE SUPPRESSOR

30700-MC8-000

Unavailable

CAP ASSY., NOISE SUPPRESSOR | Use up to Frame SN 1241400

30700-MC8-000

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-153.

30700-MC8-000

Unavailable

CAP ASSY., NOISE SUPPRESSOR | Use up to Frame SN 1241400 This part replaces 30700-390-153.

30700-MC8-000

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-163.

30700-MC8-000

Unavailable

CAP ASSY., NOISE SUPPRESSOR | Use up to Frame SN 1241400 This part replaces 30700-390-163.

30700-MC8-000

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30701-323-023.

30700-MC8-000

Unavailable

REGULATOR ASSY. (HITACHI)

31400-300-035

Unavailable

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

BATTERY (12V12) This part replaces 98203-22250.

31500-460-672AH

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

RECTIFIER ASSY. This part replaces 31700-323-015.

31700-333-008

Unavailable

RECTIFIER ASSY.

31700-333-008

Unavailable

STAY, DIODE (NOT AVAILABLE)

31706-341-900

Unavailable

WIRE HARNESS (NOT AVAILABLE)

32100-374-700

Unavailable

CABLE A, SUB (NOT AVAILABLE)

32101-385-000

Unavailable

SUB-WIRE HARNESS (NOT AVAILABLE)

32105-374-700

Unavailable

COVER, WIRE HARNESS CONNECTOR

32108-046-750

$3.87

COVER, WIRE HARNESS CONNECTOR (NOT AVAILABLE)

32108-323-300

Unavailable

BOX ASSY., FUSE

32110-341-702

Unavailable

COVER, FUSE BOX (NOT AVAILABLE)

32117-341-702

Unavailable

FUSE, GROMMET (NOT AVAILABLE)

32118-341-702

Unavailable

CLIP, WIRE HARNESS

32171-323-000

Unavailable

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-323-000

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32412-323-000

Unavailable

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-323-000

Unavailable

SWITCH KIT, MAIN This part replaces 35010-374-670.

35010-374-671

$172.93

SWITCH KIT, MAIN

35010-374-671

$172.93

SWITCH ASSY., COMBINATION (TOYO) This part replaces 35100-374-000.

35100-374-007

Unavailable

SWITCH ASSY., COMBINATION (TOYO)

35100-374-007

Unavailable

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

SPRING, STOP SWITCH

35357-011-000

$2.46

SWITCH ASSY., STARTER MAGNETIC

35850-371-670

Unavailable

SUSPENSION, MAGNETIC SWITCH (NOT AVAILABLE)

35856-323-000

Unavailable

HORN ASSY. (MITSUBA)

38100-300-023

Unavailable

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE)

38400-341-674

Unavailable

COVER, BUZZER (NOT AVAILABLE)

38402-341-671

Unavailable

PLATE, TURN SIGNAL BUZZER

38403-341-672

$5.08

FRAME *NH1* (BLACK)

50100-374-710ZA

Unavailable

BOX, BATTERY (NOT AVAILABLE)

50325-323-040

Unavailable

PLATE, ELECTRIC BASE

50330-374-000

Unavailable

RUBBER, BATTERY BOX (NOT AVAILABLE)

50331-323-000

Unavailable

COLLAR, BATTERY BOX (NOT AVAILABLE)

50332-323-000

Unavailable

BRACKET, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-323-010B

Unavailable

BRACKET, RR. ENGINE HANGER (NOT AVAILABLE)

50356-374-010

Unavailable

COLLAR, R. ENGINE SIDE (LOWER) (NOT AVAILABLE)

50357-323-010

Unavailable

COLLAR, L. ENGINE SIDE (UPPER) (NOT AVAILABLE)

50359-323-010

Unavailable

BRACKET, MAIN SWITCH (NOT AVAILABLE)

50375-323-020

Unavailable

PROTECTOR, IGNITION COIL CABLE (NOT AVAILABLE)

50400-323-000

Unavailable

CLAMP, TACHOMETER CABLE This part replaces 50462-323-000.

50462-323-010

Unavailable

CLAMP, TACHOMETER CABLE

50462-323-010

Unavailable

LOCK, HANDLEBAR

35010-230-010

Unavailable

LOCK, HANDLEBAR This part replaces 53600-230-000.

35010-230-010

Unavailable

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-347-003.

77230-107-711

Unavailable

RUBBER A, RR. FENDER

80105-061-000

$4.01

RUBBER, BATTERY BOX

83618-323-000

$2.47

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-374-670

Unavailable

TOOL SET (NOT AVAILABLE) This part replaces 89010-323-010.

89010-390-000

Unavailable

TOOL SET (NOT AVAILABLE)

89010-390-000

Unavailable

BAG, TOOL

89101-ME5-670

Unavailable

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable

WRENCH, SPARK PLUG

89216-323-000

Unavailable

BOLT, RR. ENGINE HANGER (LOWER) (NOT AVAILABLE)

90107-323-000

Unavailable

BOLT, RR. ENGINE HANGER (UPPER) (NOT AVAILABLE)

90108-323-000

Unavailable

WASHER (25X33) This part replaces 90501-374-003.

90501-374-007

Unavailable

GUIDE, BREATHER (NOT AVAILABLE)

90514-374-700

Unavailable

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

WASHER (18MM)

90581-831-650

$1.87

WASHER (8MM) (NOT AVAILABLE)

90582-703-000

Unavailable

SCREW, RIVET (1.5X5) (NOT AVAILABLE)

90841-001-000

$1.51

BOLT, HEX. (5X14) This part replaces 92000-05014-0A.

92101-05014-0A

$1.49

BOLT, HEX. (5X14)

92101-05014-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

BOLT, HEX. (8X65) This part replaces 92000-08065-0A.

92101-08065-0A

$2.25

BOLT, HEX. (8X65)

92101-08065-0A

$2.25

This part replaces 92000-08100-0A.

92101-08100-0A

Unavailable

BOLT, HEX. (10X50) (SOURCE: VINTAGE PARTS INC.)

92200-10050-0A

Unavailable

BOLT, HEX. (10X80)

92200-10080-0A

Unavailable

BOLT, HEX. (8X50) This part replaces 93000-08050-0A.

93101-08050-0A

Unavailable

BOLT, HEX. (8X55) (NOT AVAILABLE)

93000-08055-0A

Unavailable

BOLT, HEX. (8X32) This part replaces 93200-08032-0A.

93201-08032-0A

Unavailable

BOLT, HEX. (8X32)

93201-08032-0A

Unavailable

SCREW, PAN (5X20)

93500-05020-0A

$1.49

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

NUT, HEX. (10MM)

94030-10000

$1.49

NUT, HEX. (12MM)

94030-12000

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (12MM)

94101-12000

$1.49

WASHER, PLAIN (8MM)

94102-08000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

WASHER, SPRING (12MM)

94111-12000

$1.49

RUBBER, SHIFT PEDAL

95011-40000

$1.49

RUBBER, KICK STARTER

28311-329-000

$5.54

BAND F, BATTERY This part replaces 50322-300-010.

95012-17001

$7.23

BAND F, BATTERY This part replaces 95012-17000.

95012-17001

$7.23

BAND F, BATTERY

95012-17001

$7.23

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

BAND A2, CABLE

95014-61200

$2.33

COLLAR A (6.3MM) (NOT AVAILABLE)

95020-61630

Unavailable

BALL, STEEL (#10) (5/16)

96211-10000

$1.49

FUSE A (5A)

98200-10500

$1.49

FUSE A (7A)

98200-10700

$1.49

FUSE A (15A)

98200-11500

$1.49

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

LEVER, TIRE

99003-40000

$1.49

GRIP

99003-50000

$3.27

BAR B, HANDLE

99005-02000

$2.52

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

WRENCH, EYE (26MM) (NOT AVAILABLE)

99006-26000

Unavailable

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40
