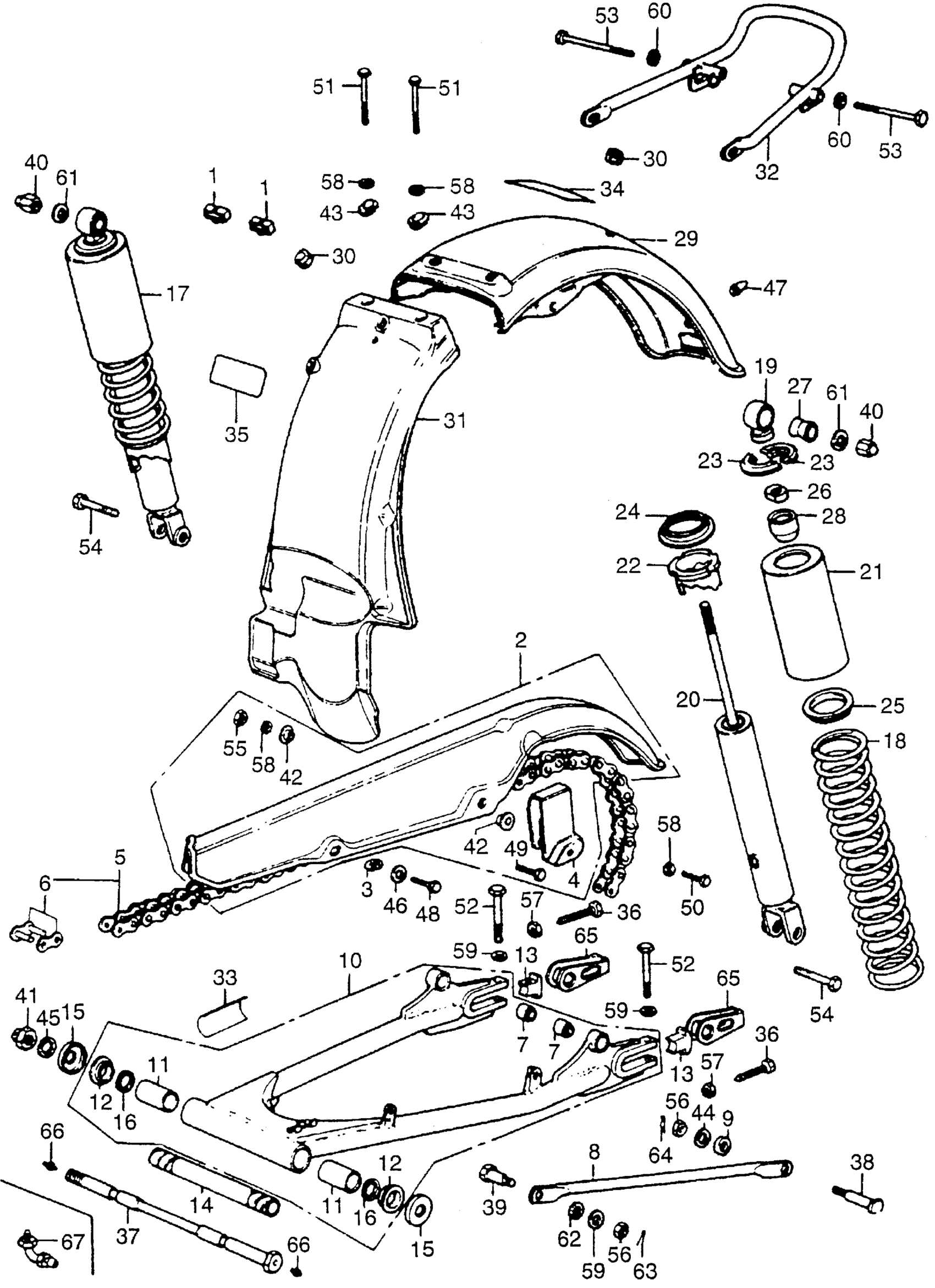

Honda CB550K1A MOTORCYCLE, JPN, VIN# CB550K-1200001 SWINGARM + REAR SHOCK ABSORBER Diagram

GROMMET, CABLE

32985-300-000

$3.35

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE)

40510-323-000B

Unavailable

COLLAR, CHAIN CASE

40511-300-000

Unavailable

PLATE, DRIVE CHAIN CASE

40512-300-000

Unavailable

CHAIN, DRIVE (100L) (DAIDO)

40530-341-305

Unavailable

MASTER LINK (STAKING TYPE) (NOT AVAILABLE)

40531-341-305

Unavailable

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-340-000

Unavailable

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

SWINGARM, RR. *NH1* (BLACK)

52100-323-040B

Unavailable

BUSH, RR. SWINGARM PIVOT

52108-300-300

Unavailable

BUSH, RR. SWINGARM PIVOT THRUST

52109-283-300

$14.64

STOPPER, CHAIN ADJUSTER (NOT AVAILABLE)

52136-300-000

$12.70

COLLAR, RR. SWINGARM CENTER

52141-300-000

Unavailable

CAP, DUST SEAL

52144-283-010

$4.66

RING, RR. SWINGARM FELT

52145-283-000

Unavailable

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) This part replaces 52400-323-670XW.

52400-390-681XW

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-323-000

Unavailable

JOINT (UPPER) (NOT AVAILABLE)

52403-312-000

$18.07

DAMPER, RR. (NOT AVAILABLE)

52410-323-670

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52421-300-000XW

Unavailable

ADJUSTER, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)

52422-329-000

Unavailable

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE)

52459-312-003

Unavailable

NUT, LOCK (10MM) (NOT AVAILABLE)

52482-312-000

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

RUBBER, STOPPER (NOT AVAILABLE) This part replaces 52517-312-000.

52517-358-771

Unavailable

FENDER A, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

80100-323-670XW

Unavailable

GROMMET, CABLE

80102-323-000

Unavailable

FENDER B ASSY., RR.

80103-323-000

Unavailable

BUMPER, RR. (NOT AVAILABLE)

84101-374-670

Unavailable

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

MARK, TIRE CAUTION (NOT AVAILABLE) | Use up to Frame SN 1211679

87507-374-670

Unavailable

MARK, TIRE CAUTION (NOT AVAILABLE) | Use from Frame SN 1211680

87507-374-671

Unavailable

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-300-000

Unavailable

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90127-323-000

Unavailable

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

NUT, FLANGE (10MM)

90309-315-000

$5.35

NUT, LOCK (14MM)

90354-268-000

$6.78

WASHER (6X20)

90512-300-000

$3.08

WASHER (6X9)

90513-323-000

$1.84

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

WASHER (18MM)

90581-831-650

$1.87

PLUG, CONE (NOT AVAILABLE)

90899-323-610

Unavailable

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

BOLT, HEX. (8X80) (NOT AVAILABLE)

93000-08080-0B

Unavailable

BOLT, HEX. (10X32) This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

BOLT, HEX. (10X32) This part replaces 93100-10032-0A.

93101-10032-0A

Unavailable

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (8MM)

94101-08200

$1.49

WASHER, PLAIN (10MM)

94101-10200

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49

ADJUSTER K, CHAIN

95014-19000

$19.86

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

FITTING, GREASE (A.45)

96201-30001

$1.49
