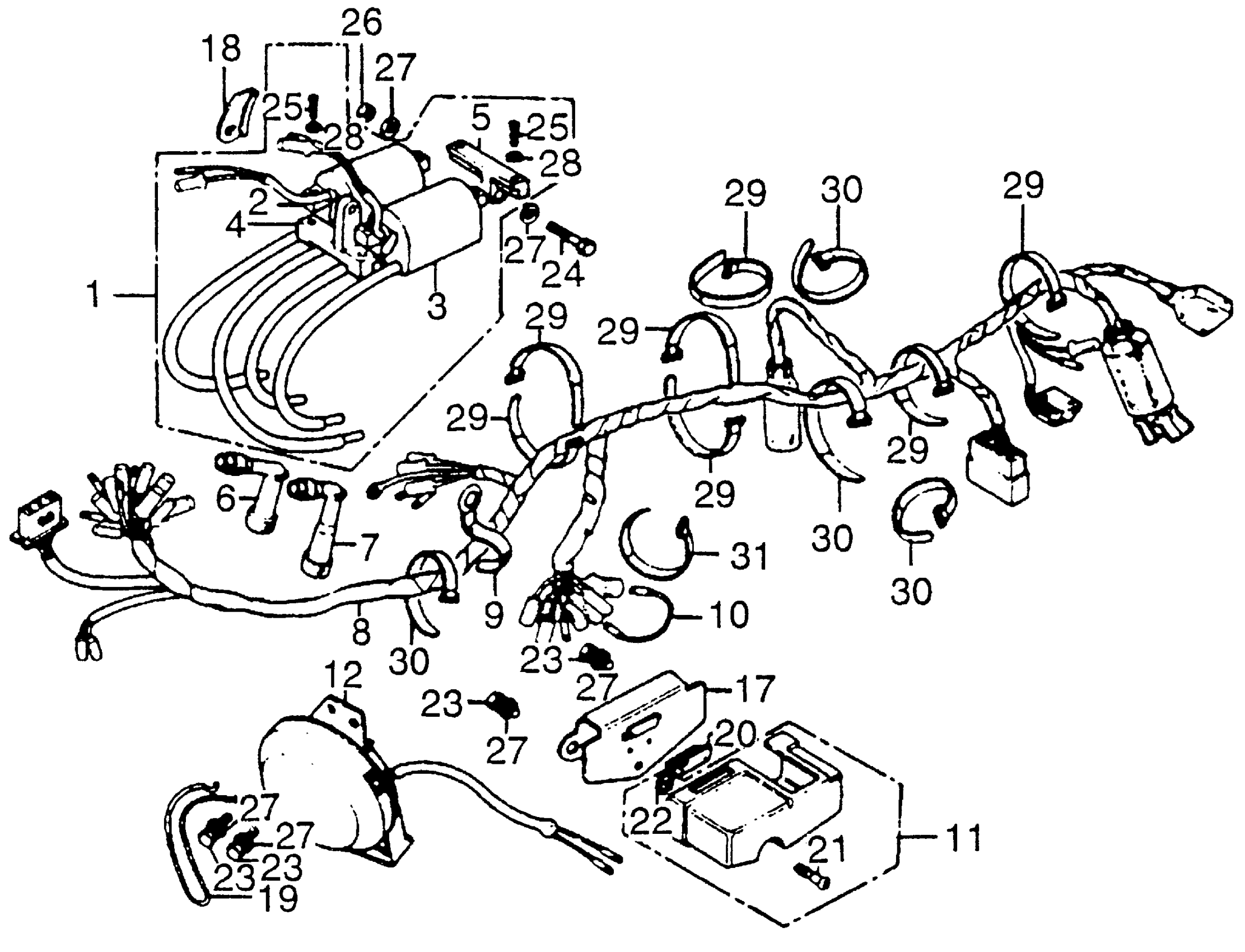

Honda CB550FA MOTORCYCLE, JPN, VIN# CB550F-1109886 WIRE HARNESS + IGNITION COIL + HORN Diagram

#

Description
Price

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-323-023.

30500-404-000

Unavailable

2

COIL, R. IGNITION (NOT AVAILABLE)

30501-323-003

Unavailable

3

COIL, L. IGNITION (NOT AVAILABLE)

30502-323-003

Unavailable

4

BRACKET, IGNITION COIL (NOT AVAILABLE)

30511-300-000

Unavailable

5

BRACKET B, IGNITION COIL (NOT AVAILABLE)

30512-323-000

Unavailable

6

CAP ASSY. This part replaces 30700-GAR-000.

30700-GAR-003

$19.81

6

CAP ASSY. This part replaces 30700-300-010.

30700-GAR-003

$19.81

6

CAP ASSY. This part replaces 30700-405-153.

30700-GAR-003

$19.81

6

CAP ASSY. This part replaces 30700-405-163.

30700-GAR-003

$19.81

7

CAP ASSY., NOISE SUPPRESSOR This part replaces 30701-323-013.

30700-MC8-000

Unavailable

7

CAP ASSY., NOISE SUPPRESSOR

30700-MC8-000

Unavailable

7

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-153.

30700-MC8-000

Unavailable

7

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-390-163.

30700-MC8-000

Unavailable

7

CAP ASSY., NOISE SUPPRESSOR This part replaces 30701-323-023.

30700-MC8-000

Unavailable

8

WIRE HARNESS (NOT AVAILABLE) This part replaces 32100-390-000.

32100-390-010

Unavailable

8

WIRE HARNESS (NOT AVAILABLE)

32100-390-010

Unavailable

9

CLIP, WIRE HARNESS

32171-323-000

Unavailable

10

SUB-WIRE HARNESS (NOT AVAILABLE)

32200-390-670

Unavailable

11

BOX, CABLE HARNESS (NOT AVAILABLE)

32400-390-000

Unavailable

12

HORN ASSY. (MITSUBA)

38100-300-023

Unavailable

17

PLATE, CABLE HARNESS BOX (NOT AVAILABLE)

50107-390-000

Unavailable

18

PROTECTOR, IGNITION COIL CABLE (NOT AVAILABLE)

50400-323-000

Unavailable

19

CLAMP, TACHOMETER CABLE This part replaces 50462-323-000.

50462-323-010

Unavailable

19

CLAMP, TACHOMETER CABLE

50462-323-010

Unavailable

20

GROMMET, SIDE COVER

83621-333-000

$5.80

21

SCREW, PAN (5X12) (NOT AVAILABLE)

90088-612-000

Unavailable

22

CIRCLIP (5MM) (NOT AVAILABLE)

90601-816-000

Unavailable

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

24

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

25

SCREW, PAN (5X20)

93500-05020-0A

$1.49

26

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, SPRING (5MM)

94111-05000

$1.49

29

BAND B1, WIRE

32161-404-000

$2.23

29

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

30

BAND A2, CABLE

95014-61200

$2.33

31

BAND A3, WIRE

95014-61300

$1.97
