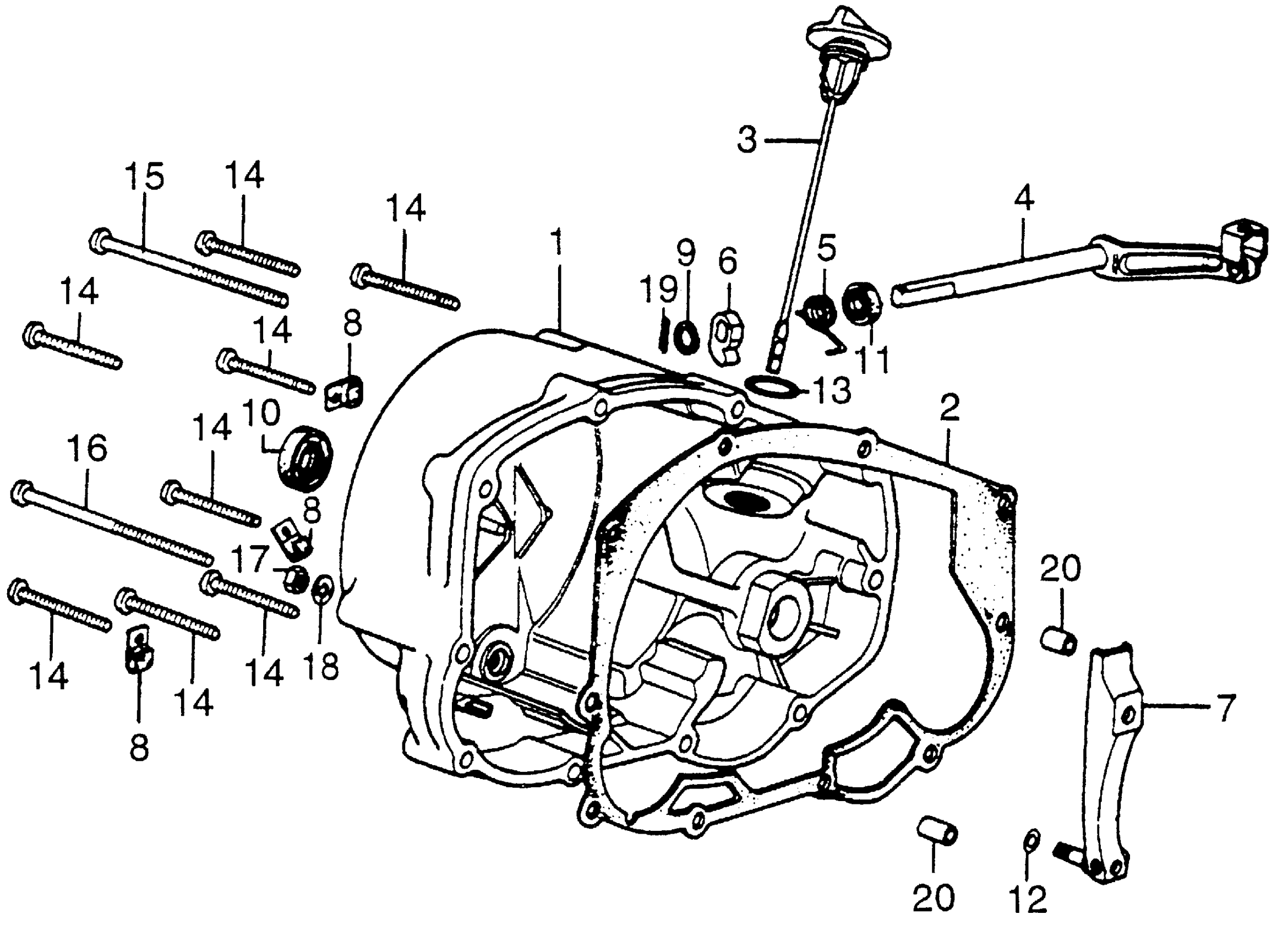

Honda CB550FA MOTORCYCLE, JPN, VIN# CB550F-1109886 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11331-390-000

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-390-000.

11394-390-306

Unavailable

2

GASKET, R. CRANKCASE COVER

11394-390-306

Unavailable

3

DIPSTICK, OIL (NOT AVAILABLE)

15650-323-000

Unavailable

4

LEVER, CLUTCH

22710-374-010

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE)

22815-374-000

Unavailable

6

CAM, CLUTCH LIFTER

22821-116-000

$7.75

7

LEVER, CLUTCH ADJ. (NOT AVAILABLE) This part replaces 22831-333-010.

22831-333-020

Unavailable

7

LEVER, CLUTCH ADJ. (NOT AVAILABLE)

22831-333-020

Unavailable

8

CLAMP, CABLE

32111-323-000

$3.98

9

WASHER (10MM) (NOT AVAILABLE)

90471-333-000

Unavailable

10

OIL SEAL (18X29X7)

91204-286-003

$4.31

10

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.31

11

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$4.22

11

OIL SEAL (10X16X4.5)

91259-VM0-000

$4.22

12

O-RING (6MM)

91301-704-000

$2.92

13

O-RING (23X2)

91354-371-000

$3.19

13

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

14

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

14

SCREW, PAN (6X32)

93500-06032-0A

$1.49

15

SCREW, PAN (6X75) This part replaces 93500-06075.

93500-06075-0A

$1.73

15

SCREW, PAN (6X75)

93500-06075-0A

$1.73

16

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

16

SCREW, PAN (6X80)

93500-06080-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

PIN, SPLIT (2.0X15)

94201-20150

$1.49

20

PIN, DOWEL (8X14)

94301-08140

$2.25
