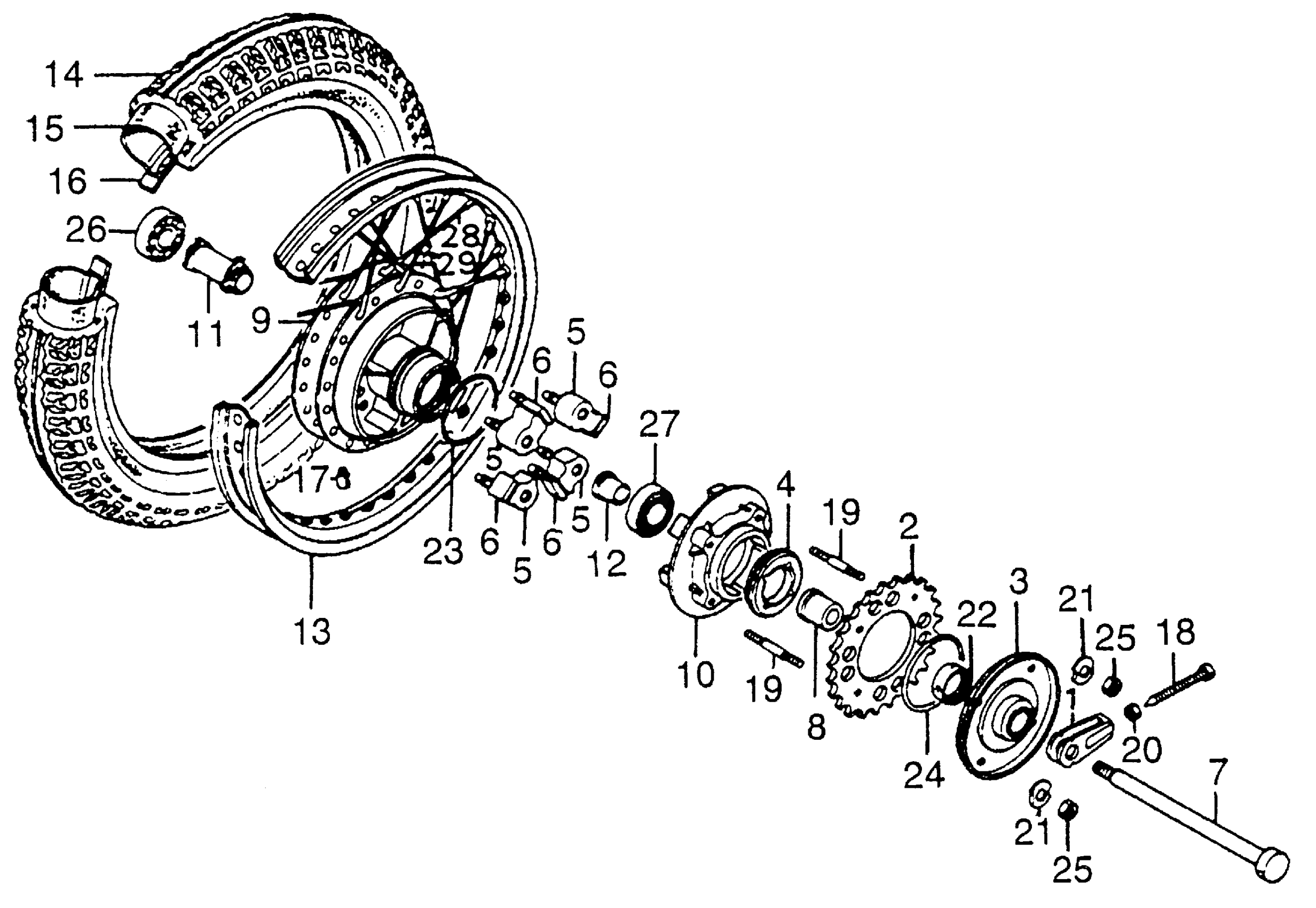

Honda CB550FA MOTORCYCLE, JPN, VIN# CB550F-1109886 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, CHAIN This part replaces 40543-390-000.

95014-18000

$20.48

1

ADJUSTER, CHAIN

95014-18000

$20.48

2

SPROCKET, FINAL DRIVEN (37T) (NOT AVAILABLE)

41201-374-000

Unavailable

3

PLATE, SPROCKET SIDE (NOT AVAILABLE)

41211-323-000

Unavailable

4

RETAINER, RR. WHEEL BEARING (NOT AVAILABLE)

41231-323-020

Unavailable

5

DAMPER A, RR. (NOT AVAILABLE)

41242-323-000

Unavailable

6

DAMPER B, RR. (NOT AVAILABLE)

41243-323-000

Unavailable

7

AXLE, RR. WHEEL This part replaces 42301-300-010.

42301-300-020

Unavailable

7

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-300-020

Unavailable

8

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-390-000

Unavailable

9

HUB, RR. WHEEL (NOT AVAILABLE)

42601-323-030

Unavailable

10

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-323-000

Unavailable

11

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-323-030

Unavailable

12

COLLAR B, RR. AXLE DISTANCE (NOT AVAILABLE)

42625-283-000

Unavailable

13

RIM, RR. WHEEL (18) (DAIDO) (NOT AVAILABLE) This part replaces 42701-283-003.

42701-404-771

Unavailable

13

RIM, RR. WHEEL (18) (DAIDO) (NOT AVAILABLE)

42701-404-771

Unavailable

14

TIRE, RR. (3.75S-18) (BS) (NOT AVAILABLE)

42711-375-671

Unavailable

15

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-300-000.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-300-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-310-004.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

15

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

15

TUBE, TIRE (100/100-18) (DUNLOP)

44712-300-004

$65.43

16

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

17

BALANCER (20G)

44606-283-000

$8.89

17

BALANCER, WHEEL (15G)

44607-283-000

$8.08

17

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

17

BALANCER, WHEEL (5G)

44609-283-000

$3.93

18

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

19

BOLT, STUD (10X48MM)

90125-323-000

Unavailable

20

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

21

WASHER, TONGUED (10MM)

90524-323-000

Unavailable

22

OIL SEAL (34X55X9)

90753-283-000

$16.11

23

O-RING (79X2.6) (NOT AVAILABLE)

91261-323-000

Unavailable

24

O-RING (92X2) (NOT AVAILABLE)

91262-323-000

Unavailable

25

NUT, HEX. (10MM)

94030-10000

$1.49

26

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03

27

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable

28

SPOKE BS (8X147.5)

97285-69135-10

$4.15

29

SPOKE BS (8X147)

97686-69134-10

$4.15
