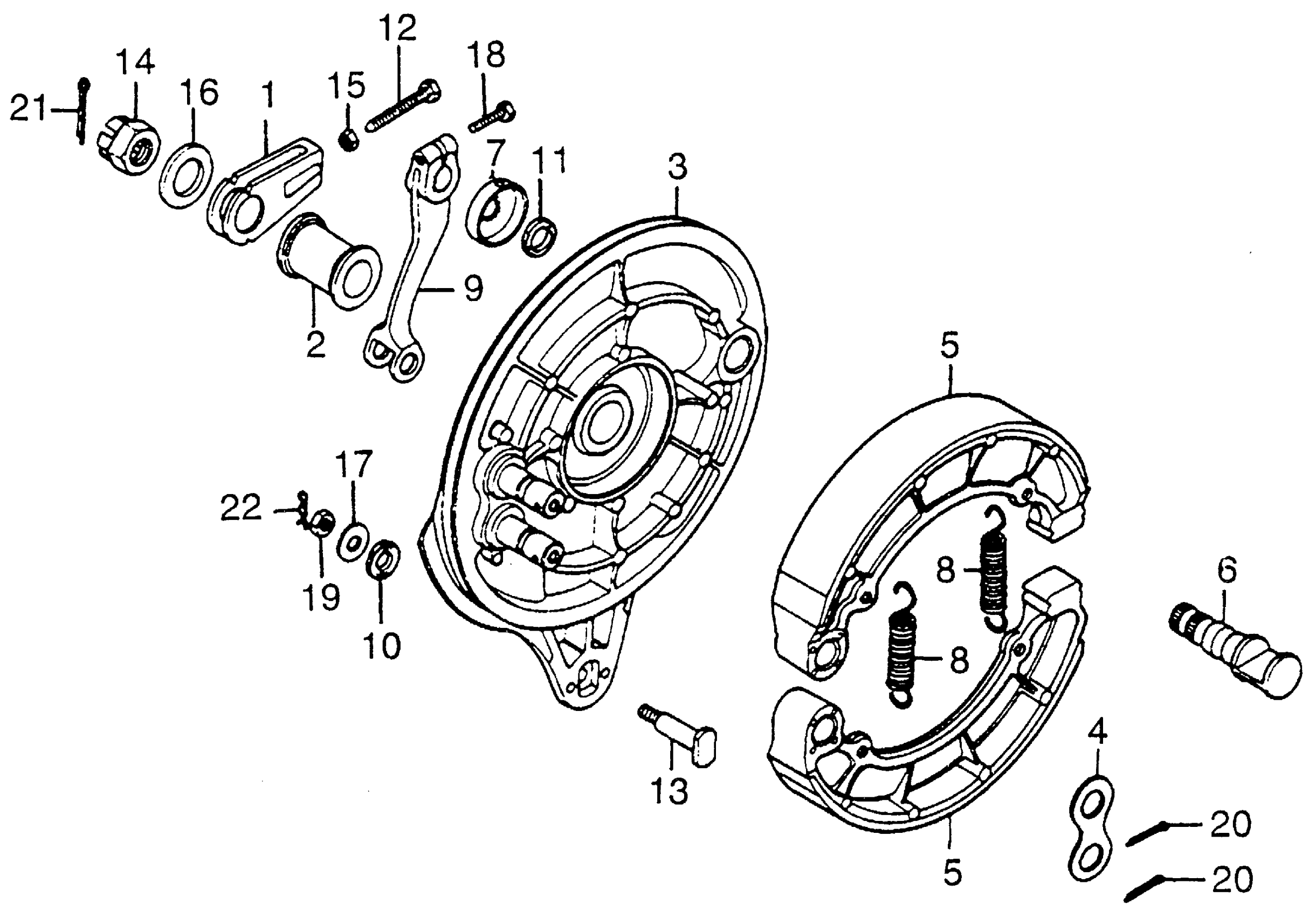

Honda CB550FA MOTORCYCLE, JPN, VIN# CB550F-1109886 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06430-390-405

Unavailable

NI

SHOE KIT, BRAKE This part replaces 431A0-390-670.

06430-390-405

Unavailable

1

ADJUSTER, CHAIN This part replaces 40543-390-000.

95014-18000

$20.48

1

ADJUSTER, CHAIN

95014-18000

$20.48

2

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-390-000

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-374-000

Unavailable

4

WASHER, ANCHOR PIN

43102-319-000

$6.21

4

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

5

SHOE KIT, BRAKE

06430-390-405

Unavailable

5

SHOE KIT, BRAKE This part replaces 43120-283-000.

06430-390-405

Unavailable

5

SHOE KIT, BRAKE This part replaces 43120-404-003.

06430-390-405

Unavailable

5

SHOE KIT, BRAKE This part replaces 43120-458-670.

06430-390-405

Unavailable

6

CAM, RR. BRAKE (NOT AVAILABLE)

43141-374-000

Unavailable

7

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-374-000

Unavailable

8

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

9

ARM, RR. BRAKE (NOT AVAILABLE)

43411-374-000

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

13

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90127-323-000

Unavailable

14

NUT, RR. WHEEL AXLE This part replaces 90306-268-000.

90306-329-770

$7.58

14

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

15

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

16

WASHER (18.5X34) (NOT AVAILABLE)

90523-292-000

Unavailable

17

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

18

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

18

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

20

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

20

PIN, SPLIT (2.5X30)

94201-25300

$1.49

21

PIN, SPLIT (4.0X30)

94201-40300

$1.49

22

PIN, LOCK (8MM)

94251-08000

$1.49
