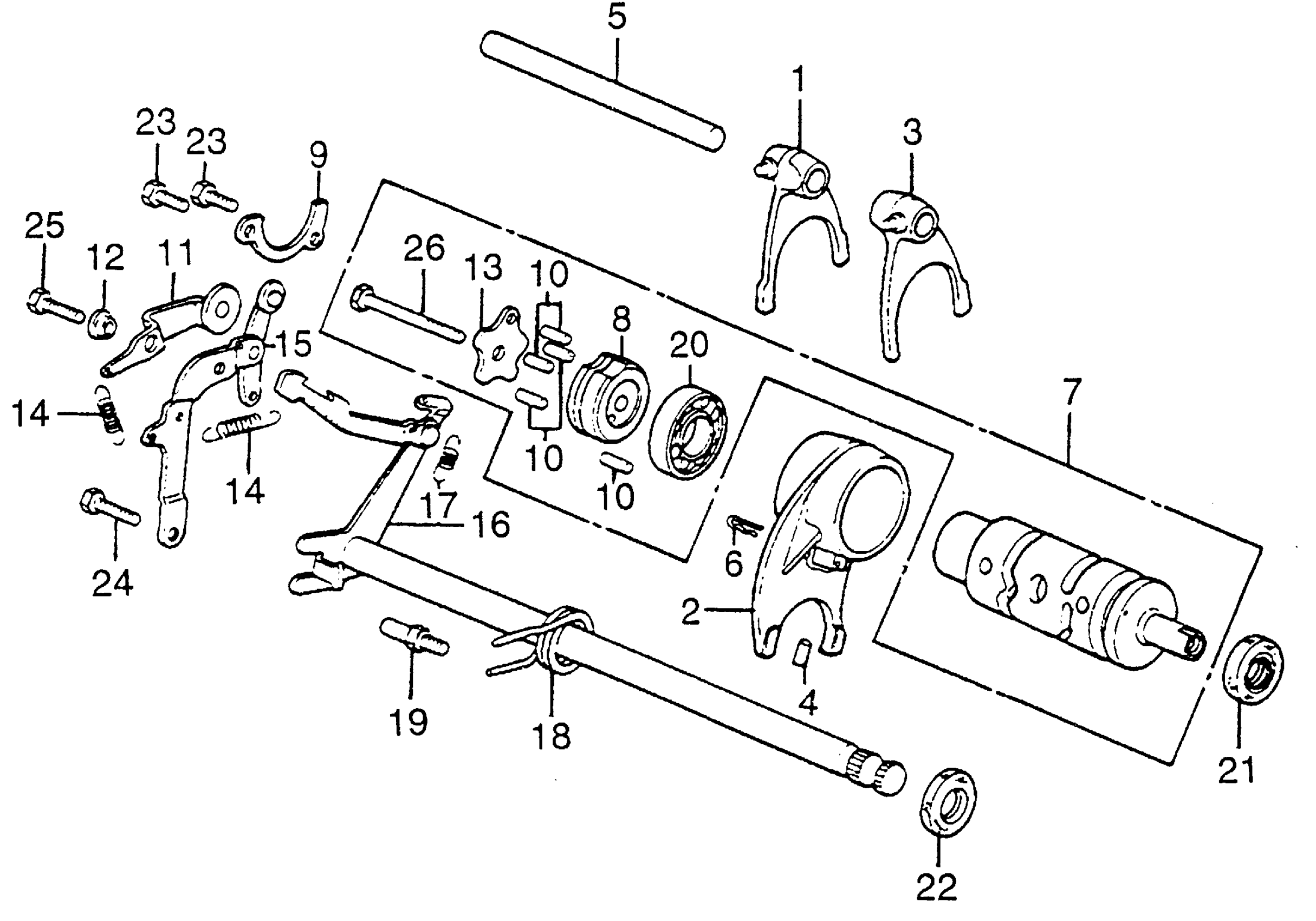

Honda CB550FA MOTORCYCLE, JPN, VIN# CB550F-1109886 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-374-000

Unavailable

2

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24212-390-000

Unavailable

3

FORK, L. GEARSHIFT

24213-374-000

Unavailable

4

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

5

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-374-000

Unavailable

6

CLIP, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24263-286-000

Unavailable

7

DRUM ASSY., GEARSHIFT (NOT AVAILABLE)

24300-374-000

Unavailable

8

CENTER, GEARSHIFT DRUM

24302-374-000

Unavailable

9

PLATE, BEARING SETTING (NOT AVAILABLE)

24305-374-000

Unavailable

10

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

11

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-390-000

Unavailable

12

COLLAR, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24433-323-010

Unavailable

13

PLATE, DRUM STOPPER CAM (NOT AVAILABLE)

24434-286-020

Unavailable

14

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-323-020

Unavailable

15

STOPPER, GEARSHIFT DRUM NEUTRAL (NOT AVAILABLE)

24440-390-000

Unavailable

16

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-374-000

Unavailable

17

SPRING, GEARSHIFT ARM (NOT AVAILABLE)

24641-292-000

Unavailable

18

SPRING, GEARSHIFT RETURN

24651-286-000

Unavailable

19

PIN, RETURN SPRING (NOT AVAILABLE)

90015-286-000

Unavailable

20

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

21

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

21

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

21

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

22

OIL SEAL (14X24X5)

91202-KFL-841

$5.04

22

OIL SEAL (14X24X5) This part replaces 91202-216-000.

91202-KFL-841

$5.04

22

OIL SEAL (14X24X5) This part replaces 91202-216-003.

91202-KFL-841

$5.04

22

OIL SEAL (14X24X5) This part replaces 91202-302-000.

91202-KFL-841

$5.04

22

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$5.04

22

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$5.04

22

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$5.04

22

OIL SEAL (14X24X5) This part replaces 91205-035-303.

91202-KFL-841

$5.04

23

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

23

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

BOLT, HEX. (6X20) (NOT AVAILABLE)

92020-06020

Unavailable

26

BOLT, HEX. (6X32) This part replaces 92200-06032.

92201-06032-0A

Unavailable

26

BOLT, HEX. (6X32)

92201-06032-0A

Unavailable
