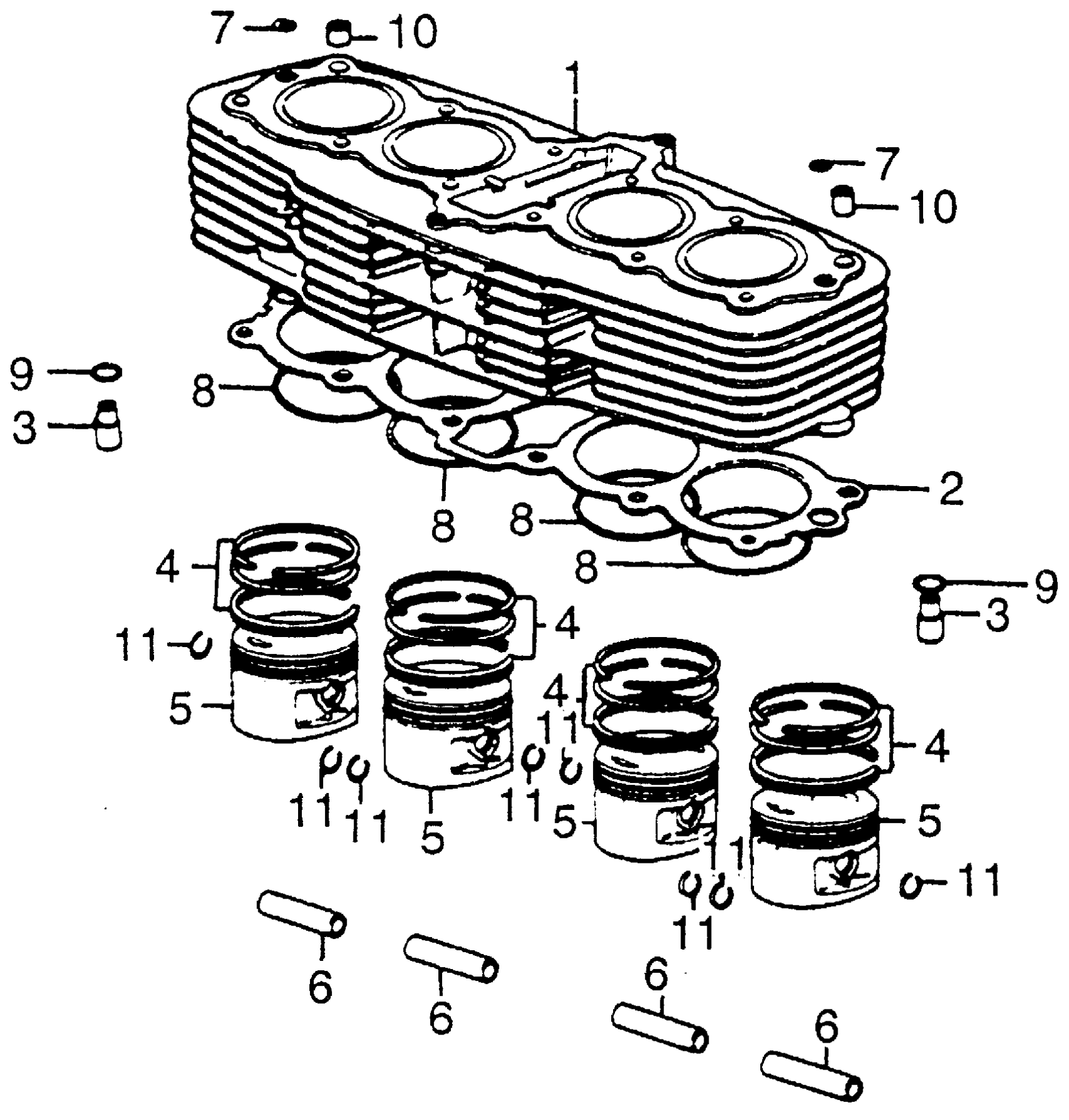

Honda CB550FA MOTORCYCLE, JPN, VIN# CB550F-1109886 CYLINDER + PISTON Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE) This part replaces 12100-374-000.

12100-374-010

Unavailable

1

CYLINDER (NOT AVAILABLE)

12100-374-010

Unavailable

2

GASKET, CYLINDER This part replaces 12191-374-000.

12191-426-306

$16.38

2

GASKET, CYLINDER This part replaces 12191-426-000.

12191-426-306

$16.38

2

GASKET, CYLINDER

12191-426-306

$16.38

3

VALVE, OIL CONTROL (NOT AVAILABLE)

12238-323-000

Unavailable

4

RING SET, PISTON (STD) (RIKEN)

13011-374-000

Unavailable

4

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-374-004.

13011-374-000

Unavailable

4

RING SET, PISTON (OS 0.25) | (Optional).

13021-374-000

Unavailable

4

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13031-374-000

Unavailable

4

RING SET, PISTON (OS 0.75) (NOT AVAILABLE) | (Optional).

13041-374-000

Unavailable

4

RING SET, PISTON (1.00) | (Optional).

13051-374-000

Unavailable

5

PISTON (STD)

13101-374-000

Unavailable

5

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-374-000

Unavailable

5

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-374-000

Unavailable

5

PISTON (OS 0.75) (NOT AVAILABLE) | (Optional).

13104-374-000

Unavailable

5

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-374-000

Unavailable

6

PIN, PISTON

13111-286-000

$26.03

6

PIN, PISTON

13111-440-000

$24.55

7

O-RING (4.9X2.5) This part replaces 91301-323-000.

91301-426-010

$3.60

7

O-RING (4.9X2.5) This part replaces 91301-426-000.

91301-426-010

$3.60

7

O-RING (4.9X2.5)

91301-426-010

$3.60

8

O-RING (61.8X2.0)

91304-286-000

$10.25

9

O-RING (11X2.5) This part replaces 91309-035-000.

91310-426-000

$5.19

9

O-RING (11X2.5)

91310-426-000

$5.19

9

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

10

PIN, DOWEL (12X18)

94301-12180

$2.59

11

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
