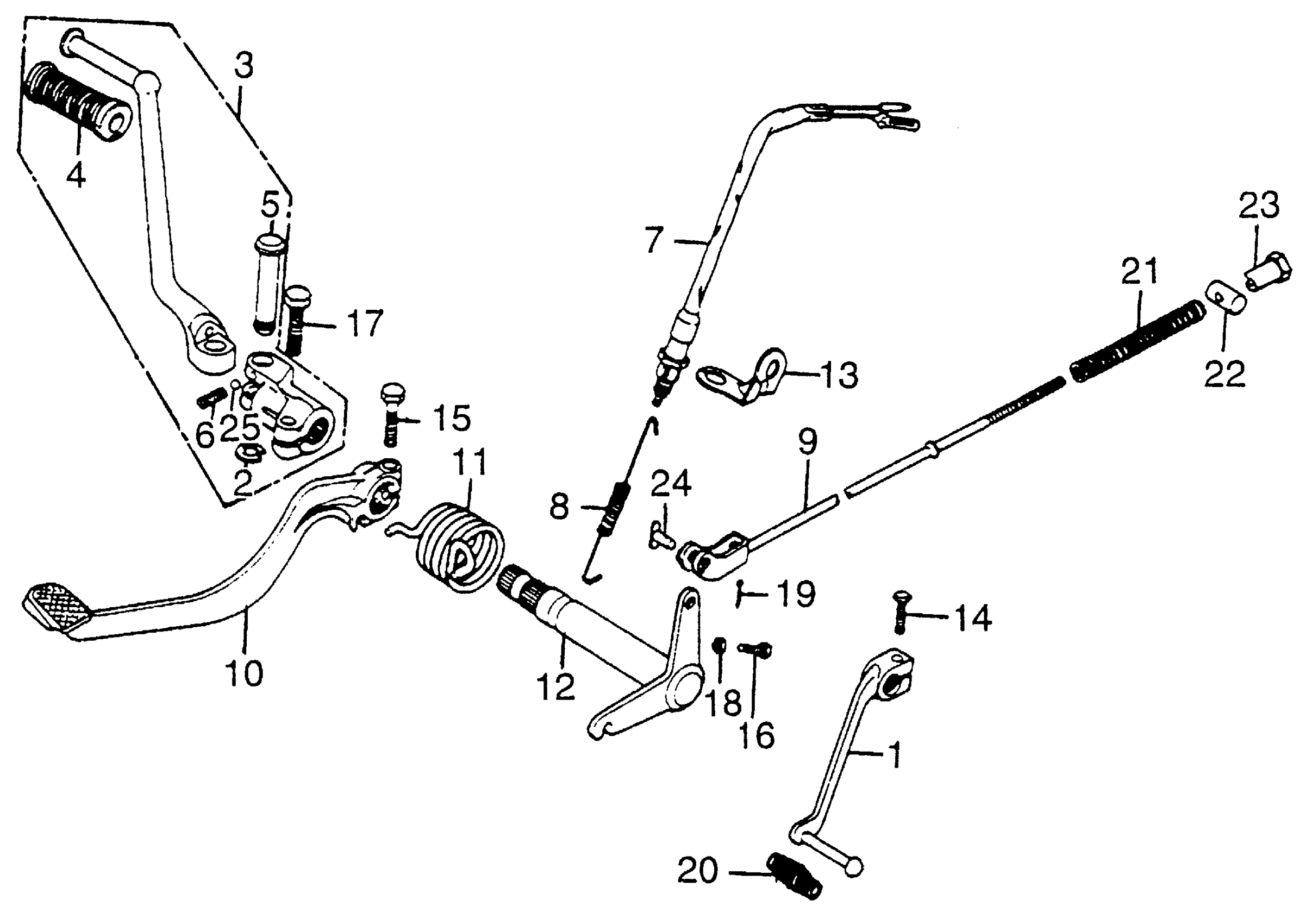

Honda CB550FA MOTORCYCLE, JPN, VIN# CB550F-1109886 CHANGE PEDAL + BRAKE PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-390-000.

24701-390-000

Unavailable

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-390-000

Unavailable

2

CLIP, KICK STARTER KNUCKLE PIN

28293-250-000

Unavailable

3

ARM, KICK STARTER (NOT AVAILABLE)

28300-390-000

Unavailable

4

RUBBER, KICK STARTER

28311-329-000

$5.54

5

PIN, KICK STARTER KNUCKLE

28321-390-000

Unavailable

6

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

7

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

7

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

7

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

8

SPRING, STOP SWITCH

35357-011-000

$2.46

9

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43451-323-010.

43451-323-020

Unavailable

9

ROD, RR. BRAKE (NOT AVAILABLE)

43451-323-020

Unavailable

10

PEDAL, BRAKE (NOT AVAILABLE)

46500-390-000

Unavailable

11

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-390-000

Unavailable

12

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE)

46515-390-000

Unavailable

13

BRACKET, STOP SWITCH (NOT AVAILABLE)

50157-390-000

Unavailable

14

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

14

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

15

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

15

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

16

BOLT, HEX. (6X32)

92030-06032

Unavailable

17

BOLT, HEX. (8X28) This part replaces 93200-08028-0A.

93201-08028-0A

$1.75

17

BOLT, HEX. (8X28)

93201-08028-0A

$1.75

18

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

18

NUT, HEX. (6MM)

94002-06000-0S

$1.49

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

19

PIN, COTTER (1.6X25)

94201-16250

$1.49

20

RUBBER, CHANGE PEDAL

95011-40000

$1.49

21

SPRING A, BRAKE ROD

95014-73100

$1.49

21

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

22

JOINT B, BRAKE ARM

95015-32001

$1.49

23

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

24

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

25

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
