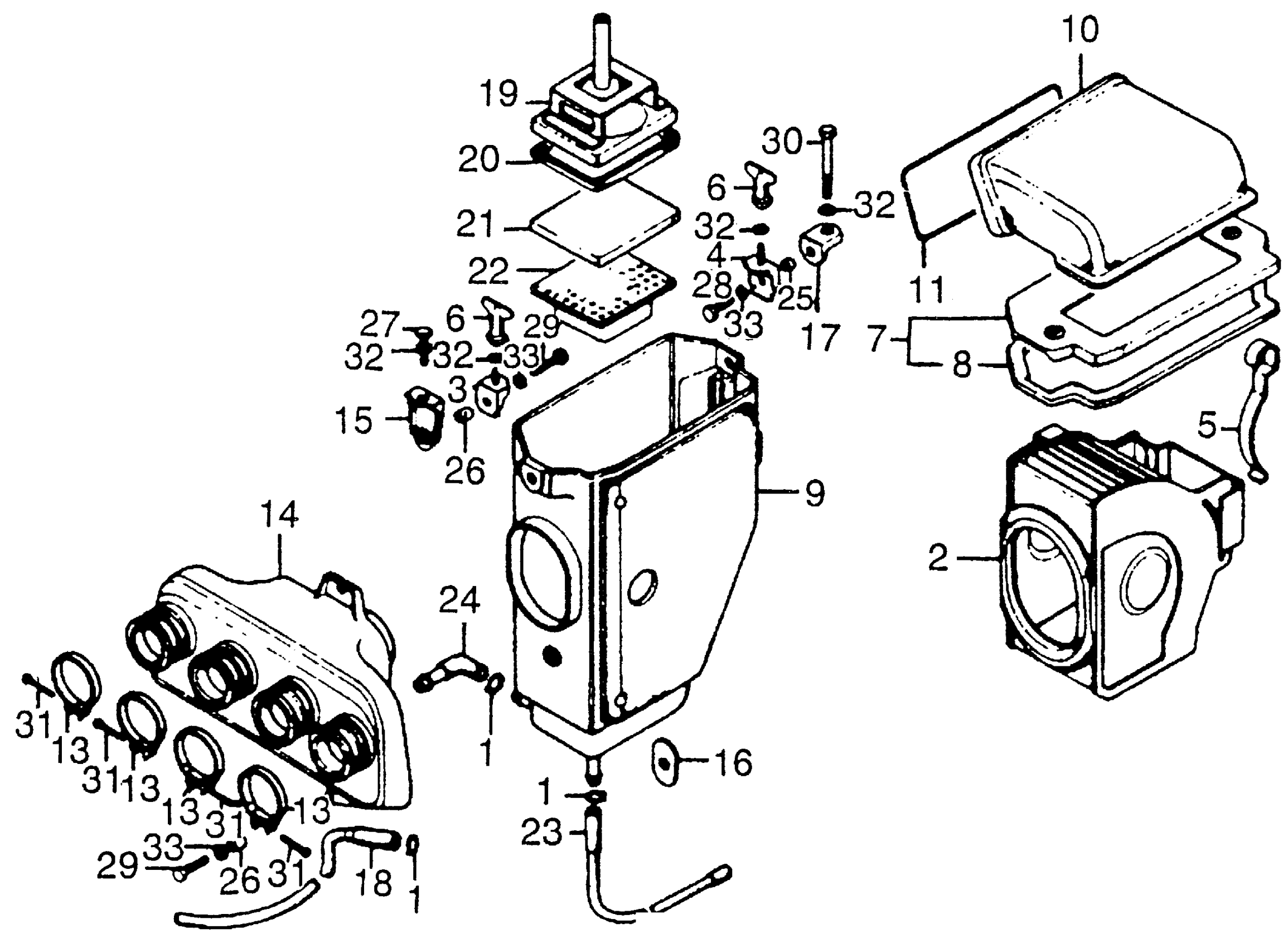

Honda CB550FA MOTORCYCLE, JPN, VIN# CB550F-1109886 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

ELEMENT, AIR CLEANER This part replaces 17210-390-003.

17210-390-P00

Unavailable

3

STAY A, AIR CLEANER COVER

17214-390-000

Unavailable

4

STAY B, AIR CLEANER COVER

17215-390-000

Unavailable

5

SPRING, AIR CLEANER ELEMENT (NOT AVAILABLE)

17216-323-020

Unavailable

6

NUT, AIR CLEANER COVER (NOT AVAILABLE)

17216-390-000

Unavailable

7

COVER, AIR CLEANER (NOT AVAILABLE)

17220-390-000

Unavailable

8

RUBBER, AIR CLEANER HOUSING SEAL (NOT AVAILABLE)

17221-390-300

Unavailable

9

CASE ASSY., AIR CLEANER (NOT AVAILABLE)

17233-390-003

Unavailable

10

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-390-000

Unavailable

11

CABLE, IN. DUCT (NOT AVAILABLE)

17242-390-000

Unavailable

13

BAND A, AIR CLEANER CONNECTING TUBE

17255-323-000

$7.30

14

CHAMBER, AIR CLEANER *NH1* (BLACK) This part replaces 17310-323-000B.

17310-323-010B

Unavailable

14

CHAMBER, AIR CLEANER *NH1* (BLACK)

17310-323-010B

Unavailable

15

STAY, AIR CLEANER (NOT AVAILABLE)

17317-323-010

Unavailable

16

WASHER, ELEMENT SETTING (NOT AVAILABLE)

17318-323-000

Unavailable

17

STAY, RR. AIR CLEANER (NOT AVAILABLE)

17319-323-000

Unavailable

18

TUBE ASSY., BREATHER

17335-323-000

Unavailable

19

COVER, AIR CLEANER ELEMENT

17350-374-003

Unavailable

20

SEAL, ELEMENT COVER (NOT AVAILABLE)

17351-374-003

Unavailable

21

ELEMENT

17352-374-003

Unavailable

22

PLATE, SEAL (NOT AVAILABLE)

17353-374-003

Unavailable

23

TUBE ASSY., DRAIN (NOT AVAILABLE)

17358-374-000

Unavailable

24

PIECE, AIR CLEANER JOINT (NOT AVAILABLE)

17359-374-000

Unavailable

25

COLLAR, BUZZER SETTING

61309-303-810

$5.17

26

COLLAR, RR. FENDER

84705-310-000

$1.72

27

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

27

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

28

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

29

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

30

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

30

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

30

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

31

SCREW, PAN (4X20)

93500-04020-0A

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, SPRING (6MM)

94111-06000

$1.49
