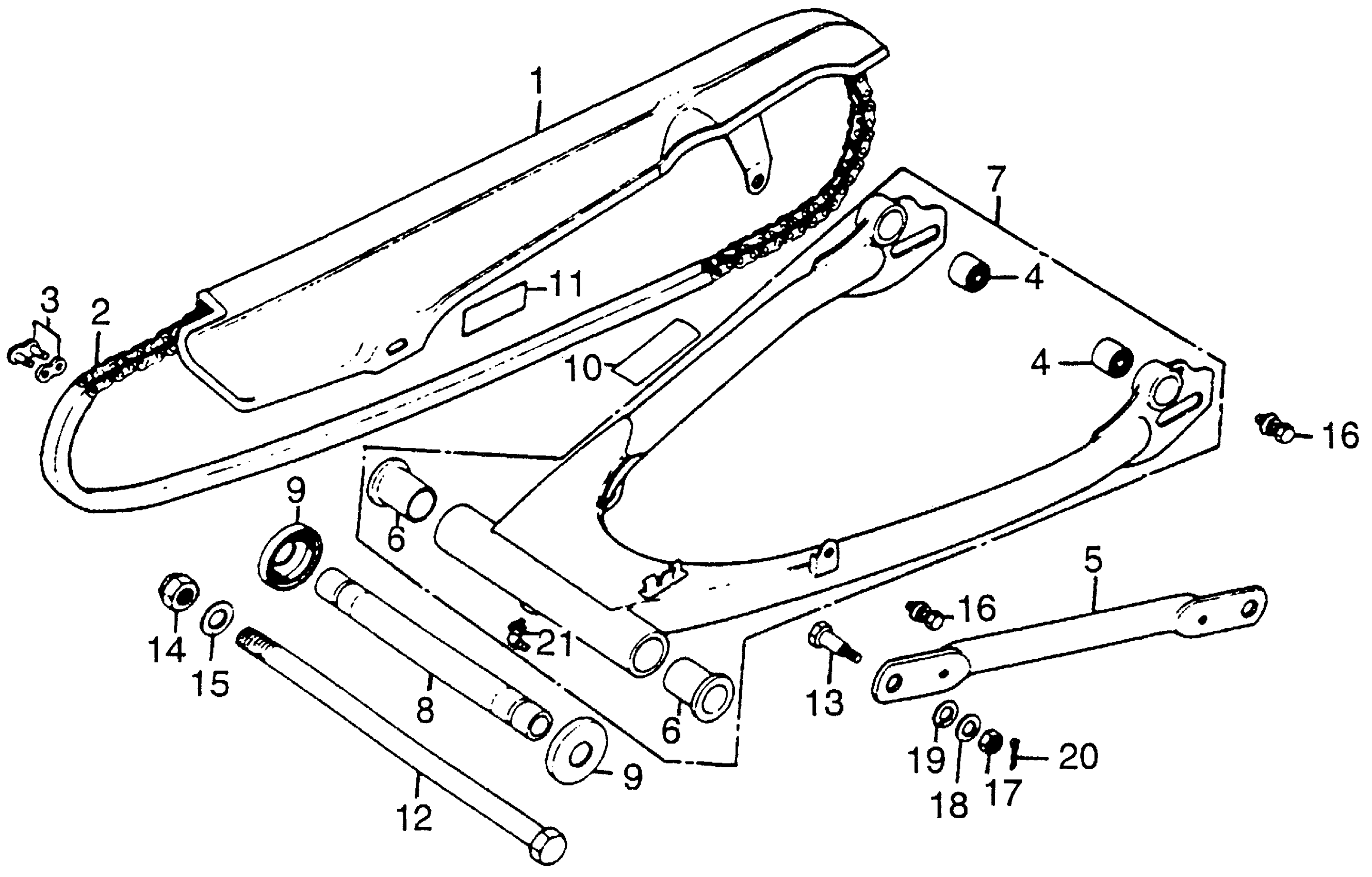

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 SWINGARM + CHAIN Diagram

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-390-000

Unavailable

CHAIN, DRIVE This part replaces 40530-404-003.

40530-426-641

Unavailable

MASTER LINK (RK50SS) (NOT AVAILABLE) | (Optional).

40531-392-305

Unavailable

MASTER LINK (DID-XJ) (NOT AVAILABLE) | (Optional).

40531-404-000

Unavailable

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-404-000

Unavailable

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

SWINGARM ASSY., RR. *NH1* (BLACK)

52110-390-000ZA

Unavailable

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE) This part replaces 52141-390-000.

52141-390-010

Unavailable

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-390-010

Unavailable

CAP, DUST SEAL

52144-362-000

Unavailable

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-390-780

Unavailable

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE) This part replaces 90121-390-000.

90121-426-000

Unavailable

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-426-000

Unavailable

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

NUT, LOCK (14MM)

90354-268-000

$6.78

WASHER, RR. SWINGARM PIVOT BOLT

90526-268-000

$3.10

BOLT-WASHER (6X14) (NOT AVAILABLE)

93483-06014-00

Unavailable

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

FITTING, GREASE (B.76S)

96201-80000

$2.56
