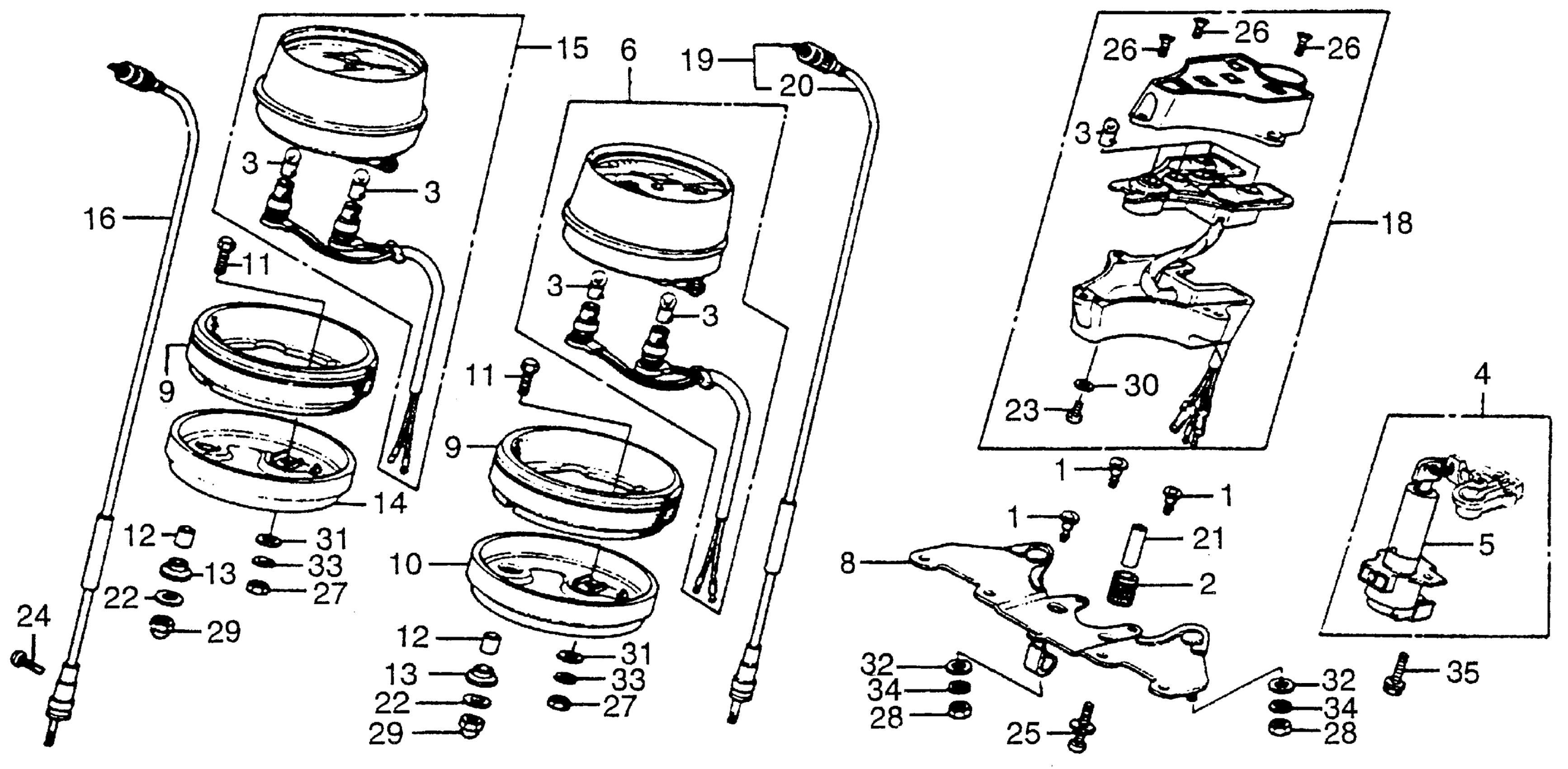

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

STOPPER, METER BRACKET (NOT AVAILABLE)

32701-392-700

Unavailable

2

GROMMET, METER BRACKET (NOT AVAILABLE)

32702-392-700

Unavailable

3

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

4

LOCK SET (HONDALOCK) | Use up to Frame SN 2114671

35010-377-007

Unavailable

4

LOCK SET (NOT AVAILABLE) | Use from Frame SN 2114672 This part replaces 35010-393-770.

35010-393-772

Unavailable

4

LOCK SET (NOT AVAILABLE) | Use from Frame SN 2114672 This part replaces 35010-393-771.

35010-393-772

Unavailable

4

LOCK SET (NOT AVAILABLE) | Use from Frame SN 2114672

35010-393-772

Unavailable

4

LOCK SET (NOT AVAILABLE) | Use from Frame SN 2114672 This part replaces 35010-410-000.

35010-393-772

Unavailable

5

LOCK SET (HONDALOCK)

35010-377-007

Unavailable

5

LOCK SET (HONDALOCK) This part replaces 35100-377-007.

35010-377-007

Unavailable

6

SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE)

37200-404-671

Unavailable

8

BRACKET, METER (NOT AVAILABLE)

37211-390-000

$34.20

9

RUBBER, SPEEDOMETER

37235-323-700

$22.28

10

PLATE, SPEEDOMETER (LOWER) This part replaces 37236-404-000.

37236-426-000

Unavailable

10

PLATE, SPEEDOMETER (LOWER)

37236-426-000

Unavailable

11

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

12

COLLAR, INSTRUMENT SETTING

37243-323-700

Unavailable

13

RUBBER, METER SETTING

37244-307-670

$2.67

14

PLATE, TACHOMETER (LOWER) This part replaces 37246-404-000.

37246-426-000

Unavailable

14

PLATE, TACHOMETER (LOWER)

37246-426-000

Unavailable

15

TACHOMETER ASSY.

37250-404-661

Unavailable

15

TACHOMETER ASSY. This part replaces 37250-404-671.

37250-404-661

Unavailable

16

CABLE ASSY., TACHOMETER

37260-149-000

Unavailable

16

CABLE ASSY., TACHOMETER This part replaces 37260-390-000.

37260-149-000

Unavailable

18

PILOT ASSY., COMBINATION (NIPPON SEIKI) (NOT AVAILABLE)

37600-377-018

Unavailable

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-323-000.

44830-425-870

$29.28

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-346-000.

44830-425-870

$29.28

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-390-000.

44830-425-870

$29.28

19

CABLE ASSY., SPEEDOMETER

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-323-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-329-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-346-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-369-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-375-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-390-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-413-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-413-010.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-446-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-463-000.

44830-425-870

$29.28

20

CABLE ASSY., SPEEDOMETER This part replaces 44831-323-000.

44830-425-870

$29.28

21

COLLAR, NUMBER BRACKET SETTING (NOT AVAILABLE)

84706-375-000

Unavailable

22

WASHER (6.5X18)

90545-323-700

$1.89

23

SCREW, PAN (5X6)

93500-05006-0G

$1.49

24

SCREW, PAN (5X20)

93500-05020-0A

$1.49

25

SCREW-WASHER (5X28) (NOT AVAILABLE) | Use from Frame SN 2110082

93894-05028-00

Unavailable

25

SCREW-WASHER (5X32) | Use up to Frame SN 2110081

93894-05032-00

Unavailable

26

SCREW, TAPPING (4X10)

93902-24280

Unavailable

27

NUT, HEX. (6MM) This part replaces 94001-06070.

94001-06070-0S

$1.49

27

NUT, HEX. (6MM)

94001-06070-0S

$1.49

28

NUT, HEX. (8MM)

94001-08070-0S

$1.49

29

NUT, CAP (6MM)

94021-06020

$1.73

30

WASHER, FLAT (5MM)

94101-05700

$1.49

31

WASHER, PLAIN (6MM)

94101-06700

$1.49

32

WASHER, FLAT (8MM)

94101-08700

$1.49

33

WASHER, SPRING (6MM)

94111-06700

$1.49

34

WASHER, SPRING (8MM) (NOT AVAILABLE)

94111-08700

Unavailable

35

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

35

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
