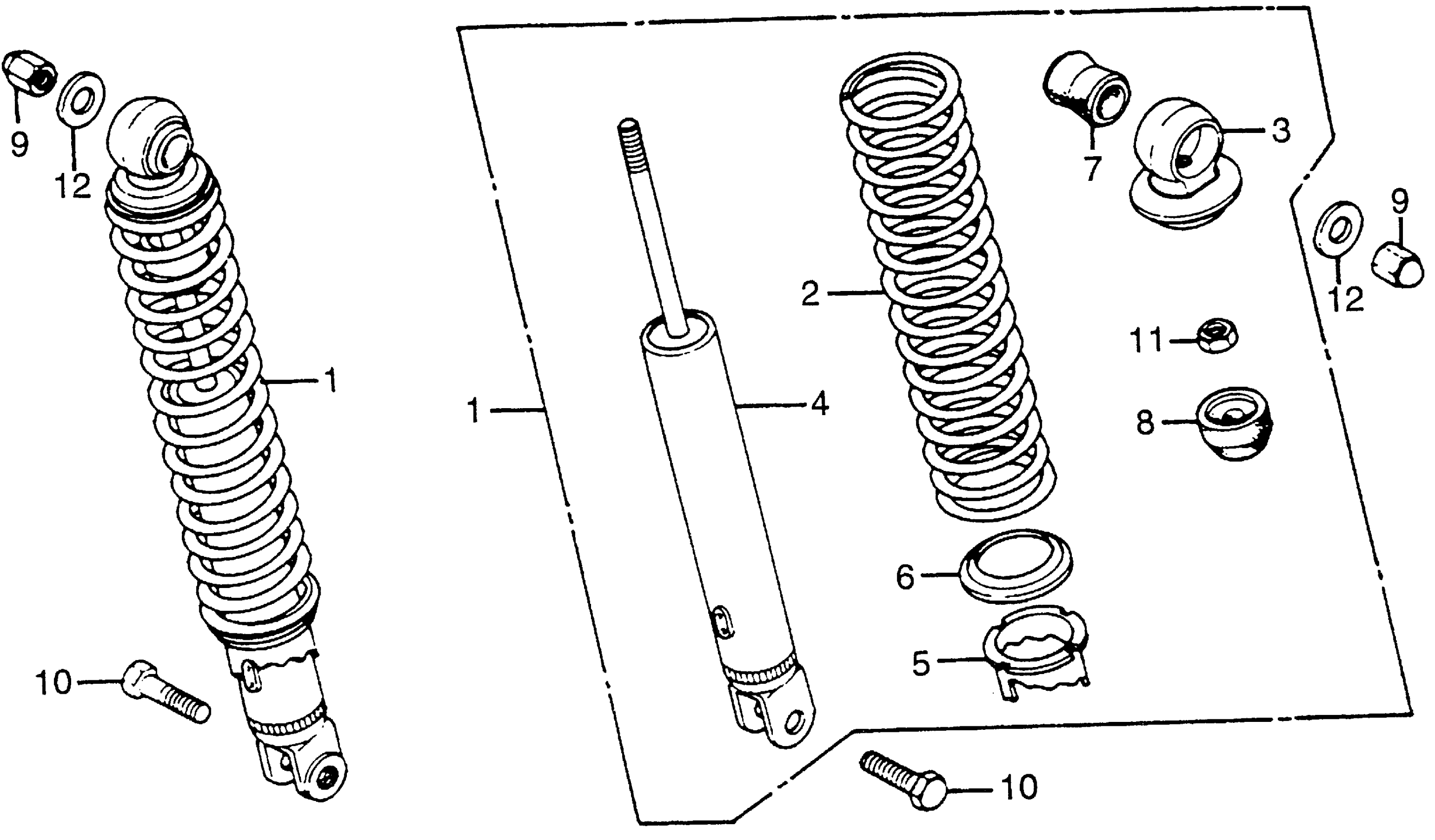

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 REAR SHOCK ABSORBER (2) Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) | Use from Frame SN 2115989

52400-404-013

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) | Use from Frame SN 2115989

52401-323-000

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE) | Use from Frame SN 2115989

52403-404-013

Unavailable

4

DAMPER, RR. (NOT AVAILABLE) | Use from Frame SN 2115989

52410-404-003

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE) | Use from Frame SN 2115989

52422-404-003

$18.64

6

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE) | Use from Frame SN 2115989

52458-329-000

Unavailable

7

RUBBER, JOINT | Use from Frame SN 2115989

52484-292-000

$5.87

8

RUBBER, STOPPER | Use from Frame SN 2115989

52517-404-003

$5.70

9

NUT, FLANGE (10MM) | Use from Frame SN 2115989

90309-315-000

$5.35

10

BOLT, HEX. (10X32) | Use from Frame SN 2115989 This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

10

BOLT, HEX. (10X32) | Use from Frame SN 2115989 This part replaces 93100-10032-0A.

93101-10032-0A

Unavailable

11

NUT, HEX. (10MM) | Use from Frame SN 2115989

94002-10000-0S

$4.06

12

WASHER, PLAIN (10MM) | Use from Frame SN 2115989

94101-10200

$1.49
