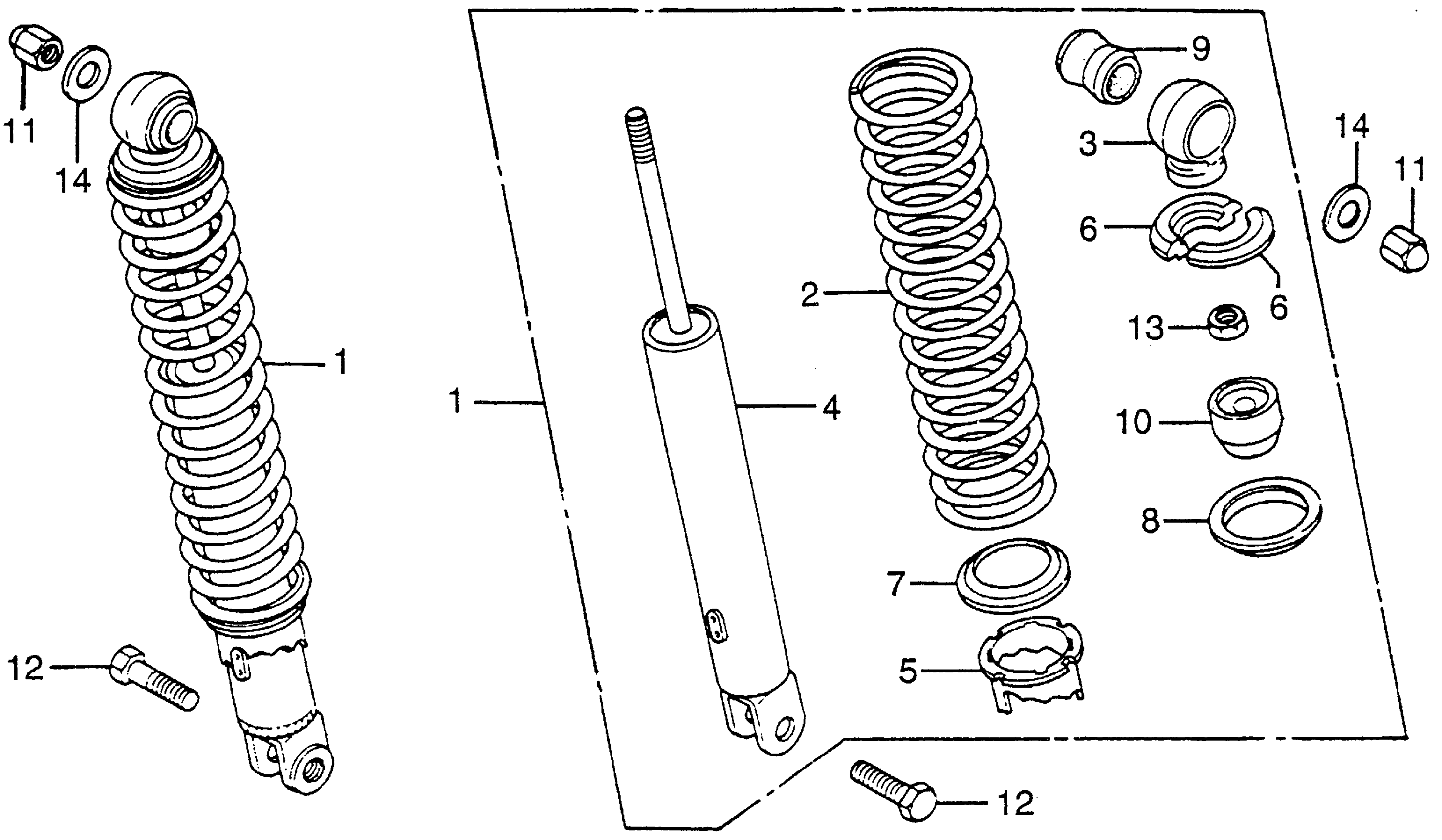

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 REAR SHOCK ABSORBER (1) Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE) | Use up to Frame SN 2115988

52400-375-611

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE) | Use up to Frame SN 2115988

52401-323-000

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE) | Use up to Frame SN 2115988

52403-312-000

$18.07

4

DAMPER ASSY., RR. (NOT AVAILABLE) | Use up to Frame SN 2115988

52410-375-611

Unavailable

5

ADJUSTER, SPRING (SHOWA) (NOT AVAILABLE) | Use up to Frame SN 2115988

52422-390-003

Unavailable

6

STOPPER, SPRING SEAT (SHOWA) | Use up to Frame SN 2115988

52424-331-003

$8.90

7

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE) | Use up to Frame SN 2115988

52458-329-000

Unavailable

8

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE) | Use up to Frame SN 2115988

52459-312-003

Unavailable

9

RUBBER, JOINT | Use up to Frame SN 2115988

52484-292-000

$5.87

10

RUBBER, STOPPER (NOT AVAILABLE) | Use up to Frame SN 2115988

52517-358-771

Unavailable

11

NUT, FLANGE (10MM) | Use up to Frame SN 2115988

90309-315-000

$5.35

12

BOLT, HEX. (10X32) | Use up to Frame SN 2115988 This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

12

BOLT, HEX. (10X32) | Use up to Frame SN 2115988 This part replaces 93100-10032-0A.

93101-10032-0A

Unavailable

13

NUT, HEX. (10MM) | Use up to Frame SN 2115988

94002-10000-0S

$4.06

14

WASHER, PLAIN (10MM) | Use up to Frame SN 2115988

94101-10200

$1.49
