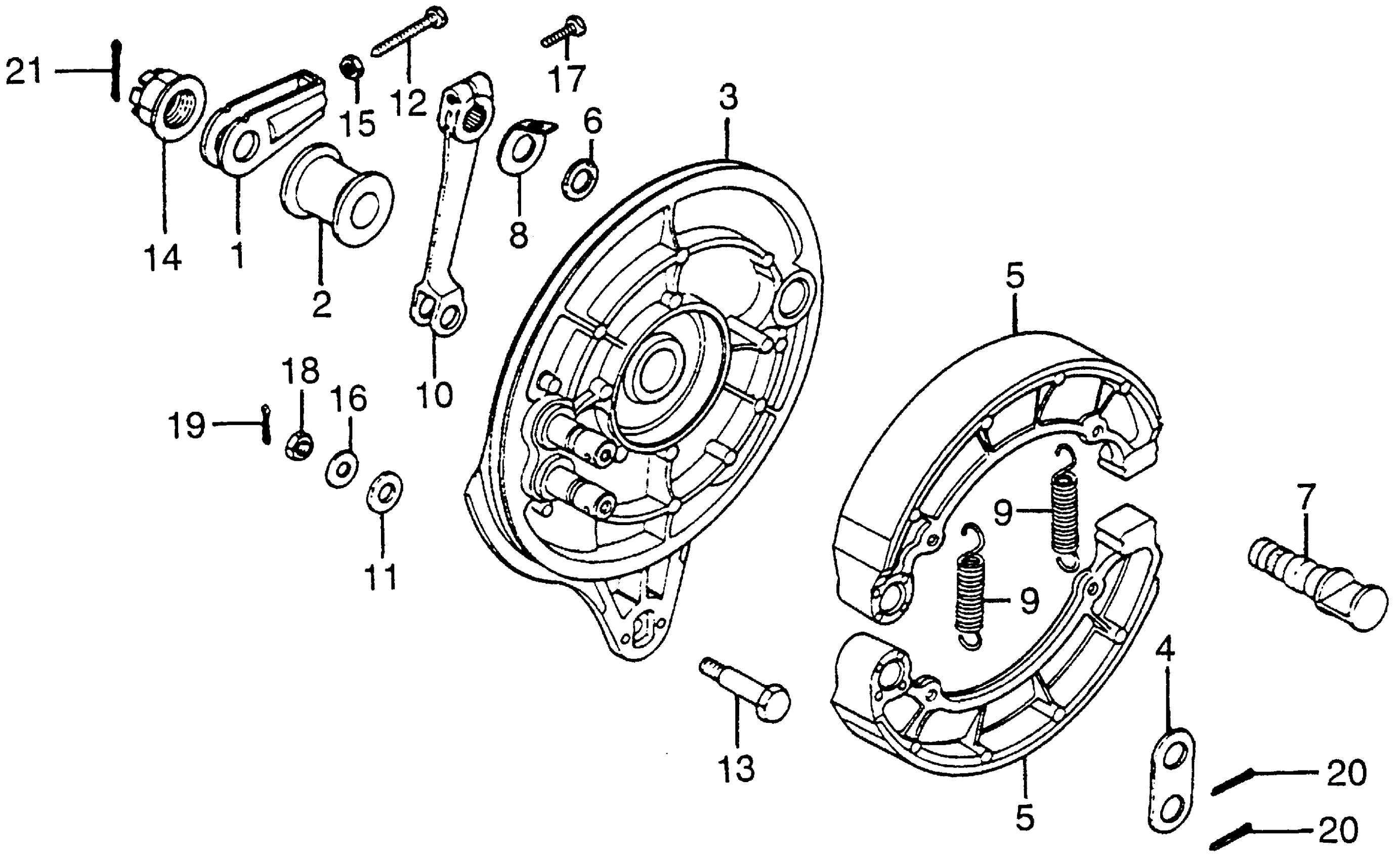

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 REAR BRAKE PANEL Diagram

#

Description
Price

NI

PAD, SET BRAKE

06455-390-405

Unavailable

NI

PAD, SET BRAKE This part replaces 451A0-390-670.

06455-390-405

Unavailable

1

ADJUSTER, CHAIN This part replaces 40543-390-000.

95014-18000

$20.48

1

ADJUSTER, CHAIN

95014-18000

$20.48

2

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-292-000

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 2115718

43100-341-030

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2115719

43100-393-781

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2115719 This part replaces 43100-405-000.

43100-393-781

Unavailable

3

PANEL, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 2115719 This part replaces 43100-405-010.

43100-393-781

Unavailable

4

WASHER, ANCHOR PIN

43102-319-000

$6.21

4

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

5

SHOE KIT, BRAKE

06430-390-405

Unavailable

5

SHOE KIT, BRAKE This part replaces 43120-404-003.

06430-390-405

Unavailable

5

SHOE KIT, BRAKE This part replaces 43120-458-670.

06430-390-405

Unavailable

6

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-341-020

Unavailable

8

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-341-010

Unavailable

9

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

10

ARM, RR. BRAKE

43410-MR5-000

Unavailable

10

ARM, RR. BRAKE This part replaces 43410-404-000.

43410-MR5-000

Unavailable

11

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

12

BOLT, CHAIN ADJUSTING

90119-283-000

$11.41

13

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

14

NUT, AXLE (18MM)

90305-393-000

Unavailable

15

NUT, CHAIN ADJUSTING

90307-283-000

$3.39

16

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

17

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

17

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

19

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

19

PIN, COTTER (2.0X22)

94201-20220

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

19

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

19

PIN, COTTER (2.0X35)

94201-20350

$1.49

19

PIN, COTTER (2.0X22)

94201-29220

$1.49

20

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

20

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

20

PIN, COTTER (2.5MM)

94201-25300

$1.49

21

PIN, COTTER (4.0X30)

94201-40300

$1.49
