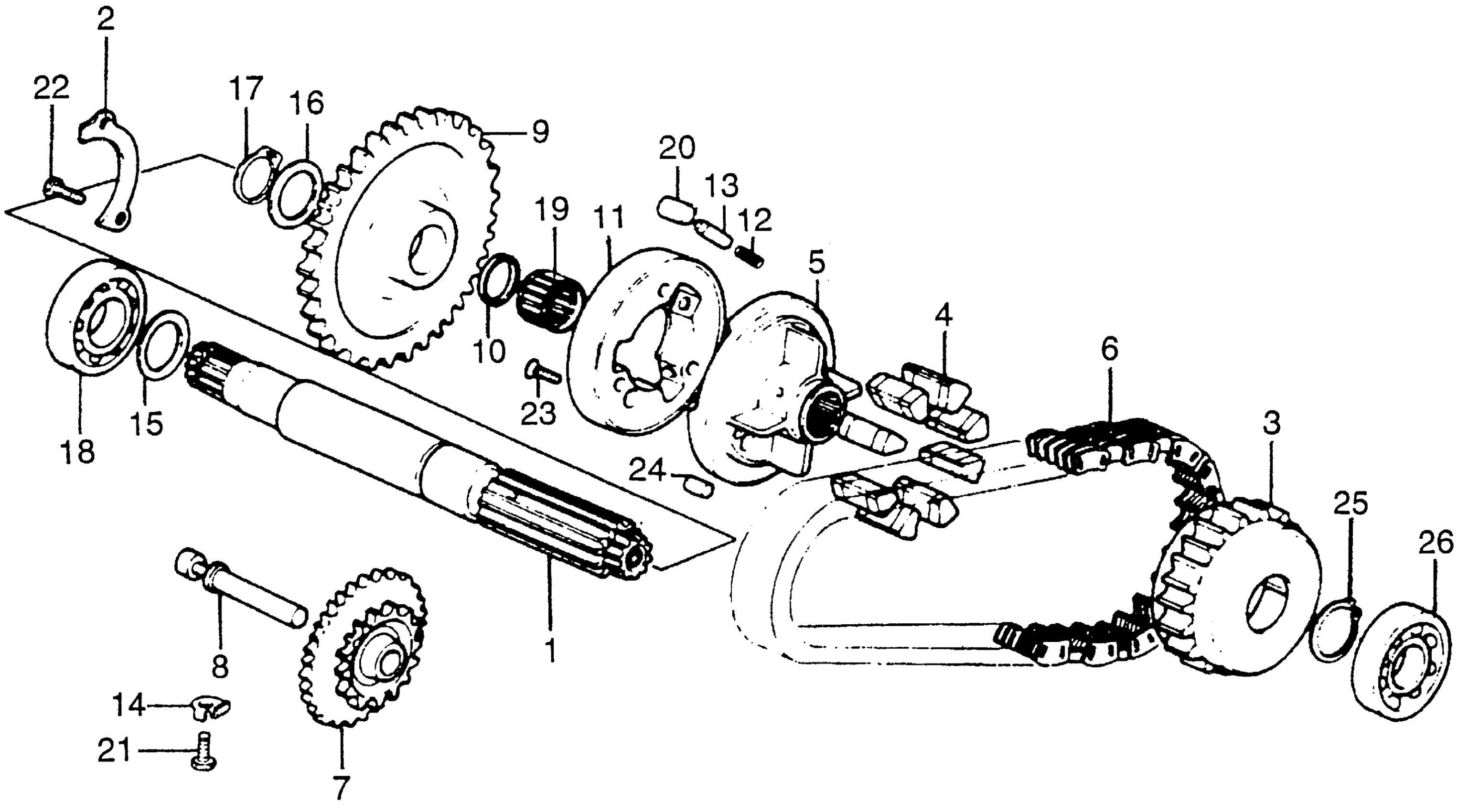

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 PRIMARY SHAFT + CHAIN Diagram

#

Description
Price

1

SHAFT, PRIMARY

23100-323-000

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE)

23102-323-000

Unavailable

3

SPROCKET, PRIMARY DRIVEN (28T) (NOT AVAILABLE)

23111-323-010

Unavailable

4

RUBBER, DAMPER

23114-323-000

Unavailable

5

HUB, PRIMARY DRIVE SPROCKET

23121-323-010

Unavailable

6

CHAIN, PRIMARY DRIVE (50L) (TSUBAKIMOTO) This part replaces 23131-323-003.

23131-426-003

Unavailable

6

CHAIN, PRIMARY DRIVE (50L) (TSUBAKIMOTO)

23131-426-003

Unavailable

7

GEAR, STARTER REDUCTION

28101-323-000

Unavailable

8

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-323-000

Unavailable

9

GEAR, STARTING CLUTCH (NOT AVAILABLE)

28111-363-000

Unavailable

10

SPACER (25MM) (NOT AVAILABLE)

28112-323-000

Unavailable

11

CLUTCH, STARTER (OUTER)

28120-323-000

Unavailable

12

SPRING, STARTER CLUTCH ROLLER

28125-323-000

Unavailable

13

CAP, STARTER CLUTCH ROLLER SPRING

28126-323-000

$5.05

14

WASHER, SPRING (6MM) (NOT AVAILABLE)

90433-283-000

Unavailable

15

WASHER, THRUST (22MM)

90456-323-000

Unavailable

16

WASHER, THRUST (25MM)

90555-700-000

Unavailable

17

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

18

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22) This part replaces 91001-116-008.

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$24.38

18

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

19

BEARING, NEEDLE (25X29X17) (NOT AVAILABLE)

91007-323-000

Unavailable

20

ROLLER (10.2X11.5)

91101-377-000

$3.01

20

ROLLER (10.2X11.5) This part replaces 91103-259-000.

91101-377-000

$3.01

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

22

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

23

SCREW, FLAT (6X18) (SOURCE: VINTAGE PARTS INC.)

93600-06018

Unavailable

24

PIN C, DOWEL (8X14)

94303-08140

$2.14

25

CIRCLIP (OUTER) (30MM)

94510-30000

$1.49

26

BEARING, RADIAL BALL (6205) This part replaces 96100-62050.

96100-62050-00

$18.63

26

BEARING, RADIAL BALL (6205)

96100-62050-00

$18.63

26

BEARING, RADIAL BALL (6205)

96100-62050-10

$20.75
