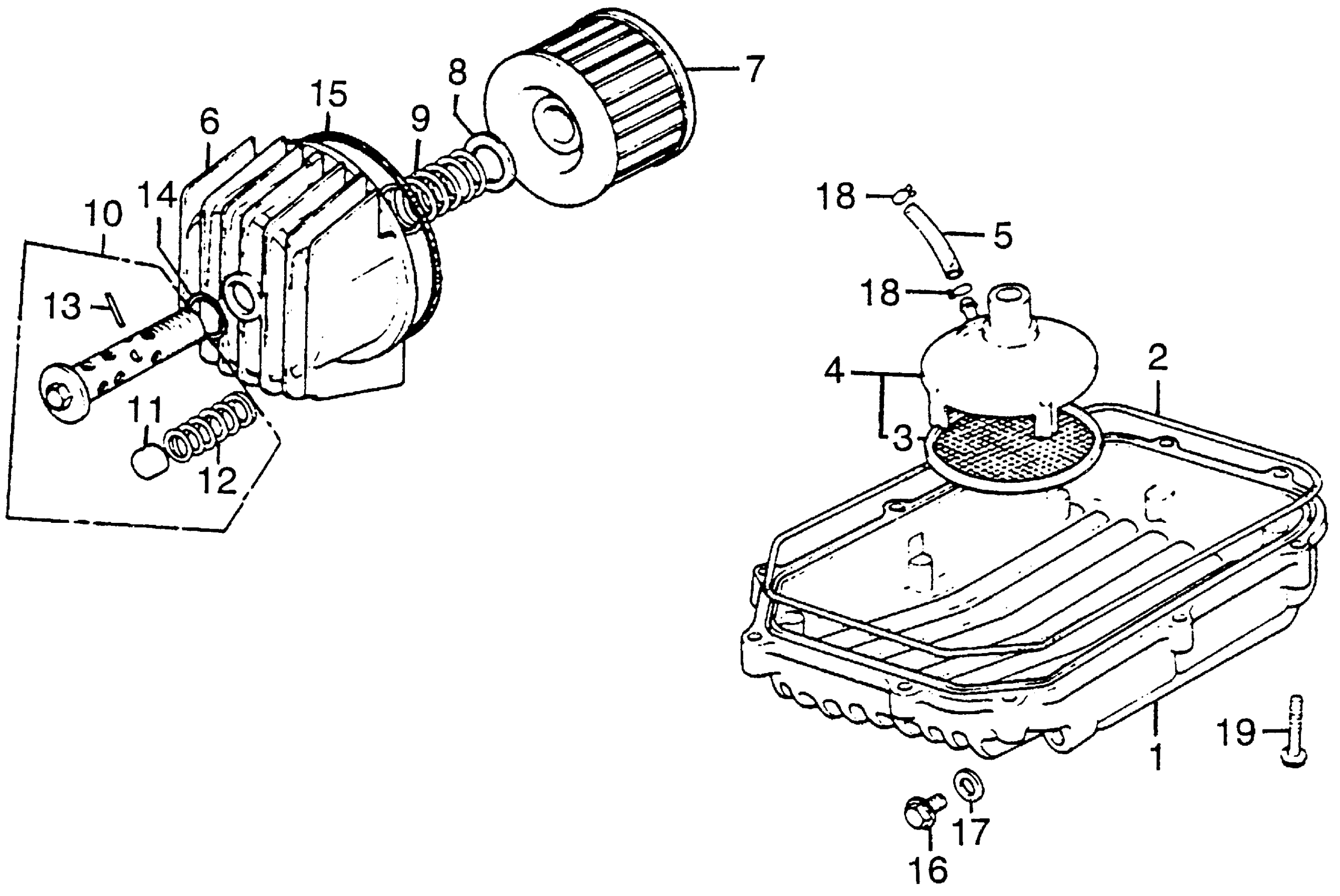

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 OIL FILTER + OIL PUMP Diagram

PAN, OIL (NOT AVAILABLE)

11210-323-000

Unavailable

GASKET, OIL PAN

11398-426-000

Unavailable

SCREEN, OIL STRAINER

15150-300-000

Unavailable

STRAINER, OIL (NOT AVAILABLE)

15150-374-000

Unavailable

PIPE, TRANSMISSION OIL (NOT AVAILABLE)

15154-374-000

Unavailable

CASE, OIL FILTER (NOT AVAILABLE)

15411-300-010

Unavailable

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$9.30

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$9.30

ELEMENT, OIL FILTER

15410-426-010

$9.30

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$9.30

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$9.30

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.85

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

VALVE, CHECK

15473-300-300

$4.25

SPRING, CHECK VALVE

15474-300-310

$4.89

PIN, SPRING SETTING

15477-300-300

$3.56

O-RING (15X2.5)

91301-MY9-003

$2.28

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.28

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.45

O-RING (89X4.5)

91316-425-003

$4.45

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

CLIP, TUBE (C11)

95002-70000

$1.56

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
