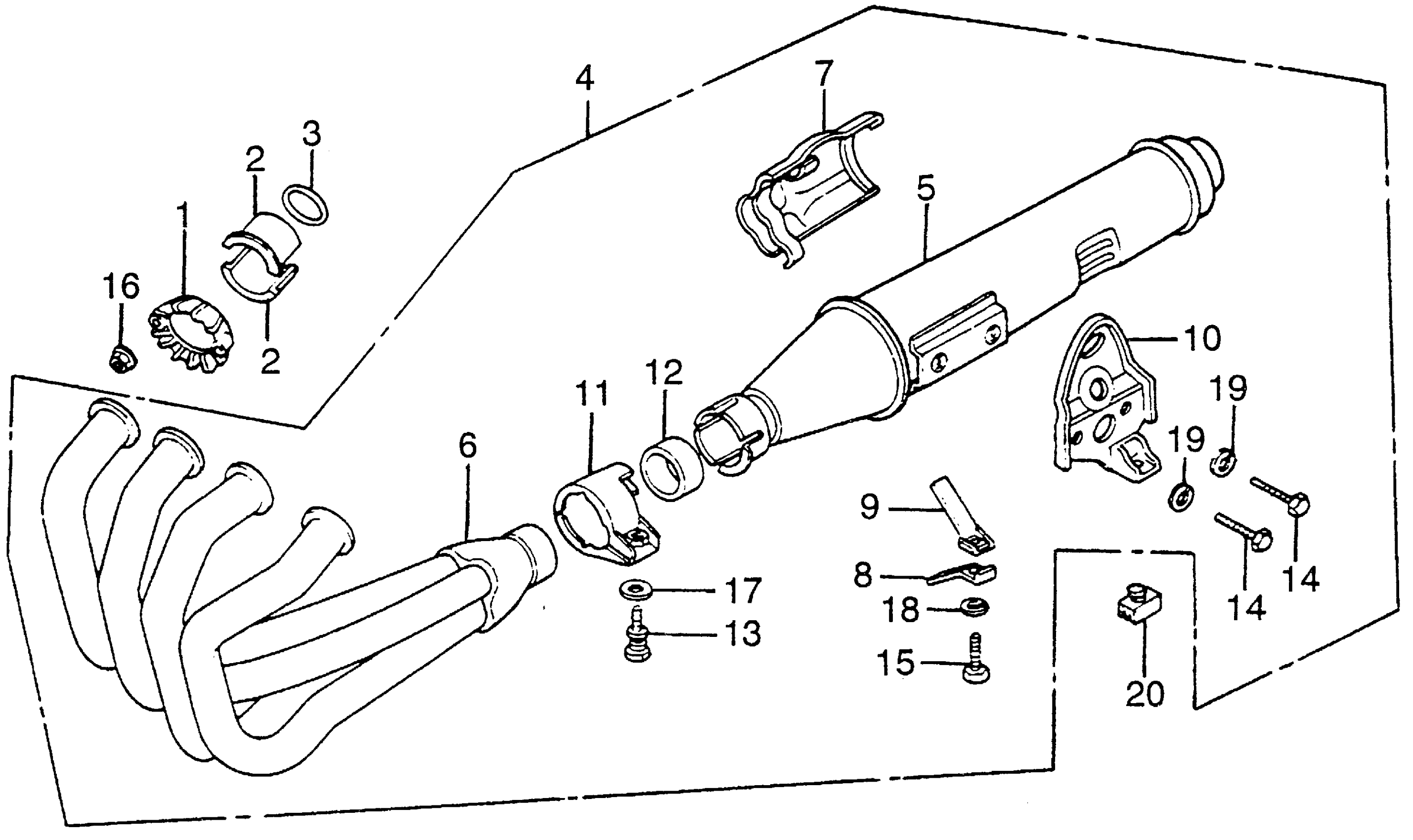

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-333-010

Unavailable

2

COLLAR, EX. JOINT

18233-107-000

$6.36

3

GASKET, EX. PIPE This part replaces 18291-390-000.

18291-390-306

$5.77

3

GASKET, EX. PIPE

18291-390-306

$5.77

4

MUFFLER (NOT AVAILABLE)

18300-390-000

Unavailable

5

MUFFLER (NOT AVAILABLE) This part replaces 18310-390-000.

18310-390-003

Unavailable

5

MUFFLER (NOT AVAILABLE)

18310-390-003

Unavailable

6

PIPE, EX. (NOT AVAILABLE)

18316-390-003

Unavailable

7

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18325-390-000

Unavailable

8

BAND A, PROTECTOR (NOT AVAILABLE)

18326-390-000

Unavailable

9

BAND B, PROTECTOR (NOT AVAILABLE)

18327-390-000

Unavailable

10

STAY, MUFFLER (NOT AVAILABLE)

18350-390-000

Unavailable

11

BAND, MUFFLER

18371-390-000

Unavailable

12

GASKET, MUFFLER This part replaces 18391-390-000.

18391-390-405

Unavailable

13

BOLT, MUFFLER SETTING (NOT AVAILABLE)

90105-390-000

Unavailable

14

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

14

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

15

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$1.49

15

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

16

NUT, FLANGE (6MM)

94050-06080

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49

20

RUBBER A, STAND STOPPER

95011-61000

$1.49
