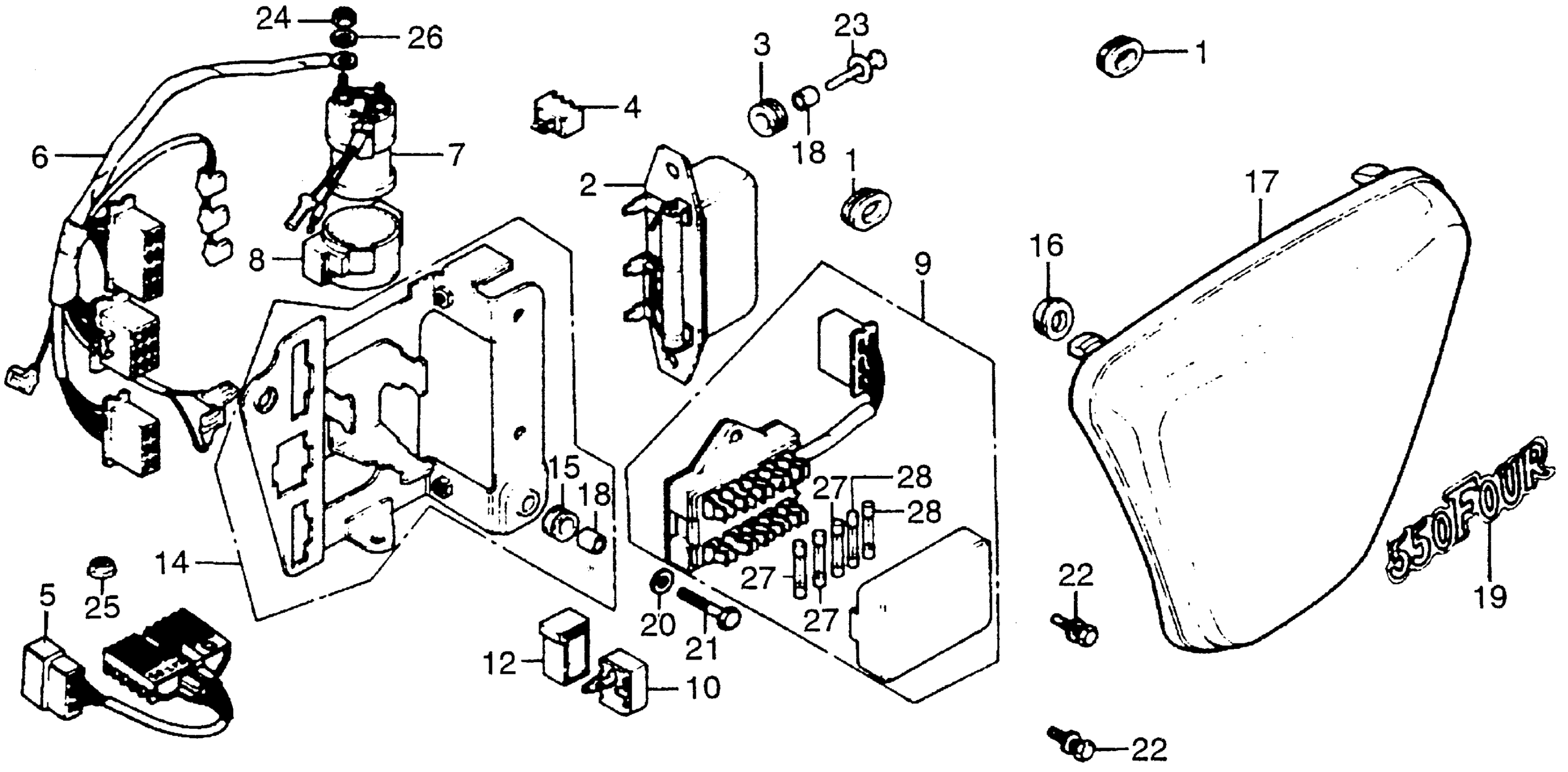

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 LEFT SIDE COVER + ELECTRIC PLATE Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

REGULATOR ASSY. (HITACHI)

31400-300-035

Unavailable

3

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

4

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

5

RECTIFIER ASSY.

31700-333-008

Unavailable

6

SUB-WIRE HARNESS (NOT AVAILABLE)

32105-390-000

Unavailable

7

SWITCH ASSY., STARTER MAGNETIC

35850-375-000

Unavailable

8

RUBBER, MAGNETIC SHOCK This part replaces 35856-KR3-670.

35856-413-010

$10.15

8

RUBBER, MAGNETIC SHOCK This part replaces 35856-286-010.

35856-413-010

$10.15

8

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

8

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

9

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE) This part replaces 38200-377-005.

38200-377-305

Unavailable

9

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE)

38200-377-305

Unavailable

10

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

10

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

10

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

10

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

12

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

14

PLATE, ELECTRIC

50330-390-000

Unavailable

15

RUBBER A, RR. FENDER

80105-061-000

$4.01

16

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

17

COVER, L. SIDE *R2CF* (FLAKE SUNRISE ORANGE) (NOT AVAILABLE)

83700-390-000ZB

Unavailable

17

COVER, L. SIDE *PB7C* (CANDY SWORD BLUE) (NOT AVAILABLE)

83700-390-000ZF

Unavailable

17

COVER, L. SIDE *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

83700-390-000ZG

Unavailable

18

COLLAR, ELECTRIC PLATE (NOT AVAILABLE)

84706-404-000

Unavailable

19

EMBLEM, SIDE COVER

87124-390-000

Unavailable

20

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

20

WASHER (18MM)

90581-831-650

$1.87

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

BOLT-WASHER (6X16)

93401-06016-00

$1.55

22

BOLT-WASHER (6X16) This part replaces 93411-06016-00.

93401-06016-00

$1.55

22

BOLT-WASHER (6X16) This part replaces 93481-06016-00.

93401-06016-00

$1.55

23

BOLT-WASHER (6X20)

93404-06020-08

$1.62

23

BOLT-WASHER (6X20) This part replaces 93494-06020-08.

93404-06020-08

$1.62

24

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

24

NUT, HEX. (6MM)

94002-06080-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

25

NUT, FLANGE (8MM)

94050-08080

$1.49

26

WASHER, SPRING (6MM)

94111-06800

$1.49

27

FUSE B (7A)

98200-20700

$1.49

28

FUSE B (15A)

98200-21500

$1.49
