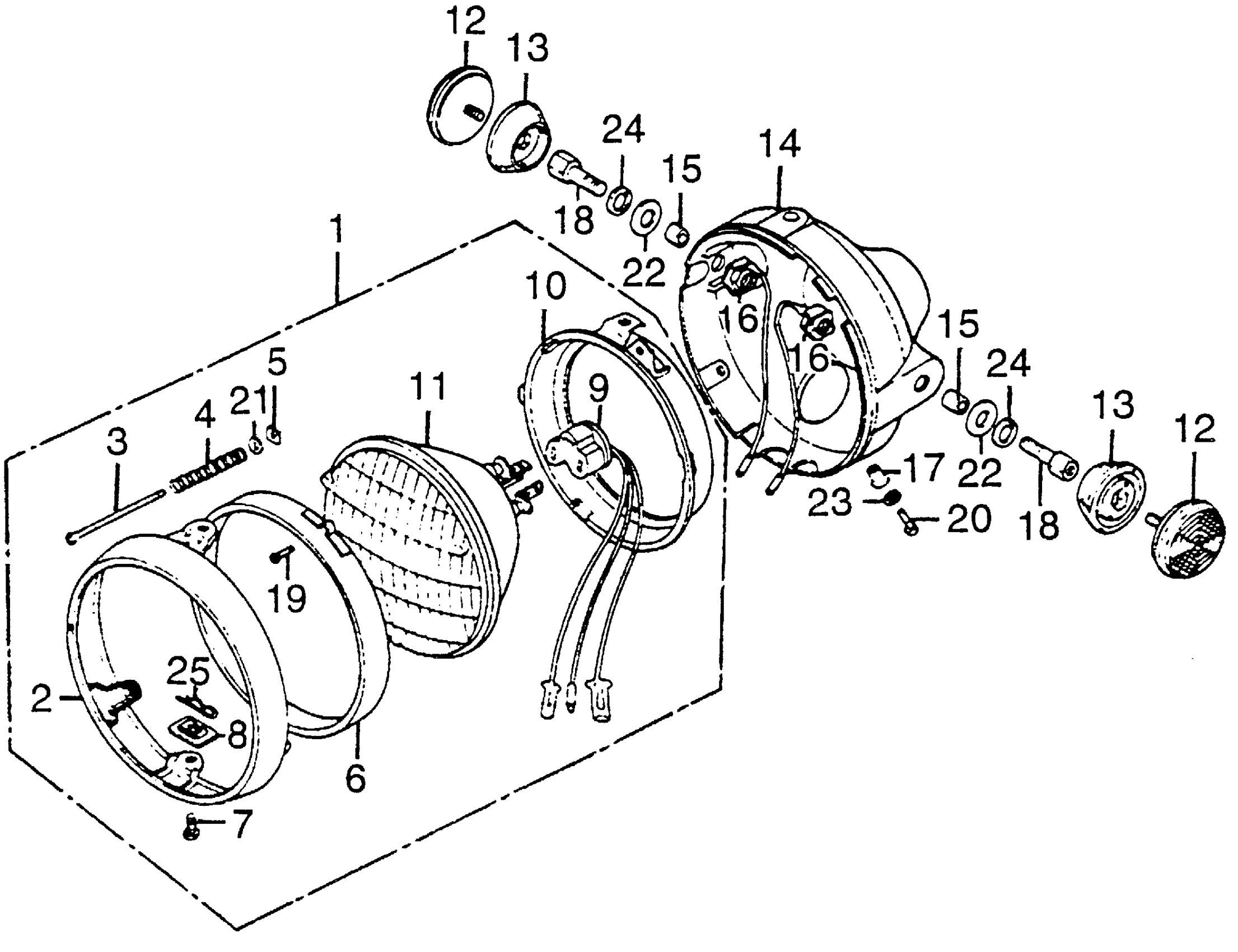

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 HEADLIGHT Diagram

HEADLIGHT ASSY. (12V 50/40W) (NOT AVAILABLE)

33100-341-701

Unavailable

RIM, HEADLIGHT This part replaces 33101-300-673.

33101-405-671

$71.39

RIM, HEADLIGHT

33101-405-671

$71.39

SCREW, BEAM ADJUSTING This part replaces 33103-300-003.

33103-MW3-610

$7.90

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

SCREW, BEAM ADJUSTING This part replaces 33103-371-980.

33103-MW3-610

$7.90

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

NUT, HEADLIGHT BEAM ADJ.

33117-001-003

Unavailable

RING, RETAINING (NOT AVAILABLE)

33121-300-672

Unavailable

SCREW, UNIT HOLDER

33125-292-670

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

SOCKET, HEADLIGHT (NOT AVAILABLE)

33130-300-003

Unavailable

SOCKET, HEADLIGHT (NOT AVAILABLE) This part replaces 33130-341-701.

33130-300-003

Unavailable

RING, SETTING

33153-300-671

$35.21

SET UNIT,HEAD LIG This part replaces 33321-341-701.

33120-431-505

Unavailable

SET UNIT,HEAD LIG This part replaces 33321-371-672.

33120-431-505

Unavailable

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

BASE, FR. REFLECTOR

33743-375-000

Unavailable

CASE, HEADLIGHT *NH1* (STANLEY) (BLACK) (NOT AVAILABLE)

61301-375-003B

Unavailable

COLLAR, HEADLIGHT CASE

61302-300-000

Unavailable

WASHER, HEADLIGHT CASE

61303-336-000

Unavailable

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

BOLT, HEADLIGHT STAY (NOT AVAILABLE)

90120-377-000

Unavailable

SCREW, PAN (3X12) (NOT AVAILABLE)

93500-03012-3B

Unavailable

SCREW, PAN (5X16)

93500-05016-0B

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, LOCK (5MM)

94251-05000

$1.49
