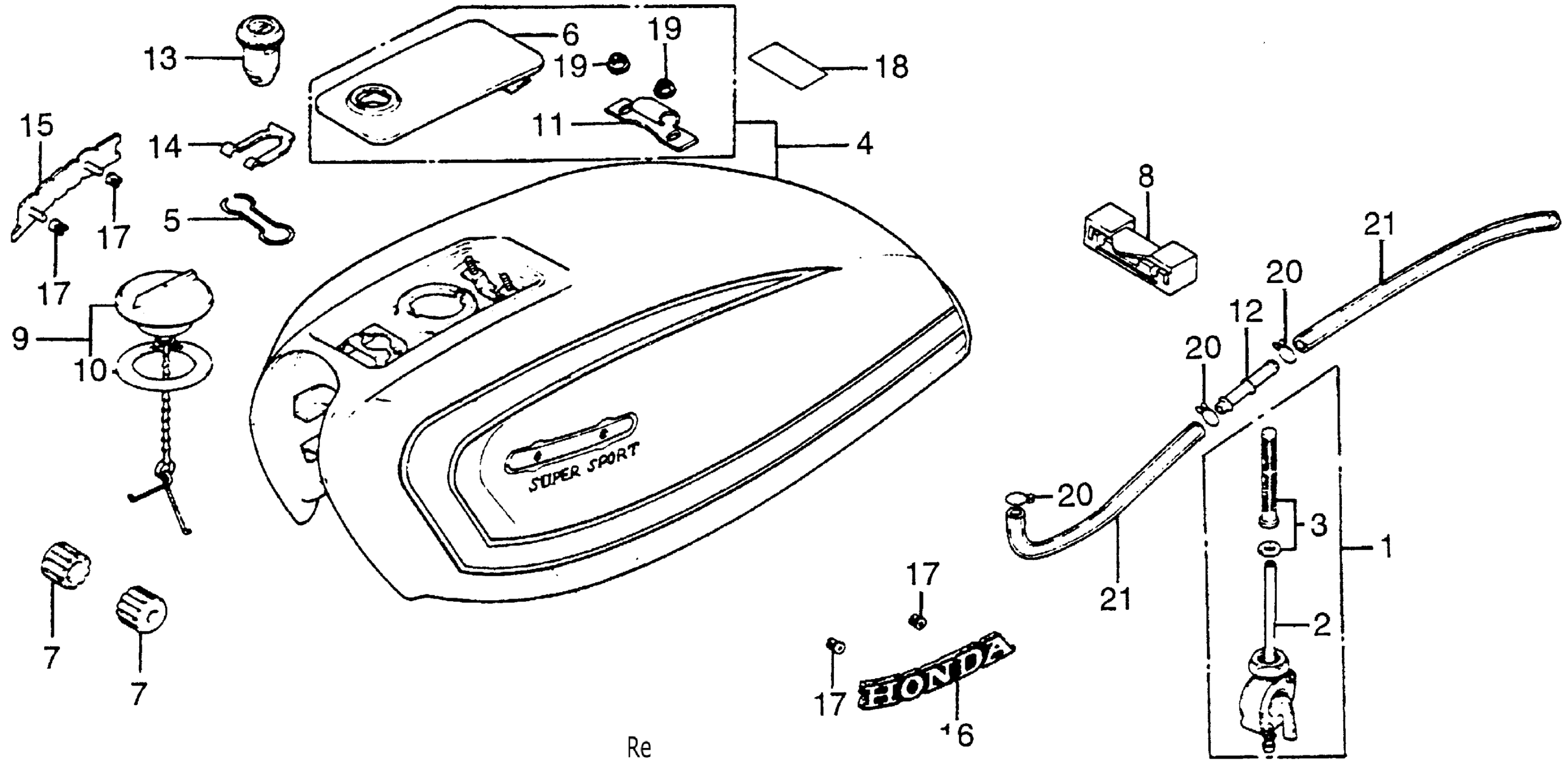

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-388-005.

16950-388-015

Unavailable

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-388-015

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE) This part replaces 16951-388-005.

16951-388-015

Unavailable

2

BODY, PETCOCK (NOT AVAILABLE)

16951-388-015

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16952-388-005.

16952-388-015

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-388-015

Unavailable

4

TANK SUB-ASSY., FUEL *PB7C* (CANDY SWORD BLUE) (NOT AVAILABLE)

17525-390-780ZA

Unavailable

4

TANK SUB-ASSY., FUEL *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

17525-390-780ZC

Unavailable

5

CLIP, FILLER LOCK (NOT AVAILABLE)

17526-390-000

Unavailable

6

LID, FUEL FILLER *NH57* (EXCEL BLACK) (NOT AVAILABLE)

17531-404-670ZA

Unavailable

7

RUBBER, FR. FUEL TANK

17611-283-010

$8.04

8

RUBBER, RR. FUEL TANK

17613-286-000

$15.86

9

CAP, FUEL TANK This part replaces 17620-377-720.

17620-399-010

Unavailable

9

CAP, FUEL TANK This part replaces 17620-399-000.

17620-399-010

Unavailable

9

CAP, FUEL TANK

17620-399-010

Unavailable

10

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

10

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

11

SPRING, FUEL FILLER LID (NOT AVAILABLE)

17735-390-000

Unavailable

12

JOINT, DRAIN CONNECTING TUBE (NOT AVAILABLE)

17738-393-000

Unavailable

13

LOCK, FILLER LID (HONDALOCK)

37220-390-007

Unavailable

14

SPRING, LOCK SET

37221-390-000

Unavailable

15

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-390-780

Unavailable

16

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-390-780

Unavailable

17

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

17

NUT, EMBLEM CLAMP

87311-634-600

$4.79

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

19

NUT, FLANGE (6MM)

94050-06080

$1.49

20

CLIP, TUBE (B12.5)

95002-02130

$1.49

21

TUBE (9X13X500) This part replaces 95003-27050-30.

95003-27050-31S

Unavailable
