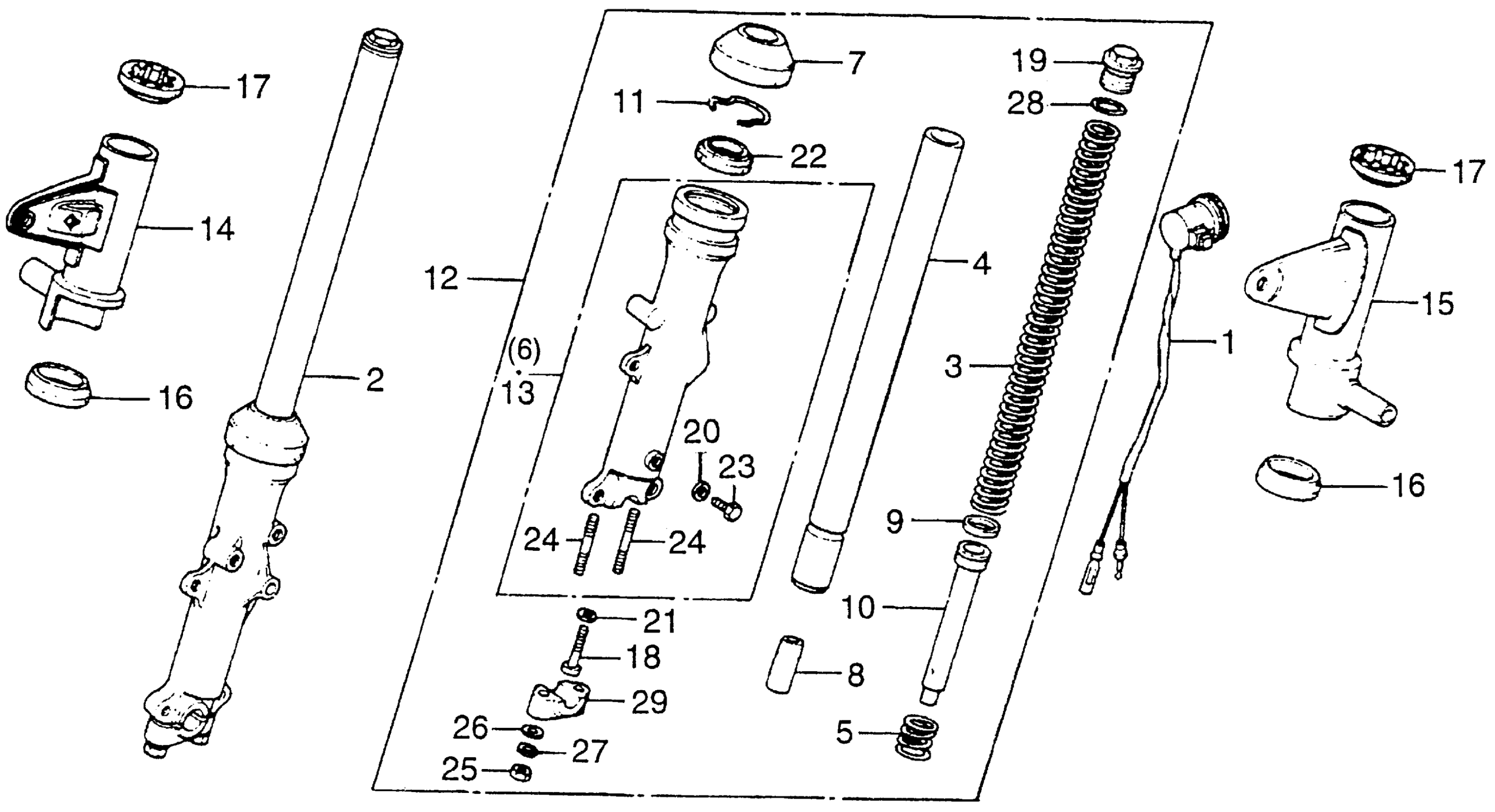

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 FRONT FORK Diagram

#

Description
Price

1

BUZZER ASSY., TURN SIGNAL (NOT AVAILABLE)

38400-341-674

Unavailable

2

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-404-003

Unavailable

3

SPRING, FR. FORK (SHOWA) (NOT AVAILABLE)

51401-404-003

Unavailable

4

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-404-003

Unavailable

5

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

6

CASE, R. (LOWER) (SHOWA) (NOT AVAILABLE)

51421-393-003

Unavailable

7

DUST SEAL, FR. FORK

51425-375-003

Unavailable

8

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

9

RING, PISTON

51437-329-010

$7.14

10

SEAT, FR. FORK (LOWER) (SHOWA)

51440-404-003

Unavailable

11

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

11

RING, OIL SEAL STOPPER This part replaces 51466-375-000.

51447-KL4-951

$4.03

12

FORK ASSY., L. FR. (SHOWA)

51500-404-003

Unavailable

13

CASE, L. (LOWER) (SHOWA)

51521-393-003

Unavailable

14

COVER, R. FR. FORK (NOT AVAILABLE)

51602-404-670

Unavailable

15

COVER, L. FR. FORK

51606-404-670

Unavailable

16

RUBBER, FR. FORK COVER (LOWER) | Use up to Frame SN 2112169

51622-292-010

$5.84

16

RUBBER B, FR. FORK COVER | Use from Frame SN 2112170

51622-323-000

Unavailable

17

RUBBER, HEADLIGHT STAY

61315-340-000

Unavailable

18

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

18

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

19

BOLT, FR. FORK

90123-300-000

$47.61

20

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

21

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

22

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-300-033.

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-323-013.

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-434-003.

91255-KBH-003

$13.24

22

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

23

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

23

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

24

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

24

BOLT, STUD (8X50)

92900-08028-3B

$1.59

25

NUT, HEX. (8MM)

94030-08000

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

WASHER, SPRING (8MM)

94111-08000

$1.49

28

O-RING (23X2.8)

94608-50000

$1.49

29

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
