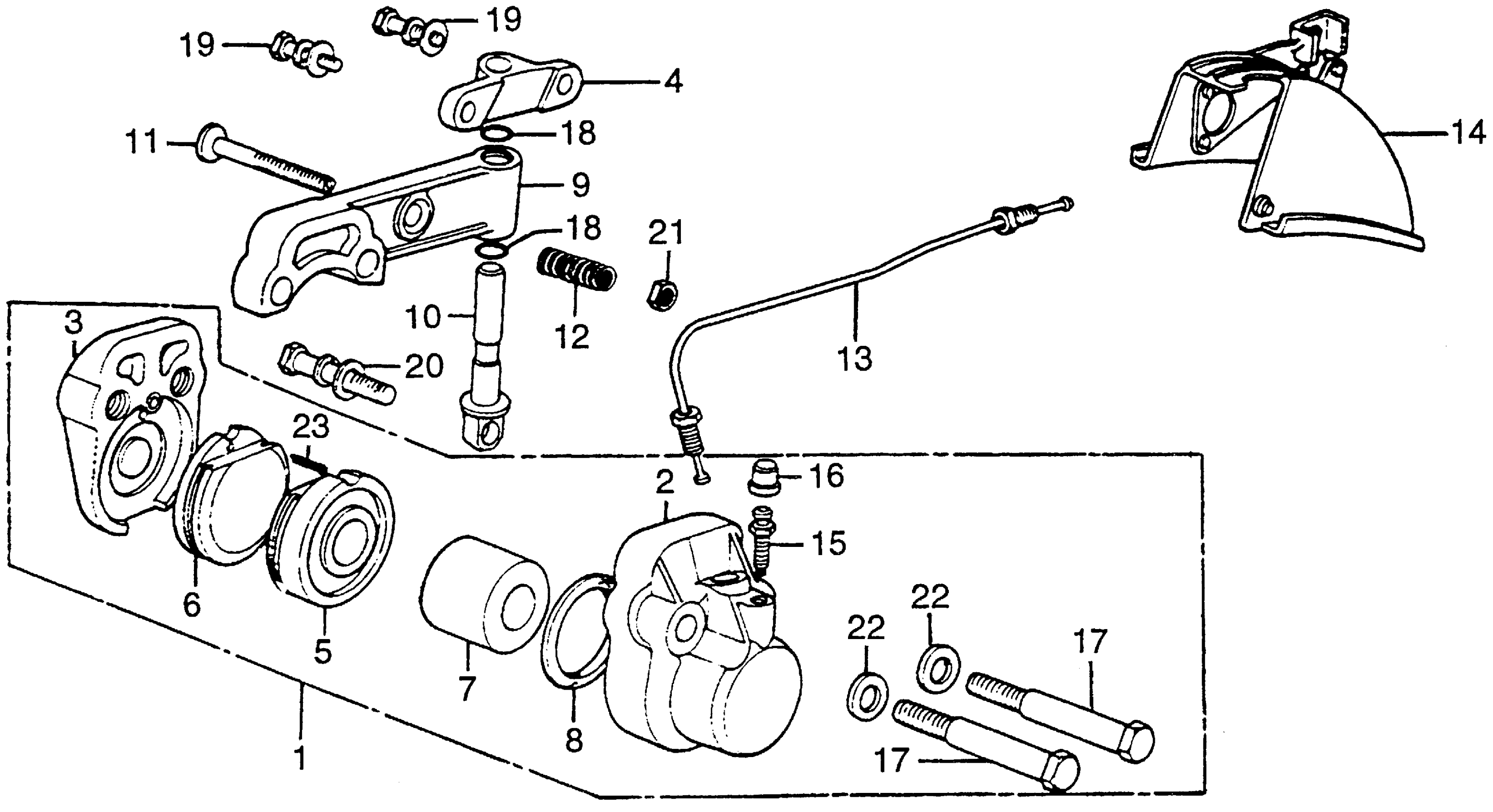

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD, SET BRAKE

06455-390-405

Unavailable

NI

PAD, SET BRAKE This part replaces 451A0-390-670.

06455-390-405

Unavailable

1

CALIPER ASSY This part replaces 45100-390-003.

45100-390-405

Unavailable

2

CALIPER A (TOKIKO) (NOT AVAILABLE)

45101-323-013

Unavailable

3

CALIPER B (TOKIKO) (NOT AVAILABLE)

45102-323-003

Unavailable

4

JOINT, CALIPER HOLDER

45104-317-700

Unavailable

5

PAD A, A (ASAHI) This part replaces 45105-390-003.

45105-390-305

Unavailable

5

PAD A, A (ASAHI) This part replaces 45105-390-006.

45105-390-305

Unavailable

5

PAD A, A (ASAHI)

45105-390-305

Unavailable

6

PAD B, B (ASAHI) This part replaces 45106-390-003.

45106-390-305

Unavailable

6

PAD B, B (ASAHI) This part replaces 45106-390-006.

45106-390-305

Unavailable

6

PAD B, B (ASAHI)

45106-390-305

Unavailable

7

PISTON

45107-323-020

Unavailable

8

SEAL, PISTON (TOKIKO)

45108-300-003

$11.70

9

HOLDER, CALIPER (NOT AVAILABLE)

45115-323-010

Unavailable

9

HOLDER, CALIPER (NOT AVAILABLE) This part replaces 45115-390-003.

45115-323-010

Unavailable

10

PIN, CALIPER HOLDER This part replaces 45116-323-020.

45116-367-690

Unavailable

11

BOLT, CALIPER ADJUSTING

45117-341-700

$5.85

12

SPRING, CALIPER ADJ.

45119-300-020

$5.19

13

PIPE, FR. BRAKE

45128-323-020

$14.36

14

COVER, DISK

45140-323-670

Unavailable

15

VALVE, BLEEDER (TOKIKO)

45224-579-013

$16.77

16

CAP, BLEEDER SCREW (TOKIKO)

45225-579-013

Unavailable

17

BOLT, CALIPER SETTING

90165-323-000

$9.49

18

O-RING (9.5X1.7)

91259-333-000

$3.69

19

BOLT-WASHER (6X25) (NOT AVAILABLE)

93483-06025-00

Unavailable

20

BOLT-WASHER (8X35) (NOT AVAILABLE)

93483-08035-00

Unavailable

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

WASHER, PLAIN (10MM)

94102-10000

$1.49

23

PIN, COTTER (1.6X22)

94201-16220

$1.49
