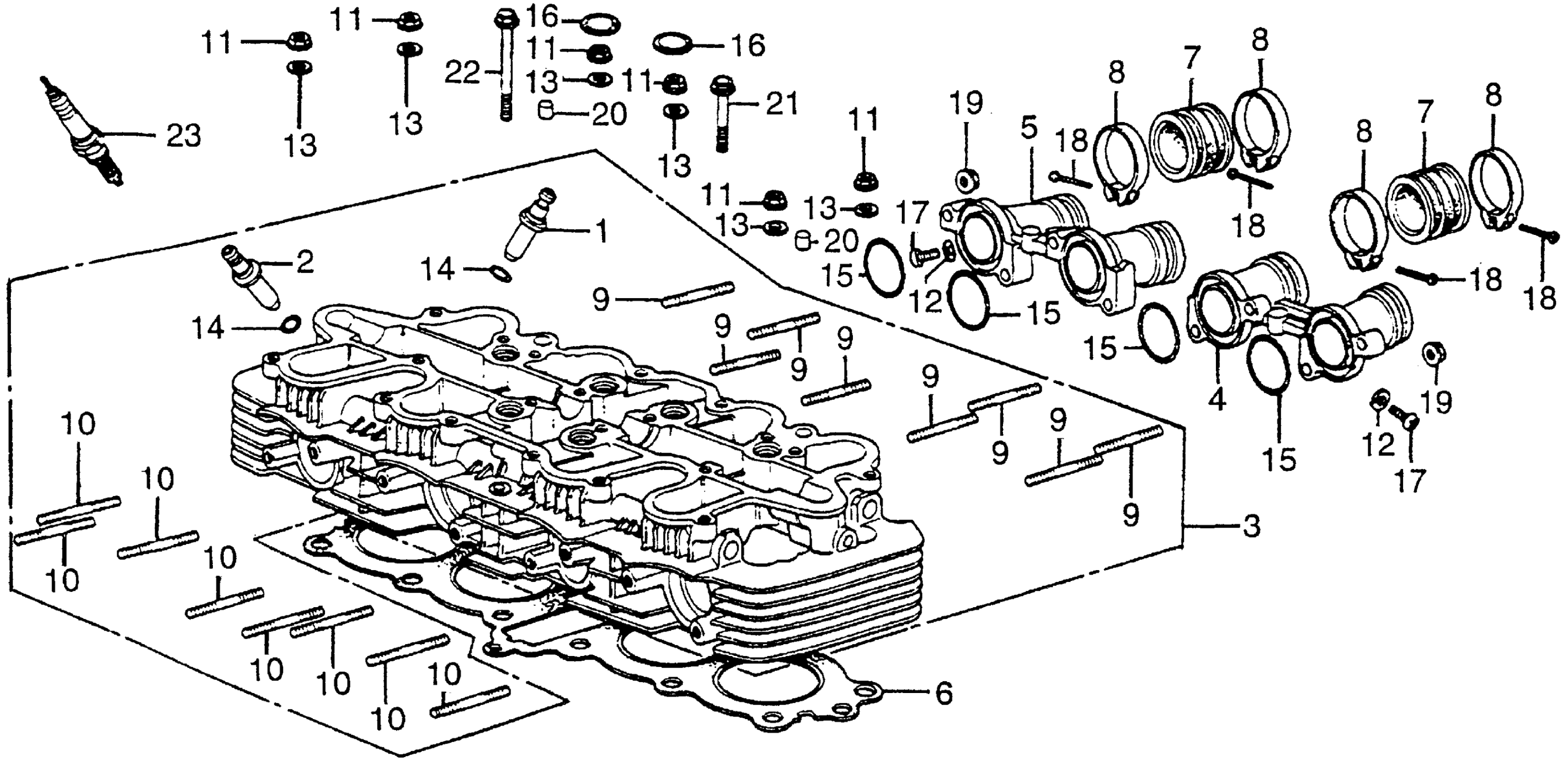

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-323-300.

12023-465-405

$18.90

1

GUIDE, VALVE

12023-465-405

$18.90

2

GUIDE, EX. VALVE This part replaces 12023-323-300.

12023-324-405

Unavailable

2

GUIDE, EX. VALVE

12023-324-405

Unavailable

3

CYLINDER HEAD

12200-374-000

Unavailable

4

MANIFOLD A, IN. (NOT AVAILABLE)

12241-323-000

Unavailable

5

MANIFOLD B, IN. (NOT AVAILABLE)

12242-323-000

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-374-005.

12251-374-306

Unavailable

6

GASKET, CYLINDER HEAD

12251-374-306

Unavailable

7

INSULATOR, CARBURETOR

16211-323-000

$15.27

8

BAND B, AIR CLEANER CONNECTING

17256-053-010

Unavailable

9

BOLT, STUD (6X32) (NOT AVAILABLE)

90043-323-300

Unavailable

10

BOLT, STUD (6X40)

90044-323-300

$3.13

11

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

11

NUT, FLANGE (8MM)

94050-08000

$1.49

11

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

12

WASHER, SEALING (5MM)

90452-323-000

$1.59

13

WASHER, THRUST (14MM)

90485-035-000

$2.92

14

O-RING (10X1.6)

91301-200-000

$3.01

15

O-RING (30.8MM)

91302-001-020

$3.75

16

RUBBER, SEALING

91318-300-013

$4.85

17

SCREW, PAN (5X6)

93500-05006-0A

$1.49

18

SCREW, PAN (5X20)

93500-05020-0A

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

PIN B, DOWEL (10X16)

94302-10160

$1.69

21

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

21

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

22

BOLT, FLANGE (6X65) This part replaces 95700-06065-00.

95701-06065-00

$1.51

22

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

23

SPARK PLUG (D7EA) (NGK) This part replaces 98069-57711.

98069-57717

$2.44

23

SPARK PLUG (D7EA) (NGK)

98069-57717

$2.44

23

SPARK PLUG (D7EA) (NGK) This part replaces 98069-57723.

98069-57717

$2.44
