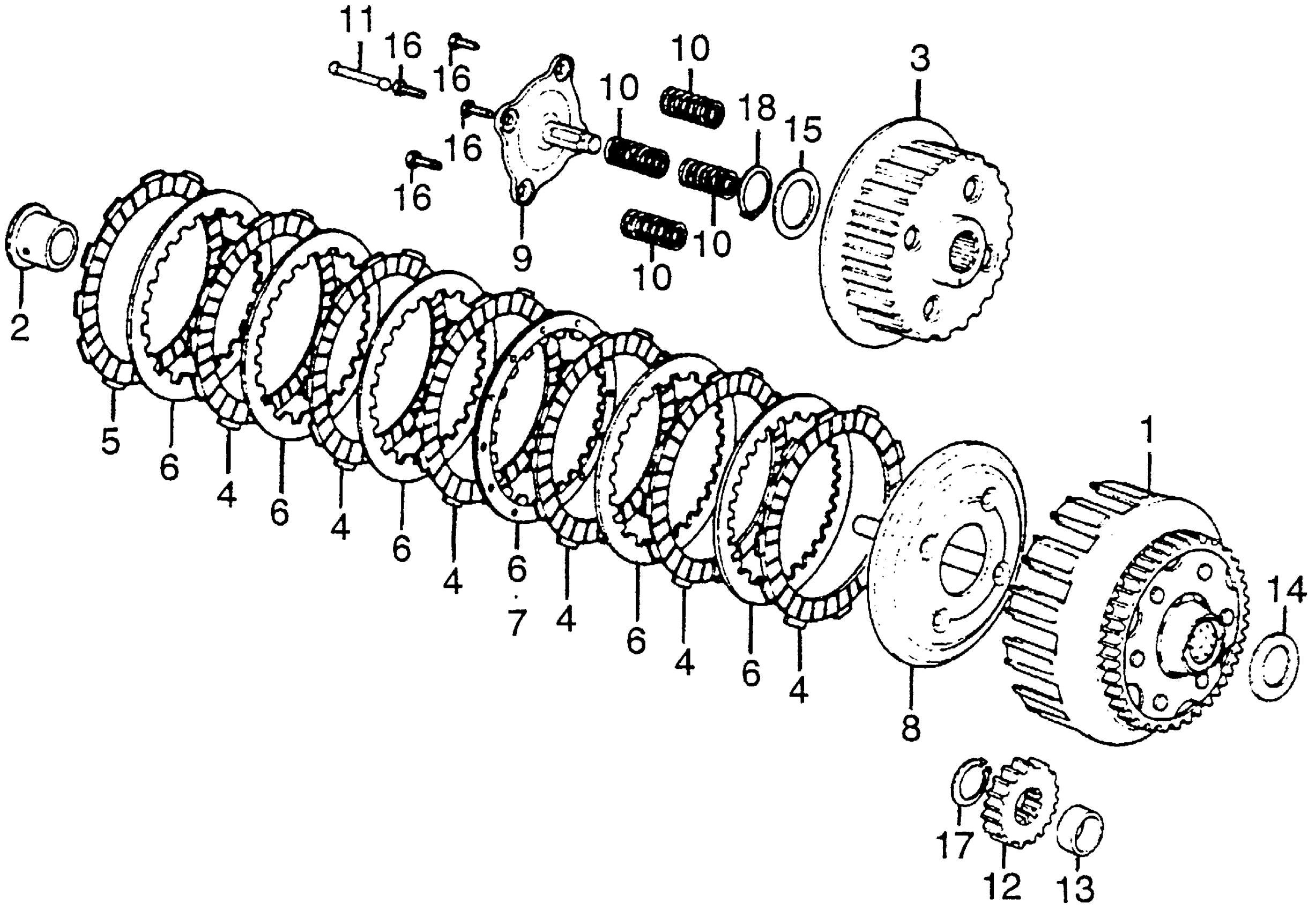

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (63T) (NOT AVAILABLE)

22100-390-000

Unavailable

2

COLLAR (25MM) (NOT AVAILABLE)

22116-390-300

Unavailable

3

CENTER, CLUTCH

22120-390-000

Unavailable

4

DISK, CLUTCH FRICTION

22201-286-010

$19.81

5

DISK B, CLUTCH FRICTION This part replaces 22202-390-000.

22202-392-000

$20.20

5

DISK B, CLUTCH FRICTION

22202-392-000

$20.20

6

PLATE, CLUTCH | Use up to Engine SN 1139188 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

6

PLATE B, CLUTCH | Use from Engine SN 1139189

22321-329-000

$16.92

6

PLATE, CLUTCH | Use up to Engine SN 1139188 This part replaces 22321-374-000.

22321-GHB-811

$12.02

7

PLATE B, CLUTCH (NOT AVAILABLE) | Use from Engine SN 1139189

22322-390-000

Unavailable

8

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-390-000

Unavailable

9

PLATE, CLUTCH LIFTER

22360-390-000

Unavailable

10

SPRING, CLUTCH

22401-374-000

Unavailable

11

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-333-000

Unavailable

12

GEAR, PRIMARY DRIVE (24T)

23103-374-000

Unavailable

13

COLLAR (22X13.6)

23105-323-000

Unavailable

14

WASHER, THRUST (25MM) (NOT AVAILABLE)

90455-374-000

Unavailable

15

SPACER (0.1MM) (NOT AVAILABLE)

90458-323-010

Unavailable

15

SPACER (0.3MM) (NOT AVAILABLE)

90459-323-010

Unavailable

15

SPACER (0.5MM) (NOT AVAILABLE)

90460-323-010

Unavailable

16

BOLT, HEX. (6X22) This part replaces 92020-06022.

92101-06022-0A

$1.54

16

BOLT, HEX. (6X22) This part replaces 92022-06022.

92101-06022-0A

$1.54

16

BOLT, HEX. (6X22) This part replaces 92022-06022-0A.

92101-06022-0A

$1.54

16

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

17

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

18

CIRCLIP (OUTER) (25MM) (SOURCE: VINTAGE PARTS INC.)

94510-25150

Unavailable
