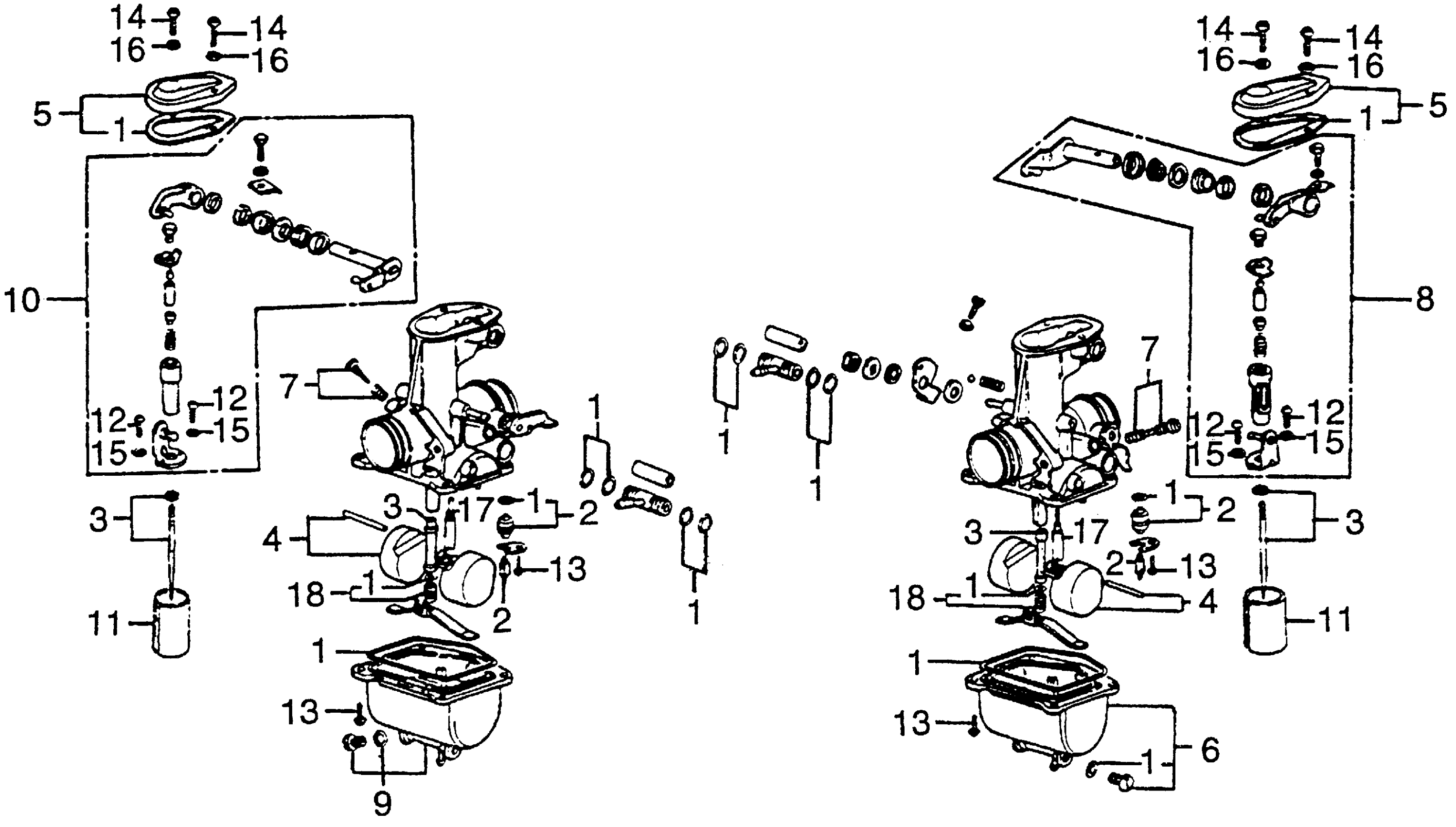

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 CARBURETOR COMPONENTS Diagram

GASKET SET This part replaces 16010-323-004.

16010-323-315

$21.27

GASKET SET This part replaces 16010-323-305.

16010-323-315

$21.27

VALVE SET, FLOAT

16011-329-004

$44.11

NEEDLE SET, JET (NOT AVAILABLE)

16012-390-004

Unavailable

FLOAT SET

16013-329-004

Unavailable

TOP SET (NOT AVAILABLE)

16014-323-004

Unavailable

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-323-004

Unavailable

SCREW SET A (NOT AVAILABLE)

16016-390-004

Unavailable

ARM SET A, LINK (NOT AVAILABLE)

16018-323-004

Unavailable

CHAMBER SET B, FLOAT

16023-323-004

Unavailable

ARM SET B, LINK (NOT AVAILABLE)

16031-323-004

Unavailable

VALVE, THROTTLE (NOT AVAILABLE)

16111-323-004

Unavailable

SCREW, PAN (3X10)

93500-03010-0A

$1.49

SCREW, PAN (4X10)

93500-04010-0A

$1.49

SCREW, PAN (5X16)

93500-05016-0A

$1.49

WASHER, SPRING (3MM)

94111-03000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

JET, SLOW (#38)

99124-076-0380

$9.87

JET SET, SECONDARY MAIN (#98) (NOT AVAILABLE)

99202-601-0980

Unavailable
