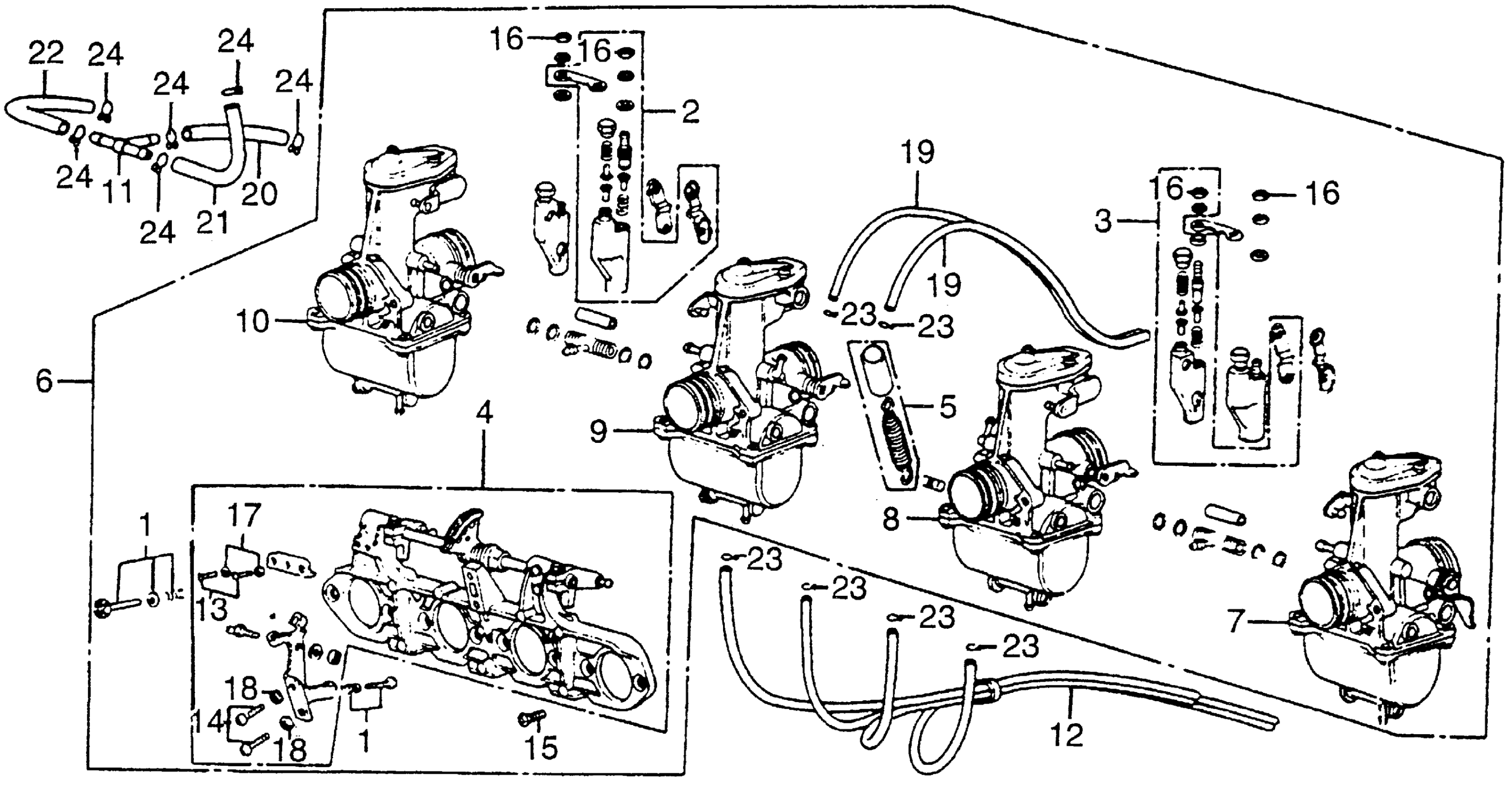

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 CARBURETOR Diagram

#

Description
Price

1

SCREW SET B (NOT AVAILABLE)

16028-323-004

Unavailable

2

HOLDER SET A, ADJ.

16029-323-004

Unavailable

3

HOLDER SET B, ADJ. (NOT AVAILABLE)

16030-323-004

Unavailable

4

PLATE SET, STAY (NOT AVAILABLE)

16035-390-004

Unavailable

5

TUBE SET, PROTECT (NOT AVAILABLE)

16036-323-004

Unavailable

6

CARBURETOR ASSY. (NOT AVAILABLE)

16100-390-014

Unavailable

7

CARBURETOR ASSY. 1

16101-390-004

Unavailable

8

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-390-004

Unavailable

9

CARBURETOR ASSY. 3

16103-390-004

Unavailable

10

CARBURETOR ASSY. 4 (NOT AVAILABLE)

16104-390-004

Unavailable

11

JOINT, FUEL

16235-657-000

$12.13

12

TUBE ASSY., OVERFLOW (NOT AVAILABLE) | Use up to Engine SN 1139863 This part replaces 16290-323-000.

16290-323-010

Unavailable

12

TUBE ASSY., OVERFLOW (NOT AVAILABLE)

16290-323-010

Unavailable

13

SCREW, PAN (5X12)

93500-05012-0A

$1.49

14

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

14

SCREW, PAN (6X12)

93500-06012-0A

$1.49

14

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

15

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

15

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

16

NUT, HEX. (5MM)

94001-05000-0S

$2.74

17

WASHER, SPRING (5MM)

94111-05000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

20

BULK HOSE, FUEL (5.5X3000) (5.5X80)

95001-55003-60M

$47.32

21

BULK HOSE, FUEL (5.5X3000) (5.5X100)

95001-55003-60M

$47.32

22

BULK HOSE, FUEL (5.5X3000) (5.5X200)

95001-55003-60M

$47.32

23

CLIP, TUBE (B7)

95002-02070

$1.80

24

CLIP, TUBE (B10)

95002-02100

$1.90
