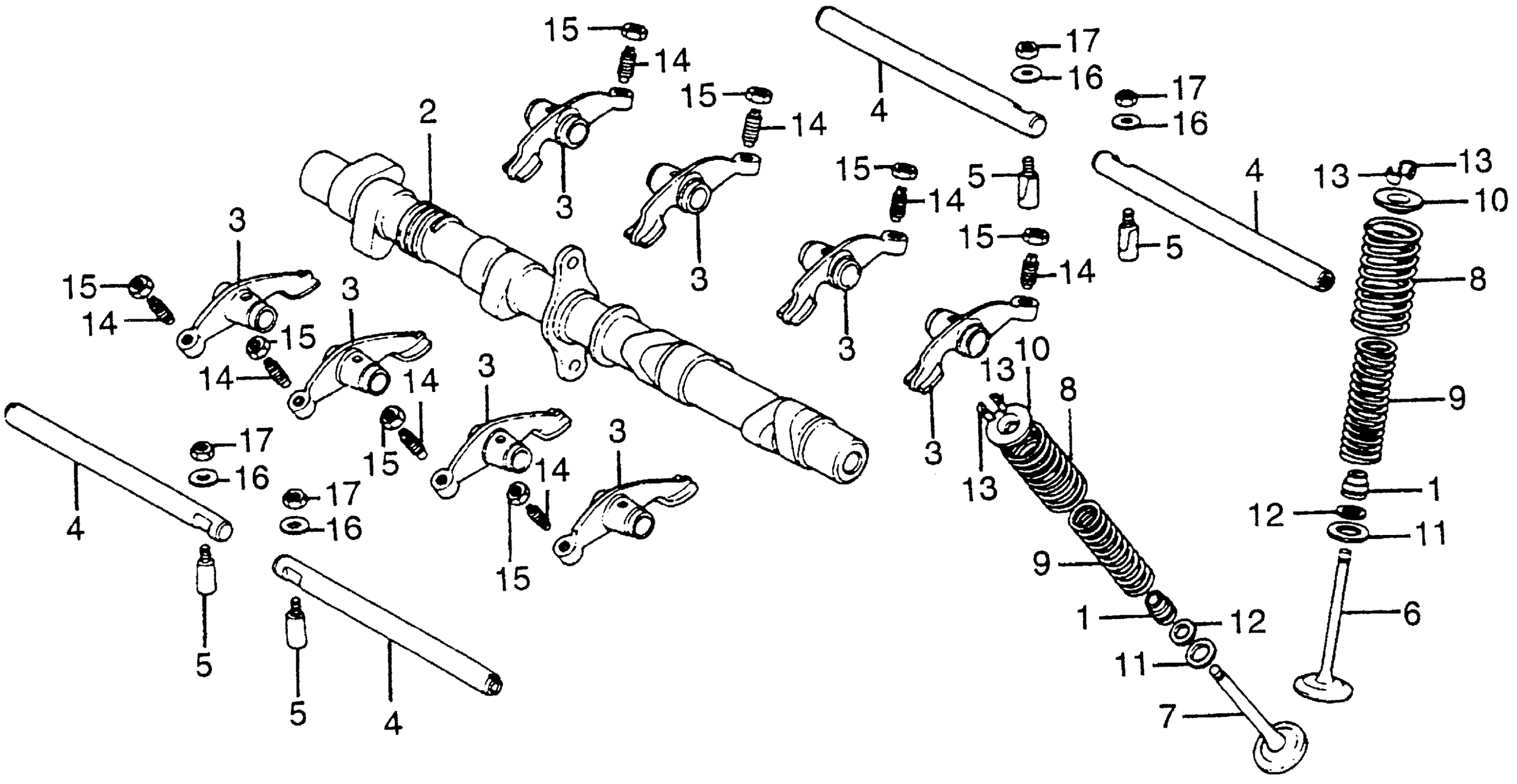

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (NIPPON)

12209-333-005

$10.65

2

CAMSHAFT (NOT AVAILABLE)

14101-323-000

Unavailable

3

ARM, VALVE ROCKER

14431-324-000

Unavailable

4

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-323-020

Unavailable

5

PIN, VALVE ROCKER ARM SHAFT COTTER (NOT AVAILABLE)

14456-390-000

Unavailable

6

VALVE, IN.

14711-107-020

Unavailable

7

VALVE, EX. (MITSUBISHI)

14721-323-005

$72.84

8

SPRING, VALVE (OUTER) This part replaces 14751-107-010.

14751-324-000

$9.08

8

SPRING, VALVE (OUTER)

14751-324-000

$9.08

9

SPRING, VALVE (INNER) This part replaces 14761-107-010.

14761-324-000

Unavailable

9

SPRING, VALVE (INNER)

14761-324-000

Unavailable

10

RETAINER, VALVE SPRING

14771-107-020

$7.99

11

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

12

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.20

13

COTTER, VALVE (SANKO)

14781-107-003

$2.55

13

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

14

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

14

SCREW, TAPPET ADJ.

90012-426-000

$5.94

15

NUT, TAPPET ADJ.

90206-250-000

$2.94

16

WASHER (6X17)

90474-704-000

$1.49

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
