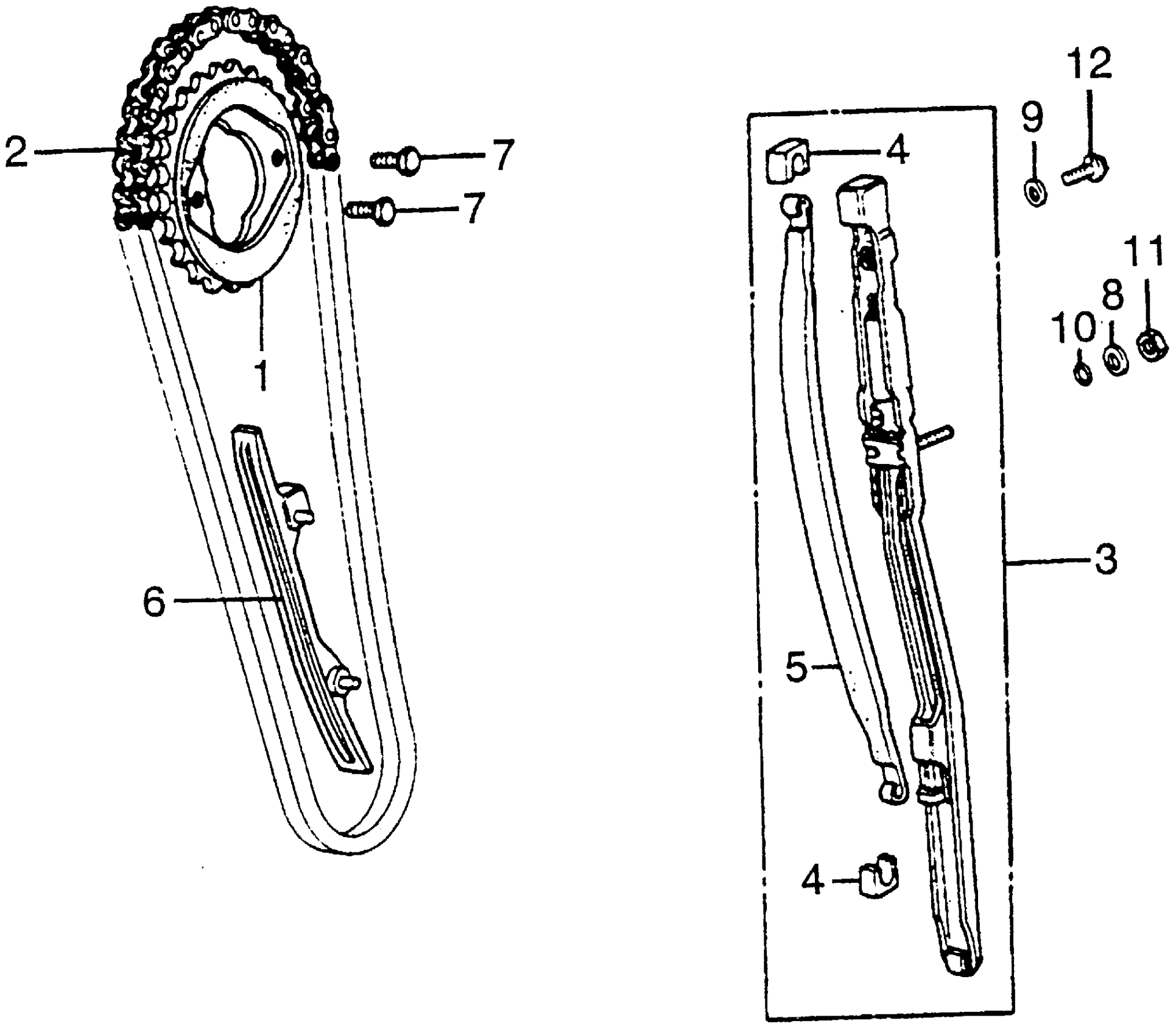

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 CAM CHAIN + TENSIONER Diagram

SPROCKET,IN.CAM This part replaces 14321-323-000.

14321-323-P00

Unavailable

CHAIN, CAM This part replaces 14401-323-003.

14401-362-003

Unavailable

CHAIN, CAM

14401-362-003

Unavailable

TENSIONER, CAM CHAIN

14500-323-000

Unavailable

DAMPER, CAM CHAIN TENSIONER

14501-323-000

Unavailable

SLIPPER, TENSIONER

14520-323-000

Unavailable

GUIDE, CAM CHAIN

14611-323-000

Unavailable

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

WASHER, SEALING (6MM)

90442-035-000

$2.21

WASHER A (6.5MM)

90481-250-000

$1.93

O-RING (5.8X1.9)

91305-323-000

$2.92

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
