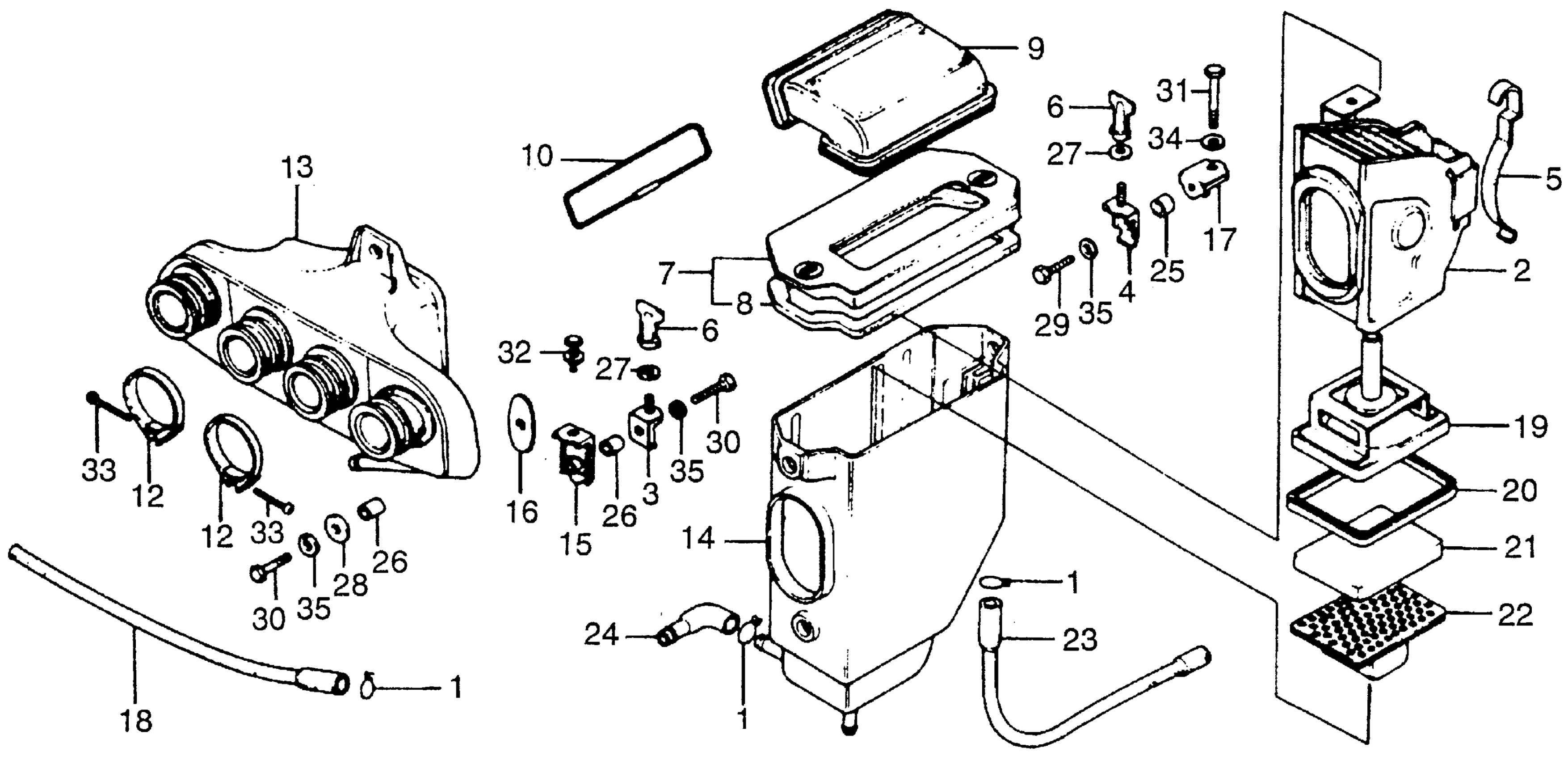

Honda CB550FA (77) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2100001 TO CB550F-2114871 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

ELEMENT, AIR CLEANER

17210-390-P00

Unavailable

2

ELEMENT, AIR CLEANER This part replaces 17210-390-003.

17210-390-P00

Unavailable

3

STAY A, AIR CLEANER COVER

17214-390-000

Unavailable

4

STAY B, AIR CLEANER COVER

17215-390-000

Unavailable

5

SPRING, AIR CLEANER ELEMENT (NOT AVAILABLE)

17216-323-020

Unavailable

6

NUT, AIR CLEANER COVER (NOT AVAILABLE)

17216-390-000

Unavailable

7

COVER, AIR CLEANER (NOT AVAILABLE)

17220-390-000

Unavailable

8

RUBBER, AIR CLEANER HOUSING SEAL (NOT AVAILABLE)

17221-390-300

Unavailable

9

DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17240-390-000

Unavailable

10

CABLE, IN. DUCT (NOT AVAILABLE)

17242-390-000

Unavailable

12

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-230-000.

95018-46250

$7.64

13

CHAMBER, AIR CLEANER *NH1* (BLACK)

17310-323-010B

Unavailable

14

HOUSING, AIR CLEANER ELEMENT SEAL (NOT AVAILABLE)

17313-390-780

Unavailable

15

STAY, AIR CLEANER (NOT AVAILABLE)

17317-323-010

Unavailable

16

WASHER, ELEMENT SETTING (NOT AVAILABLE)

17318-323-000

Unavailable

17

STAY, RR. AIR CLEANER (NOT AVAILABLE)

17319-323-000

Unavailable

18

TUBE ASSY., BREATHER

17335-323-000

Unavailable

19

COVER, ELEMENT (NOT AVAILABLE)

17350-390-780

Unavailable

20

SEAL, ELEMENT COVER (NOT AVAILABLE)

17351-390-780

Unavailable

21

ELEMENT

17352-374-003

Unavailable

22

PLATE, SEAL (NOT AVAILABLE)

17353-374-003

Unavailable

23

TUBE ASSY., DRAIN (NOT AVAILABLE)

17358-374-000

Unavailable

24

PIECE, AIR CLEANER JOINT

17359-374-000

Unavailable

25

COLLAR, BUZZER SETTING

61309-303-810

$5.17

26

COLLAR, RR. FENDER

84705-310-000

$1.72

27

WASHER, SEALING (6MM)

90416-551-000

Unavailable

28

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

28

WASHER (18MM)

90581-831-650

$1.87

29

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

29

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

30

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

30

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

31

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

31

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

31

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

32

BOLT-WASHER (6X12)

93401-06012-00

$1.55

32

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.55

32

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.55

33

SCREW, PAN (4X20)

93500-04020-0A

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

34

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

34

WASHER, PLAIN (6MM)

94101-06800

$1.49

35

WASHER, SPRING (6MM)

94111-06000

$1.49
