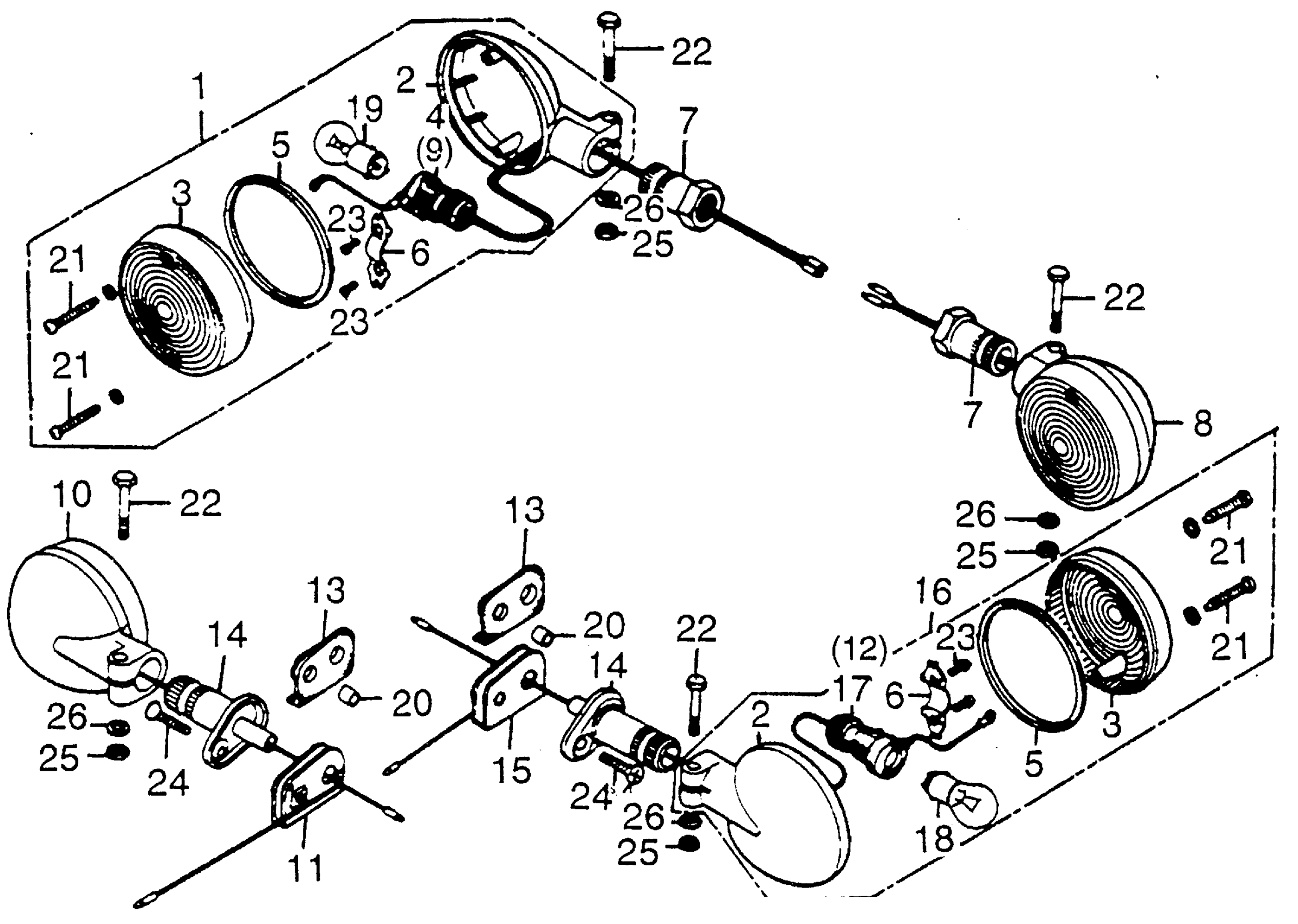

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

1

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

2

BASE, R. FR. TURN SIGNAL (NOT AVAILABLE)

33401-377-671

Unavailable

3

LENS, FR. TURN SIGNAL

33402-377-671

Unavailable

4

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-377-671.

33405-461-670

Unavailable

5

GASKET, TURN SIGNAL LENS

33406-377-671

Unavailable

6

HOLDER, FR. TURN SIGNAL SOCKET (NOT AVAILABLE)

33407-377-671

Unavailable

7

STAY, FR. TURN SIGNAL (NOT AVAILABLE)

33441-390-000

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33450-377-671.

33400-461-679

Unavailable

9

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33455-377-671.

33405-461-670

Unavailable

10

TURN SIGNAL, R. RR.

33600-374-671

Unavailable

11

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33604-374-670

Unavailable

12

SOCKET, R. RR. TURN SIGNAL This part replaces 33605-374-671.

33610-374-671

Unavailable

12

SOCKET, R. RR. TURN SIGNAL

33610-374-671

Unavailable

13

RUBBER, RR. TURN SIGNAL SETTING (NOT AVAILABLE)

33606-374-670

Unavailable

14

STAY, R. RR. TURN SIGNAL (NOT AVAILABLE)

33607-374-670

Unavailable

15

STOPPER, L. RR. TURN SIGNAL

33609-374-670

Unavailable

16

TURN SIGNAL ASSY., L. RR. (NOT AVAILABLE)

33650-374-671

Unavailable

17

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33655-374-671.

33660-374-671

Unavailable

17

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-374-671

Unavailable

18

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

19

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

19

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

20

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

20

COLLAR A, RR. FENDER

80108-061-010

$4.12

21

SCREW, PAN (4X25) This part replaces 90192-377-671.

93500-04025-0A

$1.93

21

SCREW, PAN (4X25)

93500-04025-0A

$1.93

22

BOLT, HEX. (6X35) This part replaces 93000-06035-0B.

93101-06035-0B

Unavailable

22

BOLT, HEX. (6X35) This part replaces 93000-06035-02.

93101-06035-0B

Unavailable

22

BOLT, HEX. (6X35)

93101-06035-0B

Unavailable

23

SCREW, PAN (3X8)

93500-03008-0H

$1.49

24

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

24

SCREW, OVAL (6X25) This part replaces 93700-06025-02.

93700-06025-0B

$1.49

25

NUT, HEX. (6MM) | Use up to Frame SN 2004827 This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) | Use up to Frame SN 2004827 This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) | Use up to Frame SN 2004827 This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) | Use up to Frame SN 2004827 This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) | Use up to Frame SN 2004827 This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) | Use up to Frame SN 2004827

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) | Use up to Frame SN 2004827 This part replaces 94030-06000.

94001-06200-0S

$1.49

25

NUT, FLANGE (6MM) | Use from Frame SN 2004828 This part replaces 18362-720-000.

94050-06000

$1.49

25

NUT, FLANGE (6MM) | Use from Frame SN 2004828

94050-06000

$1.49

26

WASHER, PLAIN (6MM) | Use up to Frame SN 2004827 This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) | Use up to Frame SN 2004827 This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) | Use up to Frame SN 2004827

94101-06800

$1.49
