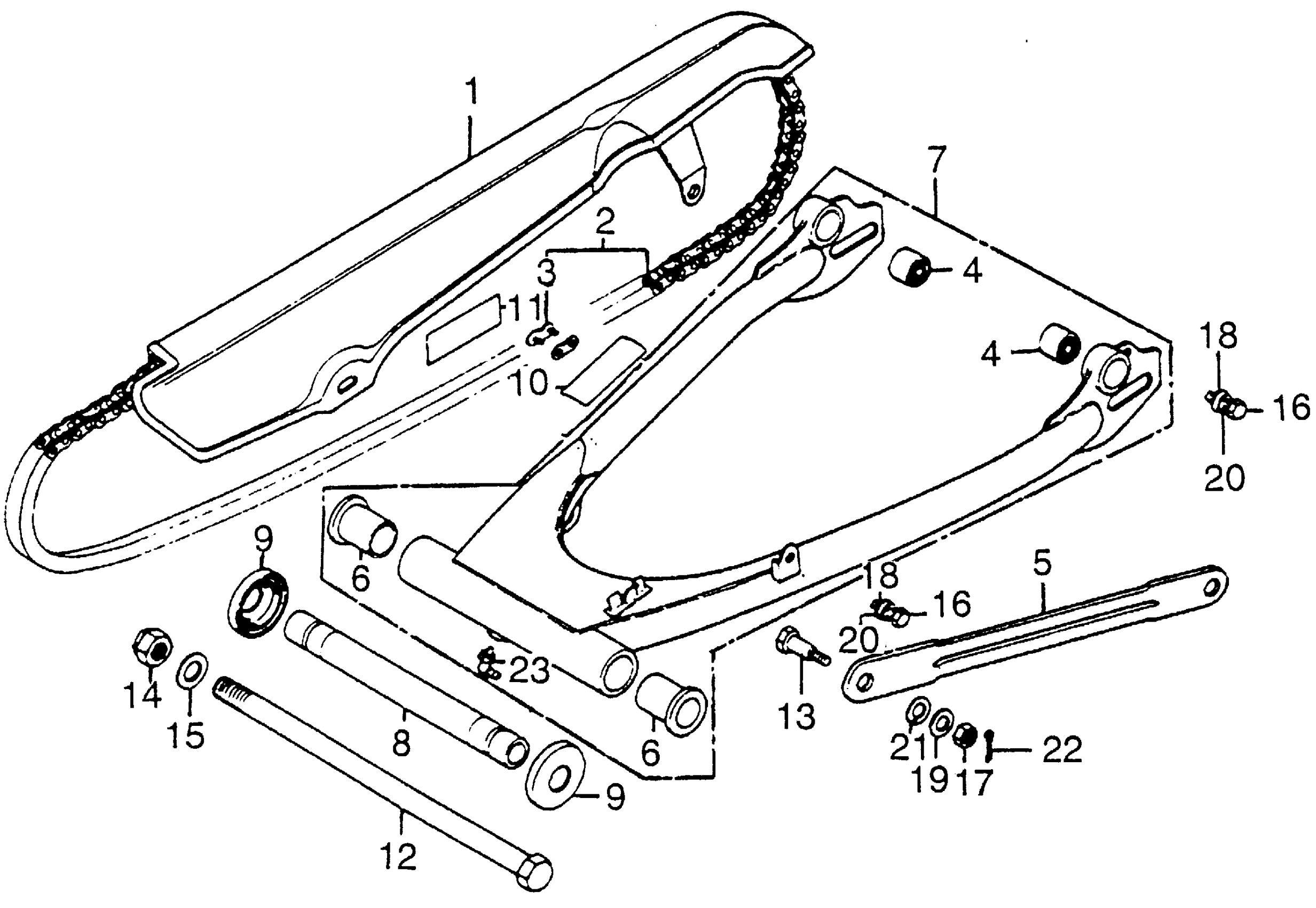

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-390-000

Unavailable

2

CHAIN, DRIVE (100L) (DAIDO) (NOT AVAILABLE)

40530-341-305

Unavailable

3

MASTER LINK (STAKING TYPE) (NOT AVAILABLE)

40531-341-305

Unavailable

4

RUBBER, RR. SWINGARM (LOWER)

40548-268-000

$7.95

5

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-286-010

Unavailable

6

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

7

SWINGARM ASSY., RR. *NH1* (BLACK)

52110-390-000ZA

Unavailable

8

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE) This part replaces 52141-390-000.

52141-390-010

Unavailable

8

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-390-010

Unavailable

9

CAP, DUST SEAL

52144-362-000

Unavailable

10

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

11

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-390-770

Unavailable

12

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE) This part replaces 90121-390-000.

90121-426-000

Unavailable

12

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-426-000

Unavailable

13

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

14

NUT, LOCK (14MM)

90354-268-000

$6.78

15

WASHER, SWINGARM PIVOT BOLT

90526-268-000

$3.10

16

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

16

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49

21

WASHER, SPRING (10MM)

94111-10000

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

22

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

22

PIN, SPLIT (2.0X22)

94201-20220

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

22

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

22

PIN, COTTER (2.0X35)

94201-20350

$1.49

22

PIN, COTTER (2.0X22)

94201-29220

$1.49

23

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
