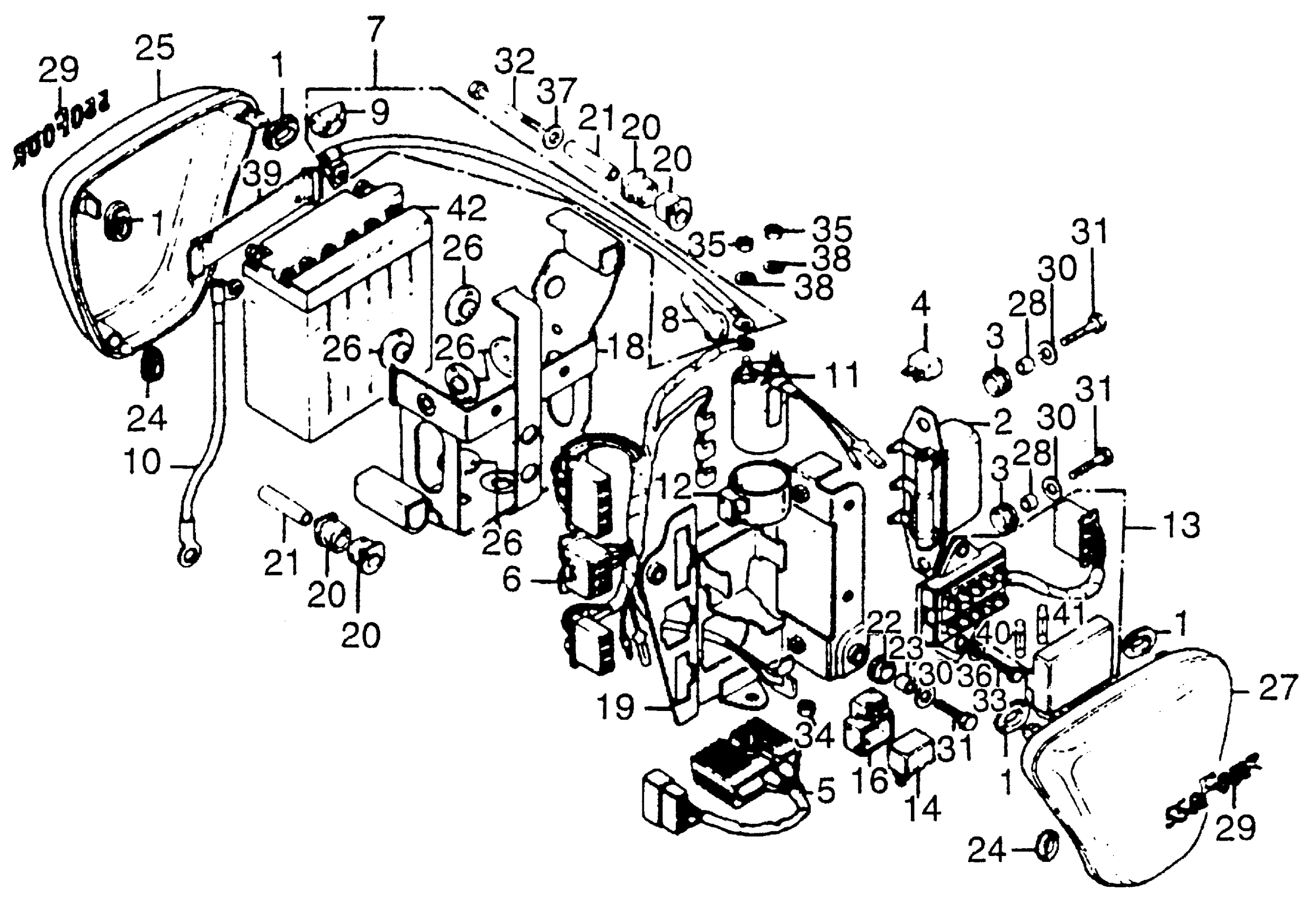

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 SIDE COVER + BATTERY + REGULATOR Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

2

REGULATOR ASSY. (HITACHI)

31400-300-035

Unavailable

3

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

4

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

5

RECTIFIER ASSY.

31700-333-008

Unavailable

6

SUB-WIRE HARNESS (NOT AVAILABLE)

32105-390-000

Unavailable

7

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-323-000

Unavailable

8

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

8

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

9

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32412-323-000

Unavailable

10

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-323-000

Unavailable

11

SWITCH ASSY., STARTER MAGNETIC

35850-375-000

Unavailable

12

RUBBER, MAGNETIC SHOCK This part replaces 35856-KR3-670.

35856-413-010

$10.15

12

RUBBER, MAGNETIC SHOCK This part replaces 35856-286-010.

35856-413-010

$10.15

12

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

12

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

13

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE) This part replaces 38200-377-005.

38200-377-305

Unavailable

13

BOX ASSY., FUSE (DAICHI) (NOT AVAILABLE)

38200-377-305

Unavailable

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38300-292-670.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-741.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

14

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

16

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-107-670

Unavailable

18

BOX, BATTERY

50325-323-040

Unavailable

19

PLATE, ELECTRIC

50330-390-000

Unavailable

20

RUBBER, BATTERY BOX (NOT AVAILABLE)

50331-323-000

Unavailable

21

COLLAR, BATTERY BOX (NOT AVAILABLE)

50332-323-000

Unavailable

22

CUSHION A, RR. FENDER

80105-061-000

$4.01

23

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

23

COLLAR A, RR. FENDER

80108-061-010

$4.12

24

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

25

COVER, R. SIDE *PB3CF* (FLAKE SAPPHIRE BLUE) (NOT AVAILABLE)

83600-390-000ZC

Unavailable

25

COVER, R. SIDE *YR26* (SHINY ORANGE) (NOT AVAILABLE)

83600-390-000ZD

Unavailable

26

RUBBER, BATTERY BOX

83618-323-000

$2.47

27

COVER, L. SIDE *PB3CF* (FLAKE SAPPHIRE BLUE) (NOT AVAILABLE)

83700-390-000ZC

Unavailable

27

COVER, L. SIDE *YR26* (SHINY ORANGE) (NOT AVAILABLE)

83700-390-000ZD

Unavailable

28

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

29

EMBLEM, SIDE COVER

87124-390-000

Unavailable

30

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

30

WASHER (18MM)

90581-831-650

$1.87

31

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

31

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

32

BOLT, HEX. (8X65) This part replaces 92000-08065-0A.

92101-08065-0A

$2.25

32

BOLT, HEX. (8X65)

92101-08065-0A

$2.25

33

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

33

SCREW, PAN (6X16)

93500-06016-0A

$1.49

34

NUT, HEX. (8MM)

94001-08000-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

35

NUT, HEX. (6MM)

94002-06080-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

35

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

36

WASHER, PLAIN (6MM)

94101-06800

$1.49

37

WASHER, PLAIN (8MM)

94101-08000

$1.49

38

WASHER, SPRING (6MM)

94111-06800

$1.49

39

BAND F, BATTERY This part replaces 50322-300-010.

95012-17001

$7.23

39

BAND F, BATTERY This part replaces 95012-17000.

95012-17001

$7.23

39

BAND F, BATTERY

95012-17001

$7.23

40

FUSE B (7A)

98200-20700

$1.49

41

FUSE B (15A)

98200-21500

$1.49

42

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

42

BATTERY (12V12) This part replaces 98203-22250.

31500-460-672AH

Unavailable
