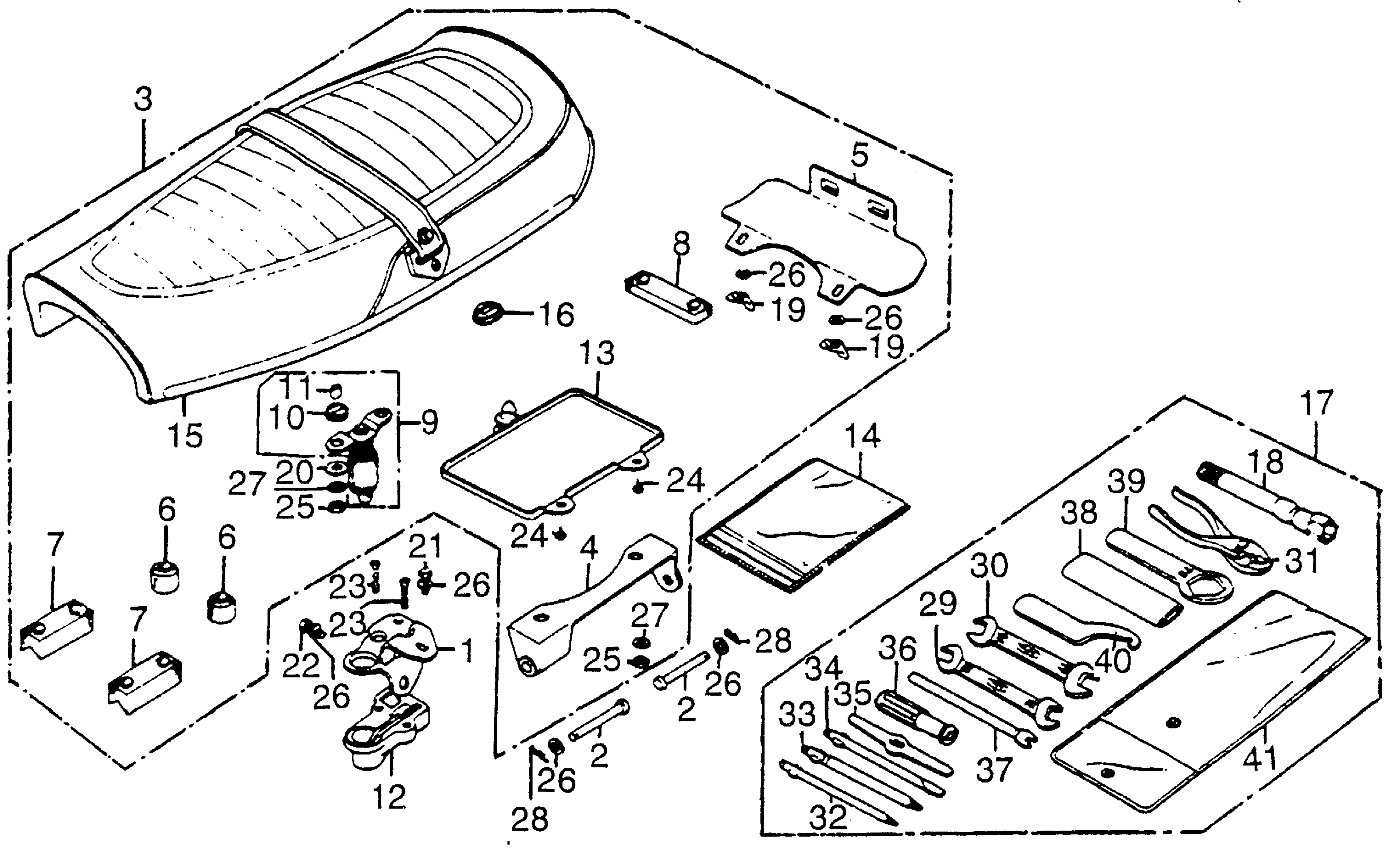

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 SEAT + TOOL Diagram

#

Description
Price

1

PLATE, SEAT LOCK SETTING (NOT AVAILABLE)

50223-323-010

Unavailable

2

BAR, SEAT HINGE (NOT AVAILABLE)

77103-313-000

Unavailable

3

SEAT ASSY. (NOT AVAILABLE)

77200-390-000

Unavailable

4

HINGE, SEAT (NOT AVAILABLE)

77201-323-010

Unavailable

5

LID, TOOL (LOWER) (NOT AVAILABLE)

77202-390-000

Unavailable

6

RUBBER, SEAT SETTING

77204-292-000

$9.11

7

RUBBER, SEAT SETTING

77204-312-000

$5.05

8

RUBBER B, SEAT SETTING

77206-329-000

$7.04

9

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

9

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

9

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

10

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

10

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

10

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

11

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

11

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

11

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

12

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-377-003.

77230-399-007

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-007.

77230-399-007

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-017.

77230-399-007

Unavailable

12

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

13

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

14

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

15

SEAT COVER (NOT AVAILABLE)

77270-390-000

Unavailable

16

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

17

TOOL SET (NOT AVAILABLE) | Use up to Frame SN 2007006 This part replaces 89010-323-010.

89010-390-000

Unavailable

17

TOOL SET (NOT AVAILABLE)

89010-390-000

Unavailable

18

WRENCH, SPARK PLUG

89216-323-000

Unavailable

19

NUT, AIR CLEANER COVER (DACRO COATING)

90203-PB2-000

$6.56

19

NUT, AIR CLEANER COVER (DACRO COATING) This part replaces 90203-611-000.

90203-PB2-000

$6.56

20

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

20

WASHER, PLAIN (6MM)

94103-06800

$1.49

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

23

SCREW, FLAT (6X16)

93600-06016-0G

$1.49

23

SCREW, FLAT (6X16) This part replaces 93600-06016-07.

93600-06016-0G

$1.49

24

SCREW, TAPPING (5X8)

93901-25080

$1.49

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49

28

PIN, LOCK (6MM)

94251-06000

$1.49

29

SPANNER (10X12)

99001-10120

$4.69

30

SPANNER (14X17)

99001-14170

$7.49

31

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

32

DRIVER 1, PLUS SCREW (NO.2)

99003-10000

$3.27

33

DRIVER 2, PLUS SCREW (NO.3)

99003-20000

$3.27

34

DRIVER 3, MINUS SCREW (NO.2)

99003-30000

$3.27

35

LEVER, TIRE

99003-40000

$1.49

36

GRIP, SCREW DRIVER

99003-50000

$3.27

37

BAR B, HANDLE

99005-02000

$2.52

38

HANDLE, EYE WRENCH (12MM)

99006-12000

$2.87

39

WRENCH, EYE (26MM) (NOT AVAILABLE)

99006-26000

Unavailable

40

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.40

41

BAG, TOOL

89101-ME5-670

Unavailable

41

BAG, TOOL | Use from Frame SN 2007007

89101-ME5-670

Unavailable

41

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable

41

BAG, TOOL | Use from Frame SN 2007007 This part replaces 99008-02000.

89101-ME5-670

Unavailable

41

BAG, TOOL | Use from Frame SN 2007007 This part replaces 89101-300-010.

89101-ME5-670

Unavailable
