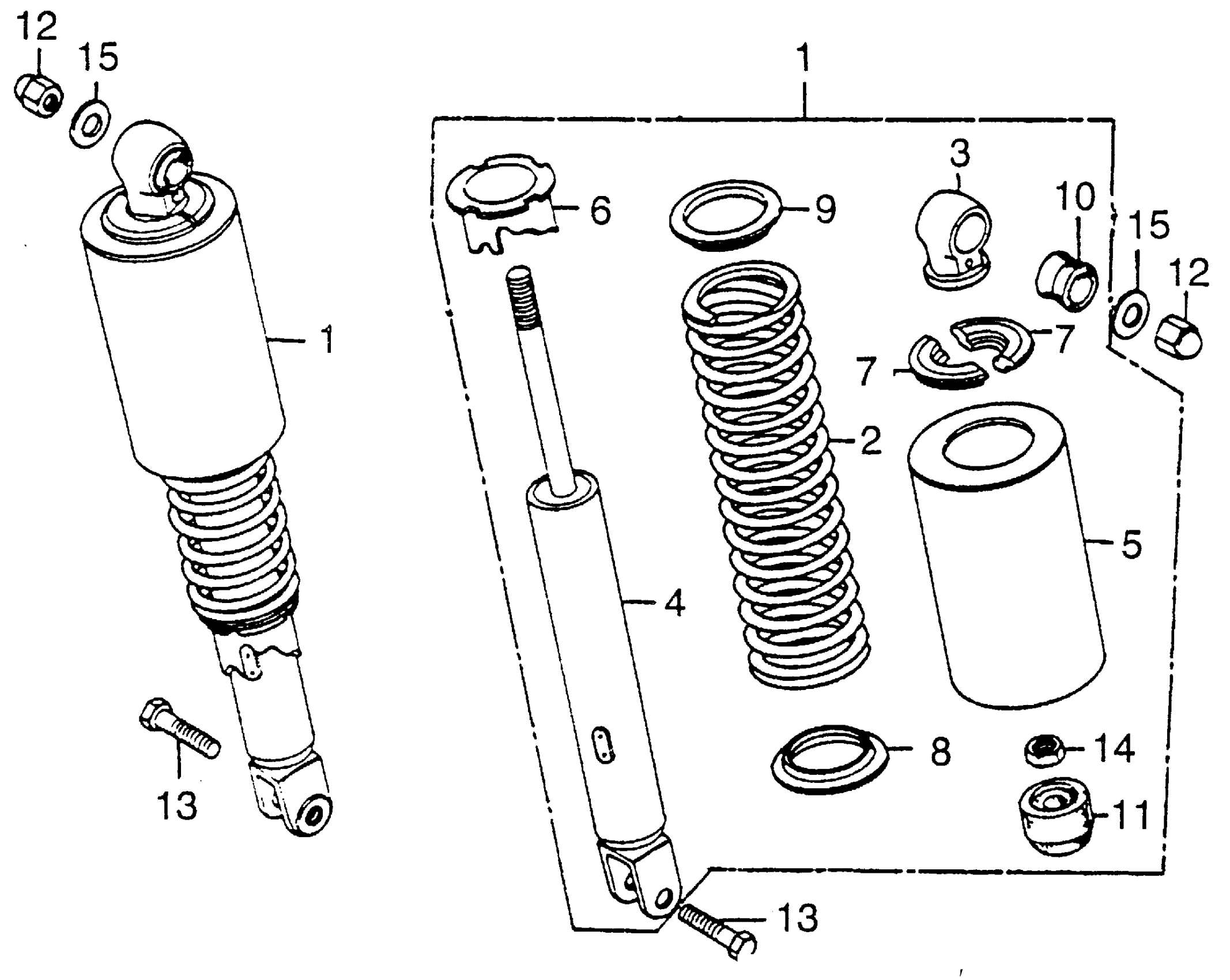

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use up to Frame SN 2010796 This part replaces 52400-390-003.

52400-390-681XW

Unavailable

SHOCK ABSORBER ASSY., RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE) | Use from Frame SN 2010797

52400-390-681XW

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-323-000

Unavailable

JOINT (UPPER)

52403-312-000

$18.07

DAMPER ASSY., RR. (NOT AVAILABLE) | Use up to Frame SN 2010796

52410-390-003

Unavailable

DAMPER ASSY., RR. (NOT AVAILABLE) | Use from Frame SN 2010797

52410-375-611

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

52421-300-000XW

Unavailable

ADJUSTER, SPRING (SHOWA) (NOT AVAILABLE)

52422-390-003

Unavailable

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE)

52459-312-003

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

RUBBER, STOPPER (NOT AVAILABLE)

52517-358-771

Unavailable

NUT, FLANGE (10MM)

90309-315-000

$5.35

BOLT, HEX. (10X32) This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable

NUT, HEX. (10MM)

94002-10000-0S

$4.06

WASHER, PLAIN (10MM)

94101-10200

$1.49
