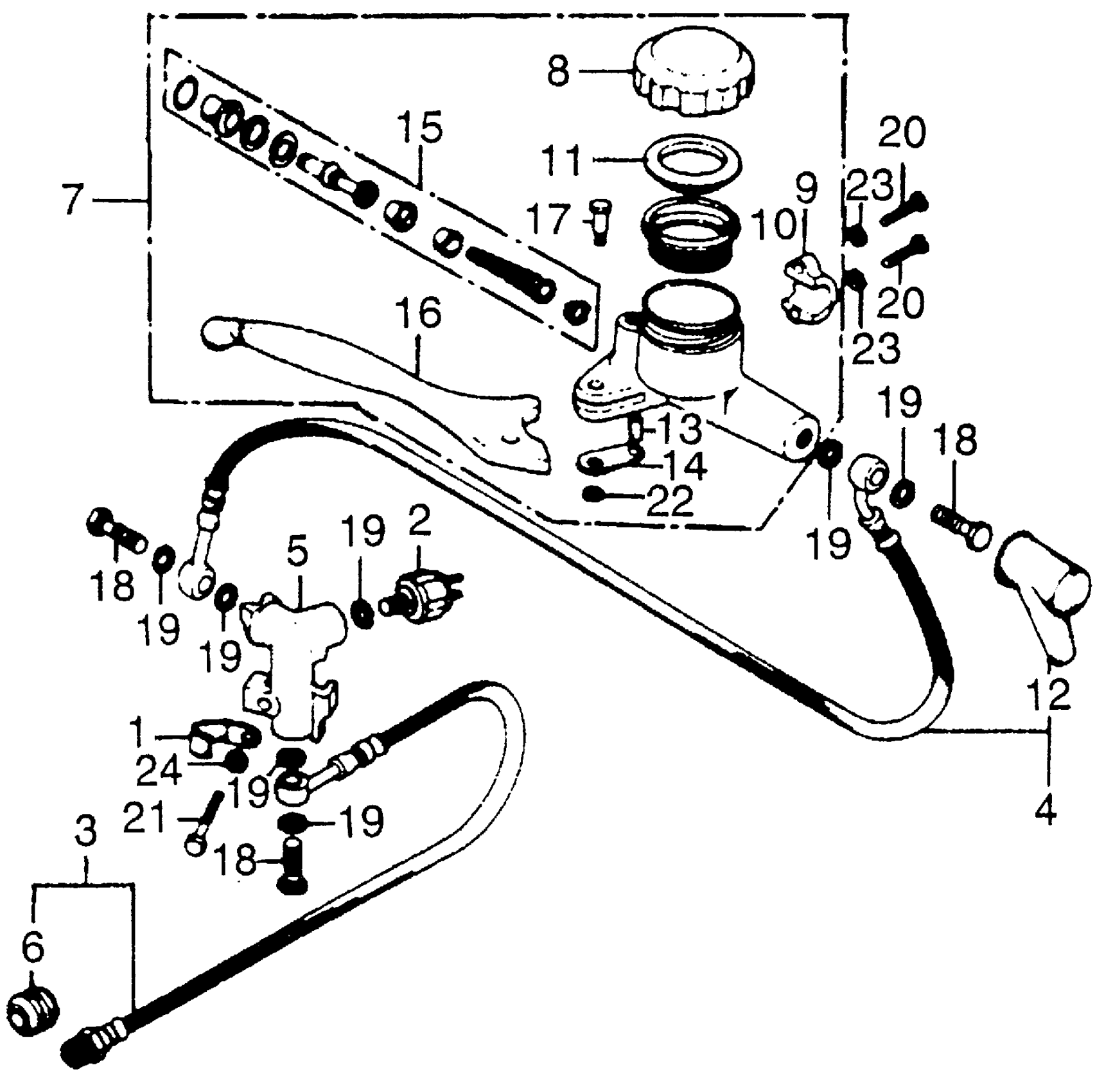

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 MASTER CYLINDER + BRAKE HOSE Diagram

#

Description
Price

1

CLAMP, CABLE

32111-323-000

$3.80

2

SWITCH, STOP (NOT AVAILABLE)

35350-300-016

Unavailable

3

HOSE ASSY. A, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 2010796

45125-390-003

Unavailable

3

HOSE ASSY. A, FR. BRAKE (NICHIRIN) | Use from Frame SN 2010797

45125-379-003

Unavailable

4

HOSE B, FR. BRAKE (NOT AVAILABLE)

45126-390-003

Unavailable

5

JOINT (THREE-WAY) (NOT AVAILABLE)

45127-323-000

Unavailable

6

GROMMET, BRAKE HOSE

45146-300-000

$4.05

7

MASTER CYLINDER ASSY. (NOT AVAILABLE)

45500-369-671

Unavailable

8

CAP, OIL CUP

43513-MJ6-006

Unavailable

8

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

8

CAP, OIL CUP This part replaces 45513-341-771.

43513-MJ6-006

Unavailable

9

HOLDER, MASTER CYLINDER

45517-MA5-671

$28.72

9

HOLDER, MASTER CYLINDER This part replaces 45517-300-003.

45517-MA5-671

$28.72

10

DIAPHRAGM

45520-300-000

$8.34

11

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

11

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$3.87

12

BOOT, MASTER CYLINDER

45522-300-010

$8.55

13

BUSH, R. HANDLEBAR CONTROL LEVER

45526-341-000

Unavailable

14

PLATE, CONTROL LEVER BUSH SETTING

45527-300-000

Unavailable

15

MASTER CYLINDER SET

45530-377-305

$57.72

16

LEVER, R. HANDLEBAR This part replaces 53170-369-003.

53175-369-003

Unavailable

16

LEVER, R. HANDLEBAR

53175-369-003

Unavailable

17

BOLT, HANDLEBAR LEVER PIVOT

90114-300-000

$7.70

18

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$8.32

18

BOLT, OIL

90145-300-010

$8.32

19

WASHER, OIL BOLT

90545-300-000

$6.56

20

BOLT, HEX. (6X25) This part replaces 92000-06025-02.

92101-06025-0B

$2.10

20

BOLT, HEX. (6X25)

92101-06025-0B

$2.10

21

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.07

21

BOLT, HEX. (6X28)

92101-06028-0A

$1.07

22

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.21

22

NUT, HEX. (6MM)

94002-06000-0S

$1.21

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM)

94101-06800

Unavailable

24

WASHER, SPRING (6MM)

94111-06000

$0.87
