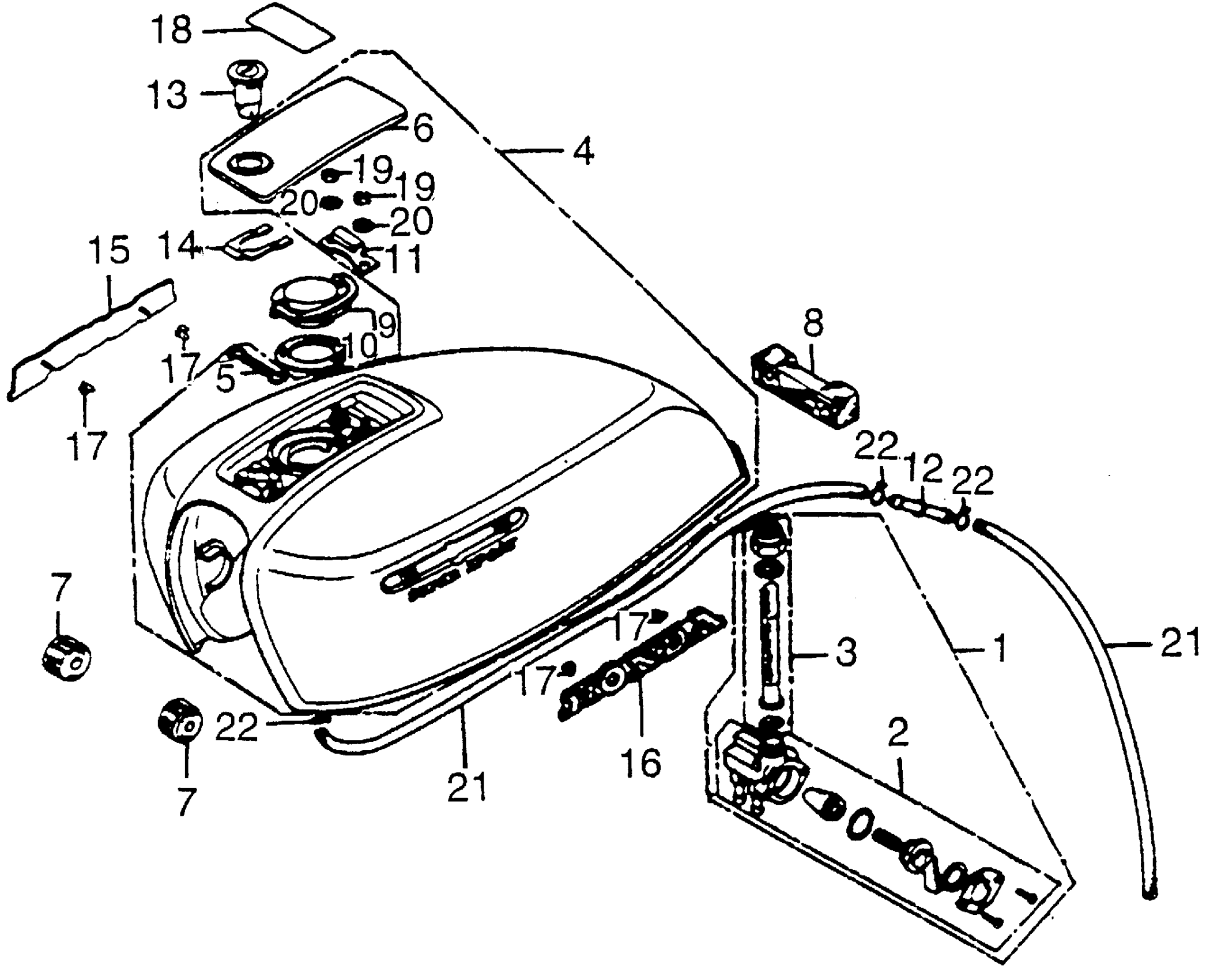

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-374-671

Unavailable

2

BODY SET, PETCOCK (NOT AVAILABLE)

16951-374-671

Unavailable

3

STRAINER SET

16952-341-671

$43.39

4

TANK SUB-ASSY., FUEL *PB3CF* (FLAKE SAPPHIRE BLUE) (NOT AVAILABLE)

17525-390-000ZC

Unavailable

4

TANK SUB-ASSY., FUEL *YR26* (SHINY ORANGE) (NOT AVAILABLE)

17525-390-000ZD

Unavailable

5

CLIP, FILLER LOCK (NOT AVAILABLE)

17526-390-000

Unavailable

6

LID, FUEL FILLER *A01* (MAT BLACK)

17531-390-000ZA

Unavailable

7

RUBBER, FR. FUEL TANK

17611-283-010

$8.04

8

RUBBER, RR. FUEL TANK

17613-286-000

$15.86

9

CAP, FUEL FILLER (NOT AVAILABLE)

17620-390-010

Unavailable

10

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

10

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

11

SPRING, FUEL FILLER LID (NOT AVAILABLE)

17735-390-000

Unavailable

12

JOINT, DRAIN TUBE CONNECTING (NOT AVAILABLE)

17738-390-000

Unavailable

13

LOCK, FILLER LID (HONDALOCK) This part replaces 37220-390-003.

37220-390-007

Unavailable

13

LOCK, FILLER LID (HONDALOCK)

37220-390-007

Unavailable

14

SPRING, LOCK SET

37221-390-000

Unavailable

15

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87121-390-000

Unavailable

16

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87122-390-000

Unavailable

17

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

17

NUT, EMBLEM CLAMP

87311-634-600

$4.79

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

18

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49

21

BULK HOSE, FUEL (5.5X3000) (5.5X510)

95001-55003-60M

$47.32

22

CLIP, TUBE (B10)

95002-02100

$1.90
