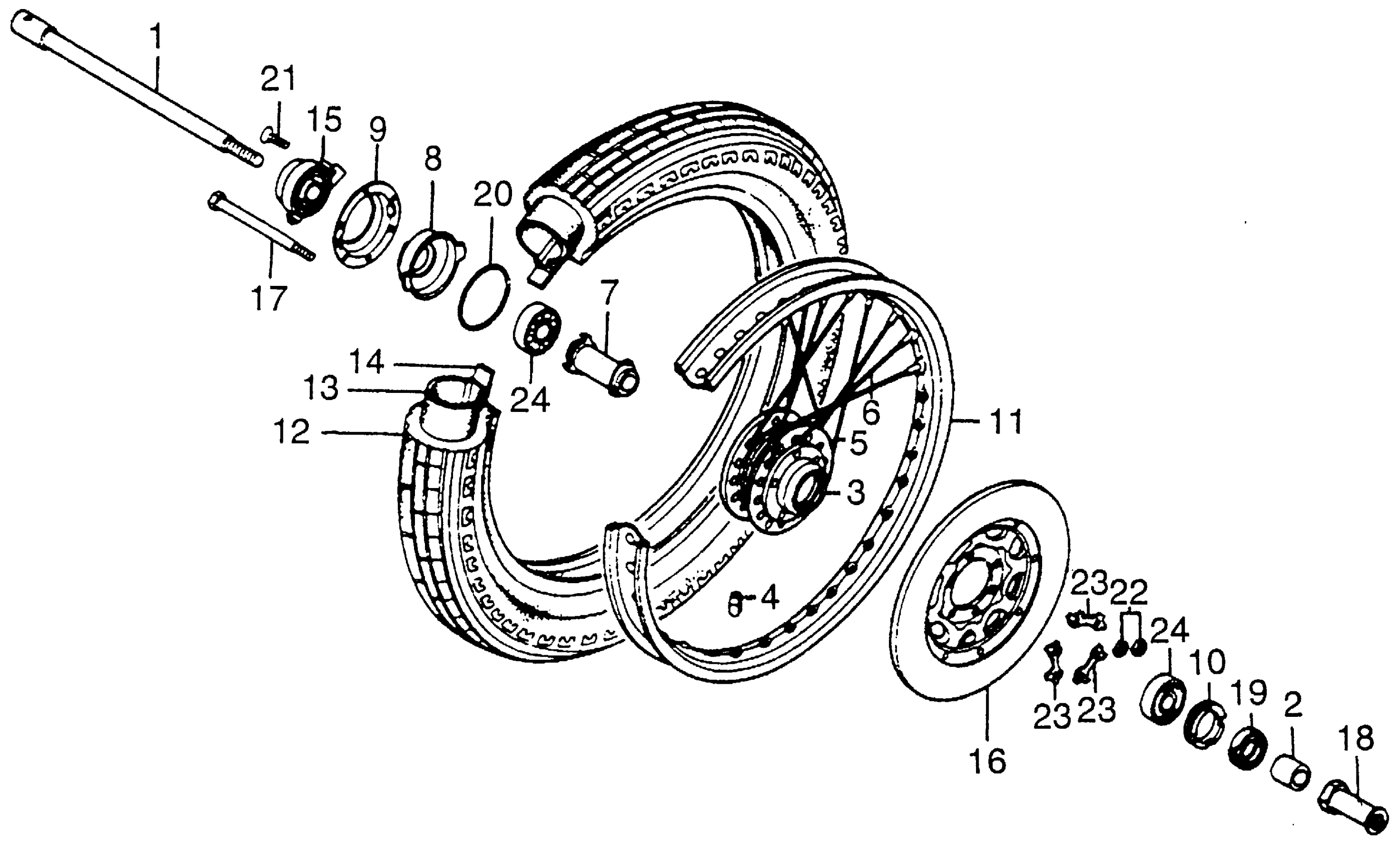

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 FRONT WHEEL + DISC Diagram

#

Description
Price

1

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-300-000.

44301-425-870

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-393-000.

44301-425-870

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE) This part replaces 44301-422-000.

44301-425-870

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-425-870

Unavailable

2

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE) This part replaces 44311-300-000.

44311-371-980

Unavailable

3

HUB, FR. WHEEL

44601-300-040

Unavailable

4

BALANCER (20G)

44606-283-000

$8.89

4

BALANCER, WHEEL (15G)

44607-283-000

$8.08

4

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

4

BALANCER, WHEEL (5G)

44609-283-000

$3.93

5

SPOKE AS (8X203) This part replaces 44606-300-003.

97451-69246-10

$5.22

5

SPOKE AS (8X203)

97451-69246-10

$5.22

6

SPOKE B, FR. (DAIDO)

44607-300-003

$5.74

6

SPOKE BS (8X202.5)

97B11-69245-10

$5.22

7

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)

44620-300-020

Unavailable

8

RETAINER, GEAR BOX (NOT AVAILABLE)

44641-375-000

Unavailable

9

COVER, GEAR BOX RETAINER (NOT AVAILABLE)

44642-300-020

Unavailable

10

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

11

RIM, FR. WHEEL This part replaces 44701-300-013.

44701-405-771

Unavailable

11

RIM, FR. WHEEL

44701-405-771

Unavailable

12

TIRE, FR. (3.25H19) (BS) (NOT AVAILABLE)

44711-341-003

Unavailable

12

TIRE, FR. (3.25H19) (BS) (NOT AVAILABLE) This part replaces 44711-375-671.

44711-341-003

Unavailable

13

TUBE, TIRE (3.50-19) (BS) This part replaces 08400-37110.

44712-371-003

Unavailable

13

TUBE, TIRE (3.50-19) (BS) This part replaces 44712-300-003.

44712-371-003

Unavailable

13

TUBE, TIRE (3.50-19) (BS)

44712-371-003

Unavailable

14

FLAP, TIRE (100/90-19) (57S) (BS)

44713-MR1-671

$7.32

14

FLAP, TIRE (BS) This part replaces 44713-300-003.

44713-MR1-671

$7.32

15

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-323-000

Unavailable

16

DISK, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 2010846 This part replaces 45120-323-020.

45120-374-700

Unavailable

16

DISK, FR. BRAKE (NOT AVAILABLE)

45120-374-700

Unavailable

17

BOLT (8X102) (NOT AVAILABLE)

90122-300-020

Unavailable

18

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-300-000.

90306-425-870

Unavailable

18

NUT, AXLE (12MM) (NOT AVAILABLE) This part replaces 90305-333-000.

90306-425-870

Unavailable

18

NUT, AXLE (12MM) (NOT AVAILABLE)

90306-425-870

Unavailable

19

DUST SEAL (22X36X8)

91252-300-003

$10.73

20

O-RING (58X2)

91302-300-000

$6.86

21

SCREW, OVAL (5X16) This part replaces 93700-05015-0A.

93700-05016-0A

$1.49

21

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

22

NUT, HEX. (8MM) | Use up to Frame SN 2010846

94001-08000-0S

$1.49

22

NUT, HEX. (8MM) | Use from Frame SN 2010847

90309-357-000

$3.40

23

WASHER A8, TONGUED (NOT AVAILABLE) | Use up to Frame SN 2010846

94108-18000

Unavailable

24

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

24

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
