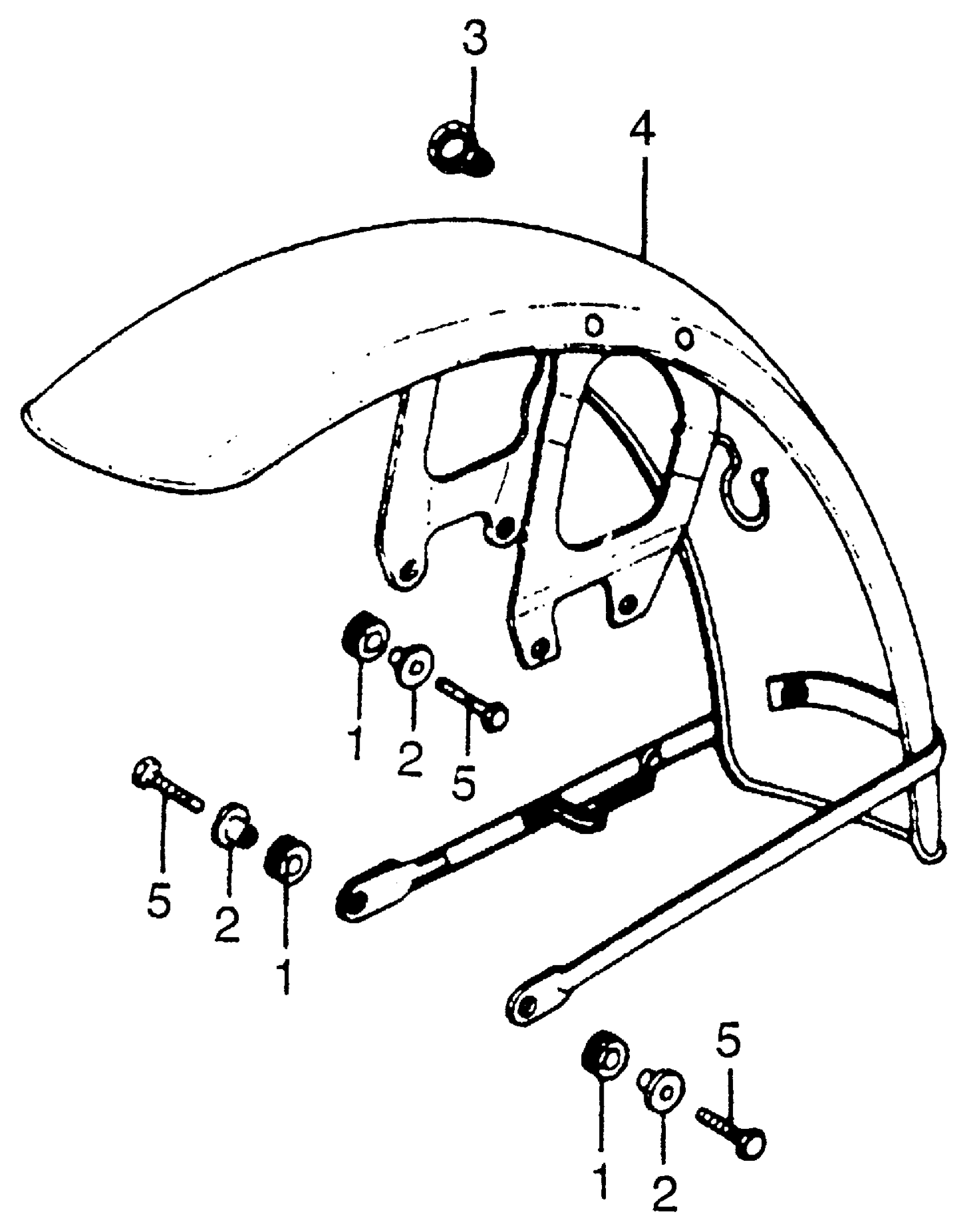

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 FRONT FENDER Diagram

#

Description

Price

1

RUBBER, CHAIN CASE MOUNTING

40513-310-000

$2.47

2

COLLAR, CHAIN CASE

40514-310-000

$5.99

3

GROMMET, CABLE This part replaces 45451-283-000.

45451-367-690

$3.86

3

GROMMET, CABLE

45451-367-690

$3.86

4

FENDER, FR. (NOT AVAILABLE) | Use up to Frame SN 2010873 This part replaces 61100-390-670.

61100-390-671

Unavailable

4

FENDER, FR. (NOT AVAILABLE)

61100-390-671

Unavailable

5

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.96

5

BOLT, HEX. (6X20)

92101-06020-0A

$0.96
