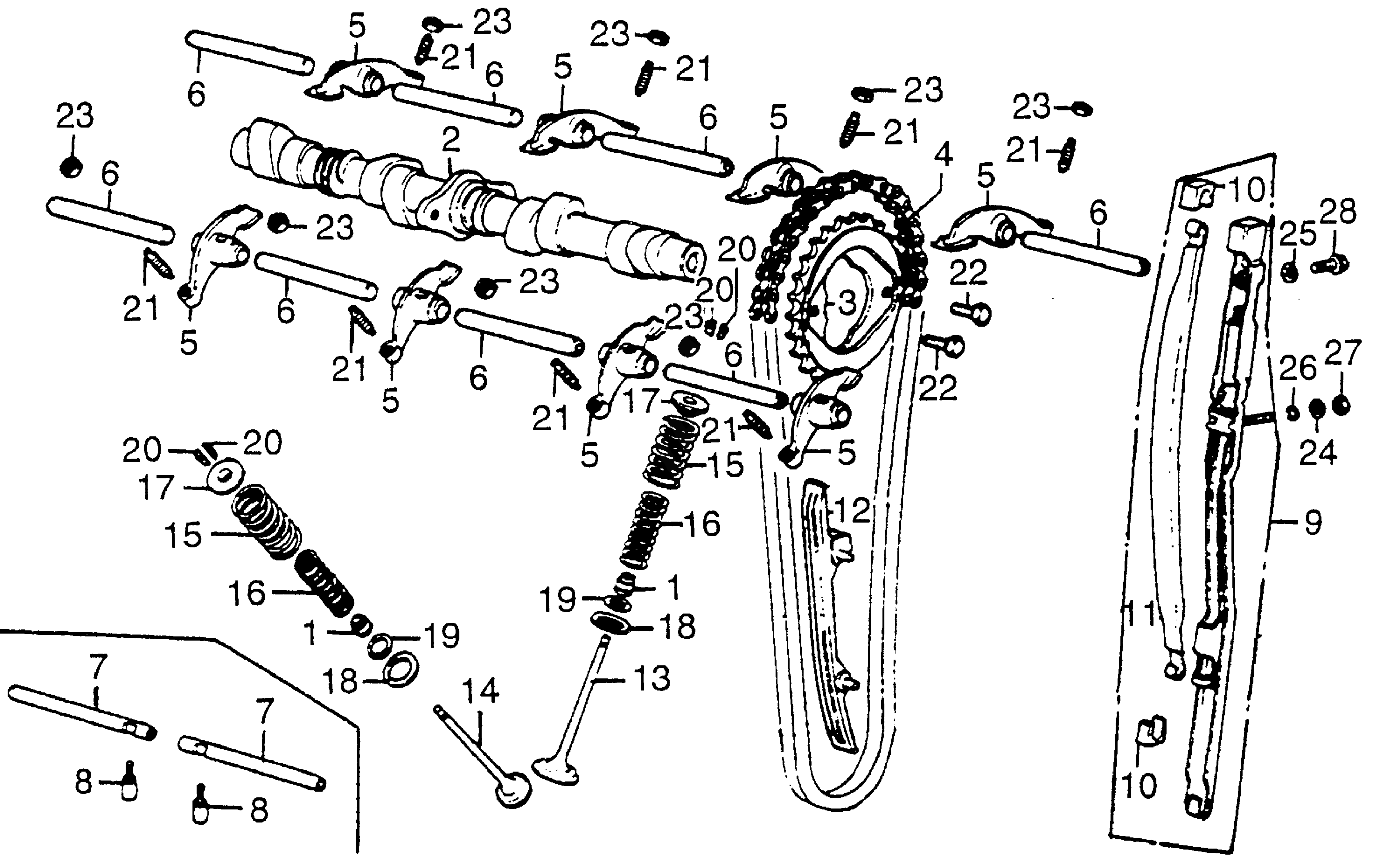

Honda CB550FA (76) SUPER SPORT 550 FOUR, JPN, VIN# CB550F-2000003 TO CB550F-2010866 CAMSHAFT + VALVE + TENSIONER Diagram

#

Description
Price

1

SEAL, VALVE STEM (NIPPON)

12209-333-005

$10.65

2

CAMSHAFT (NOT AVAILABLE)

14101-323-000

Unavailable

3

SPROCKET,IN.CAM This part replaces 14321-323-000.

14321-323-P00

Unavailable

4

CHAIN, CAM This part replaces 14401-323-003.

14401-362-003

Unavailable

4

CHAIN, CAM

14401-362-003

Unavailable

5

ARM, VALVE ROCKER

14431-324-000

Unavailable

7

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE) | Use up to Engine SN 1133171

14451-323-010

Unavailable

7

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE) | Use from Engine SN 1133172

14451-323-020

Unavailable

8

PIN, VALVE ROCKER ARM SHAFT COTTER (NOT AVAILABLE) | Use from Engine SN 1133172

14456-390-000

Unavailable

9

TENSIONER, CAM CHAIN

14500-323-000

Unavailable

10

DAMPER, CAM CHAIN TENSIONER

14501-323-000

Unavailable

11

SLIPPER, TENSIONER

14520-323-000

Unavailable

12

GUIDE, CAM CHAIN

14611-323-000

Unavailable

13

VALVE, IN.

14711-107-020

Unavailable

14

VALVE, EX. (MITSUBISHI)

14721-323-005

$72.84

15

SPRING, VALVE (OUTER) This part replaces 14751-107-010.

14751-324-000

$9.08

15

SPRING, VALVE (OUTER)

14751-324-000

$9.08

16

SPRING, VALVE (INNER) This part replaces 14761-107-010.

14761-324-000

Unavailable

16

SPRING, VALVE (INNER)

14761-324-000

Unavailable

17

RETAINER, VALVE SPRING

14771-107-020

$7.99

18

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

19

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.20

20

COTTER, VALVE (SANKO)

14781-107-003

$2.55

20

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

21

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

21

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

22

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

22

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

23

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

24

WASHER, SEALING (6MM)

90442-035-000

$2.21

25

WASHER A (6.5MM)

90481-250-000

$1.93

26

O-RING (5.8X1.9)

91305-323-000

$2.92

26

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

28

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
